14

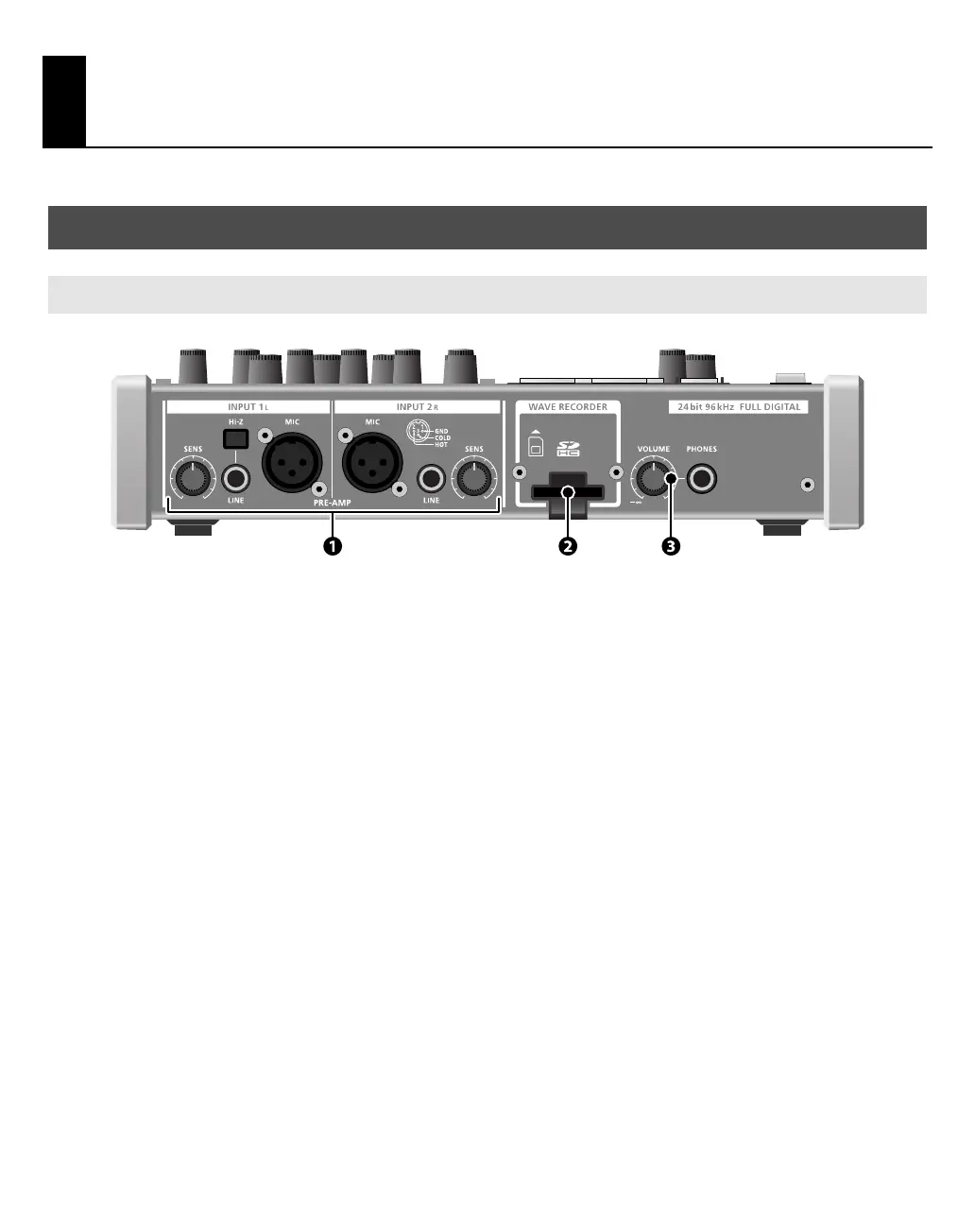

Panel Descriptions
fig.front01.eps
1.
INPUT 1L/INPUT 2R
Analog audio signal input jacks with a microphone preamp.
You can use the [SENS] knob to adjust the input level of
INPUT 1L/INPUT 2R. The level is displayed on the screen. (See
p. 18.)
These inputs correspond to input 1-2 in the USB audio
interface function.
MIC (XLR balanced input)
This input supports a 48 V phantom power supply and is
compatible with condenser microphones that support a
phantom power supply. If using a phantom-compatible
microphone, turn on the phantom power supply switch. (See
p. 16.)
LINE (1/4” TRS balanced input)
TRS balanced type line input terminal.
The INPUT 1L jack supports high-impedance input. If you
connect a guitar, turn on the [Hi-Z] button.
You can also connect an unbalanced plug to this input.
[Hi-Z] button
This switch changes the input impedance. Set this switch as
appropriate for the device that you’ve connected to the
INPUT 1L LINE jack.
If you’ve connected a guitar or bass, press this switch inward
to turn it on.
If nothing is connected, leave this switch in the off position.
The [Hi-Z] button affects only the LINE jack of INPUT 1L. It
does not change the impedance of the MIC jack for INPUT 1L,
nor of the LINE jack of INPUT 2R.
2.
SD card slot
Insert an SD card for the WAVE recorder here. For more
information, see p. 28.
3.
Headphone output
This output delivers the same signal as the MAIN output. To
adjust the headphone volume, use the [VOLUME] knob.
Input/output component
Front panel
VS-100_r_e.book 14 ページ ２００９年３月２５日 水曜日 午前９時３４分
