Connections and signal flow
fig.connectFS.eps
You can use footswitches to control the actions of the WAVE recorder and SONAR.
If you are using SONAR, you can assign functions to footswitches in the VS-100 properties page (See p. 24).

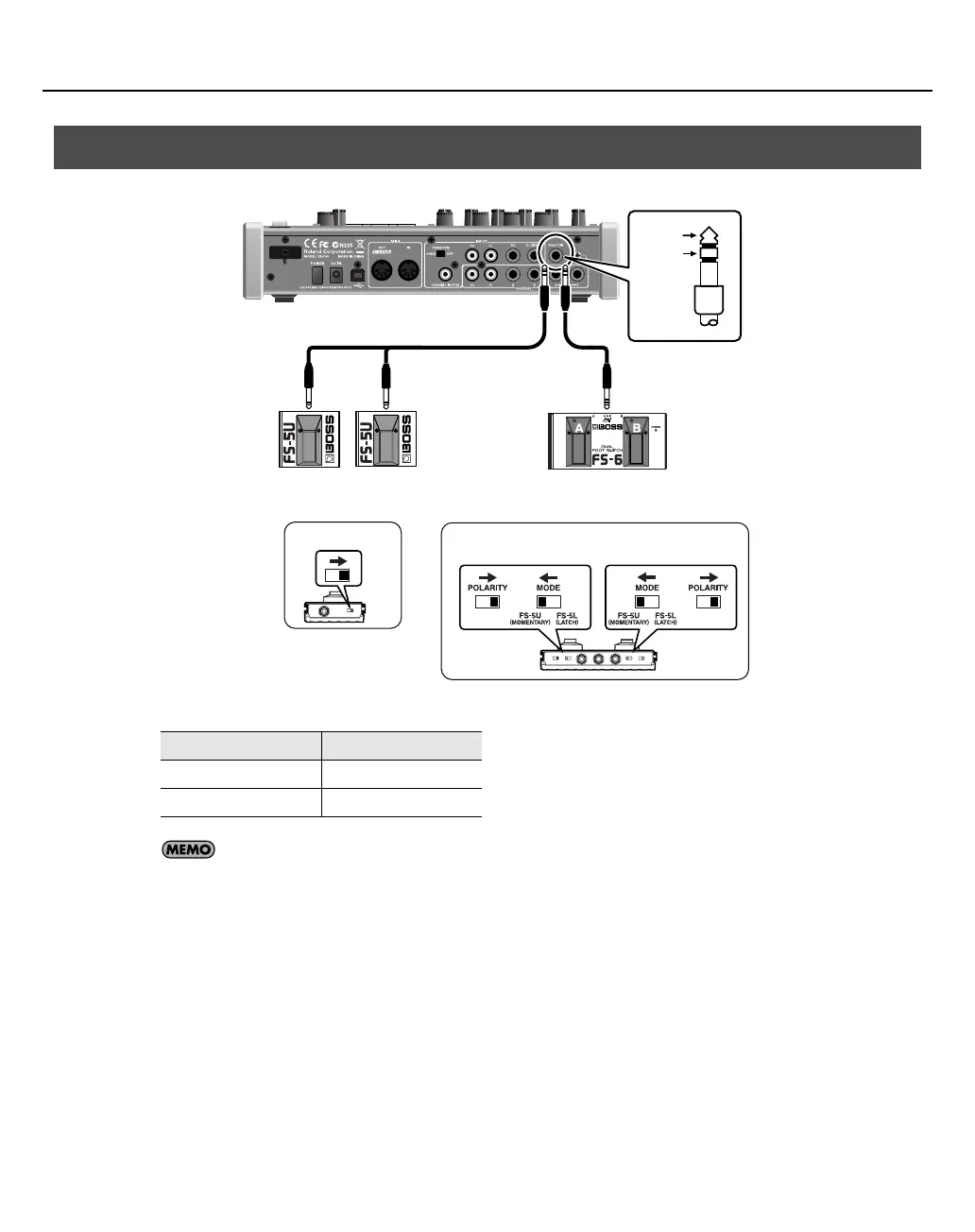

Connecting footswitches
Function
Footswitch 1
Playback
Footswitch 2 Recording
BA
Set the switches as shown bellow.
Polarity switch
White
(TIP)
Red
(RING)
Roland PCS-31
TRS 1/4” phone cable
(commercially available)
BOSS FS-5U
BOSS FS-6
Footswitch 1 Footswitch 2 Footswitch 2 Footswitch 1
TIP
RING
