Roland V-Synth GT Service Notes

14
May, 2007 V-SYNTH/GT

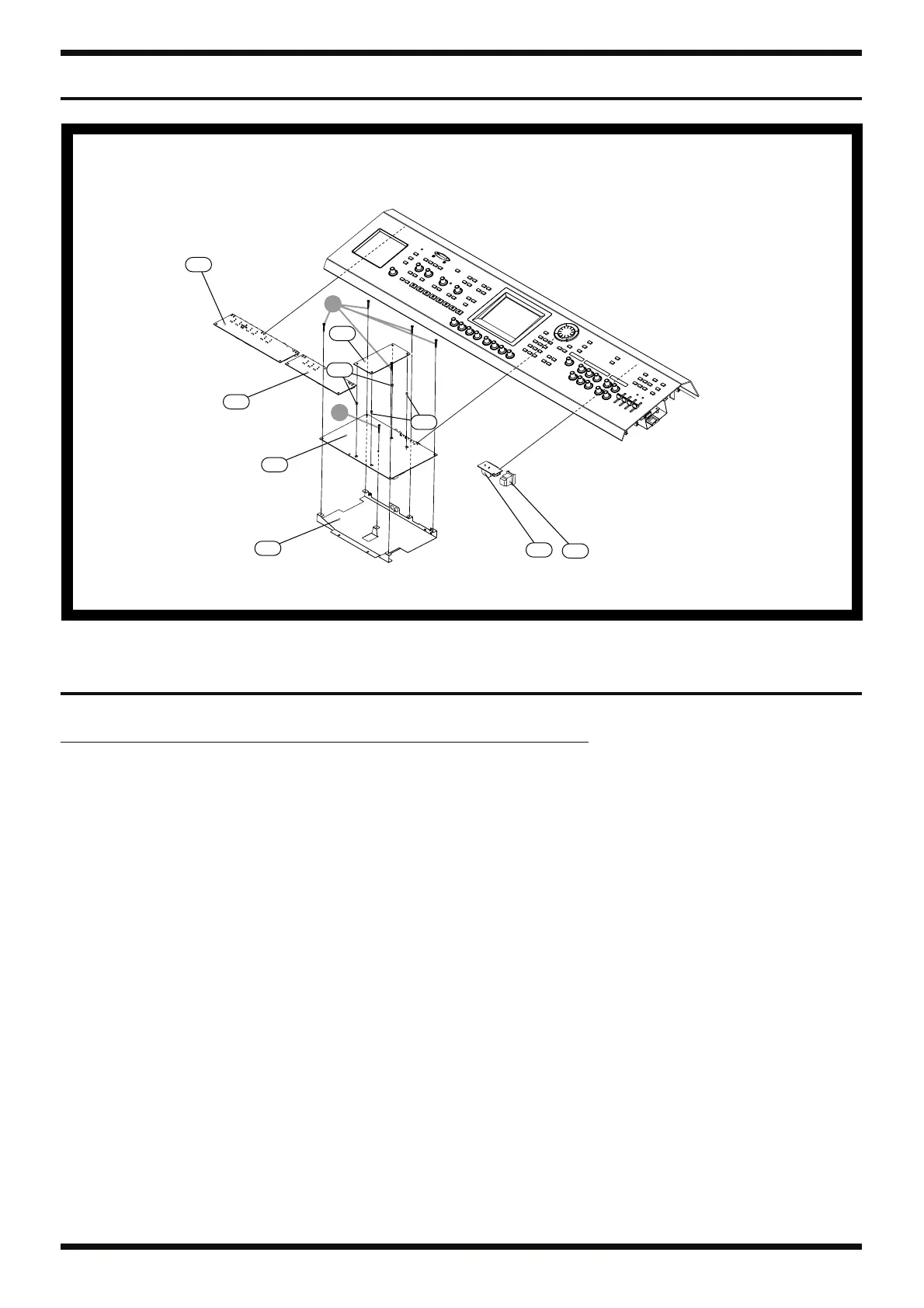

Exploded View (Fig.2)
fig.bunkai-fig2.eps
Exploded View (Fig.1) Parts List
Fig.2
a
a
2-1
2-2
2-3
2-5
2-4
2-6
2-7
2-8
2-9
No. Part Code Part Name Description Q’ty
2-1 73459756 JACK BOARD ASSY 1
2-2 73459767 MIDI BOARD ASSY 1
2-3 73459690 S-BOARD ASSY 1
2-4 73456990 MAIN BOARD ASSY 1
* MAIN BOARD ASSY includes the following parts.
2-8 04564045 SPACER KGES-6 2
2-9 04564067 SPACER PHD-06 2
2-5 04566389 MAIN PWB HOLDER 1
2-6 73459790 INLET BOARD ASSY 1
2-7 01786045 SW HOLDER AT-217K 1
01786012 SEESAW SWITCH JW-M11RKK 1
a 40011101 SCREW 3X8 BINDING TAPTITE B BZC 6
