Roland V-Synth GT Service Notes

May, 2007
V-SYNTH/GT

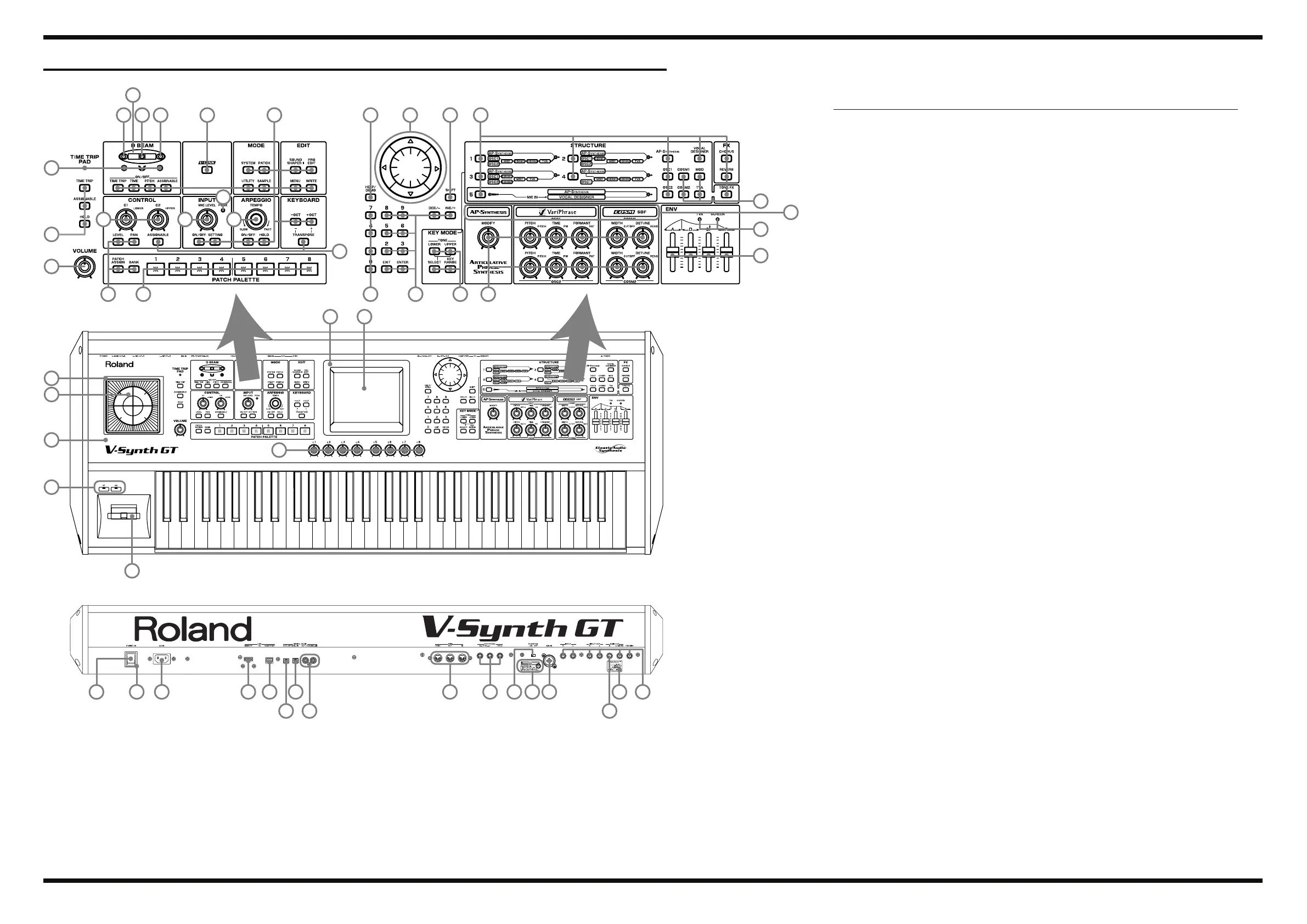

Location of Controls
fig.panel-top.eps@L
41
24
40
42
23
24
20 28
22
16
17
18 16
2219 3120
26
21
38
36
22
43
25 27
32 34
44
14 13 12 411 7 5 2 11 69
10 38
392032 33
30 29
37
35
15
No. Part Code Part Name Description Q’ty
1 00120434 JACK YKB21-5262 9
2 40679901 LABEL BALANCED LABEL 1
3 13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 1
4 02232412 XLR CONNECTOR NCJ6FI-H-0 1
5 40679445 LABEL XLR LABEL 1
6 03016956 SLIDE SWITCH SSSU121700 1
7 13429274 MIDI SOCKET YKF51-5041 1
8 03231812 RCA (PIN) YKC21-4173 1
9 03453389 IC (OPTICAL) GP1FM313RZOF 1
10 04125012 OPTICAL CONNECTOR GP1FMV51TK0F 1
11 02781189 USB CONNECTOR B TYPE FEMALE YKF45-0021 1
12 04459190 PLUG YKF45-0033N 1
13 00125023 AC INLET PWI1818 (INL-7) 10A/250V 3P 1
14 01786045 SW HOLDER AT-217K 1
15 01786012 SEESAW SWITCH JW-M11RKK 1
16 03126134 LED (INFRARED) TLN233 (F) 2
17 04344312 TWIN D-BEAM CONTROLLER ESCT. 1
18 04235490 PHOTO DI TPS703 (F) 1
19 03120890 D S-KEYTOP SX1H-B GRS 1
03893601 LED SLR343BCT3F 1
20 03120889 D S-KEYTOP SX2H-B GRS 13
02781634 TACT SWITCH SKRGAED010 26
02125167 LED (YELOW) SLI-343DCT32W 26
21 03893601 LED SLR343BCT3F 3
22 03120890 D S-KEYTOP SX1H-B GRS 6
02781634 TACT SWITCH SKRGAED010 6
02125167 LED (YELOW) SLI-343DCT32W 6
23 02891812 12M/M ROTARY POTENTIOMETER RK12L12C0C08 1
04124267 J R-KNOB SF-ELA BLK/SLV 1
24 01340234 POTENTIOMETER (9M/M) EVUF2K1B14 L=12.5 10KB 10
04124267 J R-KNOB SF-ELA BLK/SLV 10
25 04569256 POTENTIOMETER RK12L12C0C1G 1
04124267 J R-KNOB SF-ELA BLK/SLV 1
26 03230656 LED (RED) SLR-343VCT32 1
27 04347467 J R-KNOB ELA-ENC BLK/SLV 1
01905467 ROTARY ENCODER EVE GC1 F20 24B 1
28 01783956 N S-KEYTOP MD4H 2
02781634 TACT SWITCH SKRGAED010 8
02125167 LED (YELOW) SLI-343DCT32W 8
29 73456989 LCD ASSY 1
30 04566312 DISPLAY ESCT 1
31 04565478 KNOB ZE R-KNOB LF 1
04566445 KEYTOP ZE CURSOR KEY A 1
04566456 KEYTOP ZE CURSOR KEY B 1
01905467 ROTARY ENCODER EVE GC1 F20 24B 1
32 03120890 D S-KEYTOP SX1H-B GRS 5
02781634 TACT SWITCH SKRGAED010 5
33 03120889 D S-KEYTOP SX2H-B GRS 5
02781634 TACT SWITCHSKRGAED010 10
34 03126867 D S-KEYTOP SX1H-B CLR 12
02781634 TACT SWITCH SKRGAED010 12
02125167 LED (YELOW) SLI-343DCT32W 12
35 03126856 D S-KEYTOP SX2H-B CLR 2
02781634 TACT SWITCH SKRGAED010 4
02125167 LED (YELOW) SLI-343DCT32W 4
36 04566490 LED COVER 1
03893601 LED SLR343BCT3F 9
37 02894090 LED (ORNG) SLR-343DUT32 2
38 01561578 J S-KNOB S BLK/LCG 4
03122123 30M/M SLIDE POTENTIOMETER EWA NKE C15 B14 4
39 03679378 POTENTIOMETER EVUF3KFK1B14 11
04124267 J R-KNOB SF-ELA BLK/SLV 11
40 04566323 PAD ESCT 1
41 73459734 XY-PAD ASSY 1
42 22495278 DS-KEYTOP MD2H BLK (W/WINDOW) 1
02781634 TACT SWITCH SKRGAED010 2
02125167 LED (YELOW) SLI-343DCT32W 2
43 03234723 BENDER PB-H0204 1
44 04563678 TOP PANEL 1
54
