Roland V-Synth GT Service Notes

15
May, 2007 V-SYNTH/GT

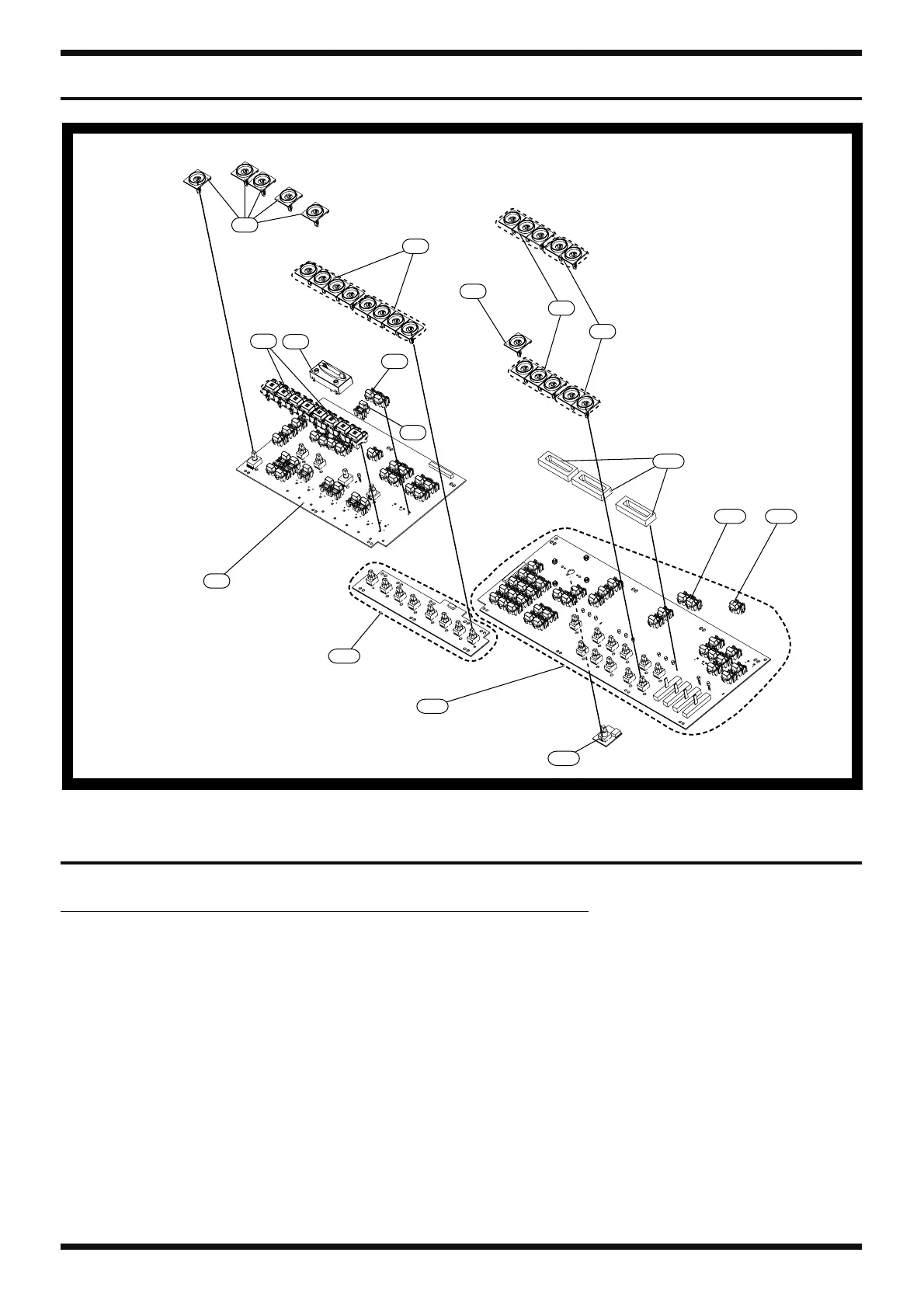

Exploded View (Fig.3)
fig.bunkai-fig3.eps
Exploded View (Fig.3) Parts List
Fig.3
3-1
3-6
3-7
3-8
3-9
3-2
3-5
3-2
3-4
3-3
3-10
3-11
3-13
3-153-14
3-12
3-6, 3-7 and 3-8 aren't
included in 3-1.
3-8, 3-9, 3-14 and 3-15
are included in 3-11.
No. Part Code Part Name Description Q’ty
3-1 73459801 PANEL-L BOARD ASSY 1
3-2 04566478 J R-ESCT SX1H SLV 6
3-3 04566489 J R-ESCT SX2H SLV 2
3-4 04566912 J R-ESCT SX3H SLV 2
3-5 04566923 J R-ESCT SX4H SLV 2
3-6 01783956 N S-KEYTOP MD4H 2
3-7 04344312 TWIN D-BEAM CONTROLLER ESCT. 1
3-8 03120889 D S-KEYTOP SX2H-B GRS 11
3-9 03120890 D S-KEYTOP SX1H-B GRS 6
3-10 73459823 VOLUME BOARD ASSY 1
3-11 73457101 PANEL-R KEYTOP ASSY 1
* PANEL-R KEYTOP ASSY includes the following parts.
3-8 03120889 D S-KEYTOP SX2H-B GRS 7
3-9 03120890 D S-KEYTOP SX1H-B GRS 6
3-14 03126856 D S-KEYTOP SX2H-B CLR 2
3-15 03126867 D S-KEYTOP SX1H-B CLR 12
3-12 04671345 ISOLATOR 3
3-13 73459812 EN BOARD ASSY 1
