Rotax OM-912 User Manual

Effectivity: 912 Serie
Edition 4 / Rev. 0
BRP-Rotax Page 1-17
November 01/2016
1.8) Engine components, engine views, cylinder designation
Side view

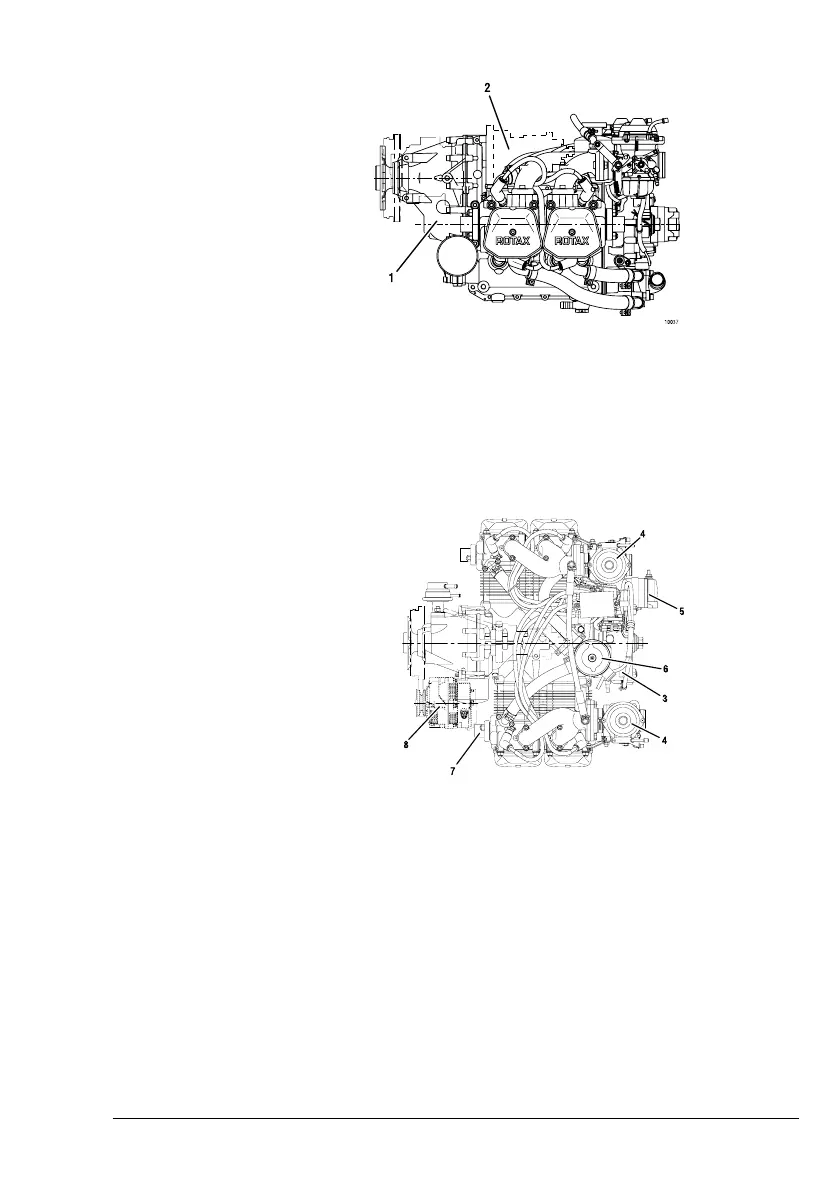

Figure .2: Side view engine
1
Propeller gear box
2
Vacuum pump or hydraulic
governor for constant speed
propeller
Top view
Cyl.1 Cyl.3
Cyl.2 Cyl.4
PTO
MAG
Figure .3: Top view engine
3
Engine serial number
4 CD carburetor
5 Electric starter 6
Expansion tank with excess
pressure valve
7
Exhaust flange
8 External alternator
