SERVICE OPERATION
-
WITH
ENGINE
ON
FRAME
1.
Removal
of
the
Tixning
cover
&ct,,'F
First place
a
tray under the engine to hold the oil which
will
escape when the cover
is
removed.
Remove the exhaust pipe and silencer. Remove ten screws from the
timing
cover,
taking
care not to lose the
S
washers, one for each screw.
<
NOTE:
When
the
timing
cover it
is
Important that the engine
is
gently
-
cranked.
This
will
preven? damage
07
the pumpworm or the pump spindle.
ersd
H
/~.44w~r4
en mallet
Draw
off the
timing
cover,
h$$&
it lightly
if
necessary
with
a
woo8
dlafrf",
While refitting the
timing
cover ensure that theJoint wasH%r
is
correctly located over the ofl
holes. using a
little grease (not compound)
to
hold
it
in
position.
xw
cy+
Ensure that
the
cork p ug
is
in
position
in
the hole
in
the pump worm.
If
the plug is damaged
it should be renewed to ensure oil flow to the big end bearing.
NOTE:
The Alter chamber should be !Wed with clean oil before the
timing
cover is refitted.
Ensure proper
functioning of oil pump by checking oil flow at rocker
ripe
union whenit&e
engine is
running
at
slow speed. Slacken the oil pipe banjo union to see the oil-flow and clamp
it
again properly. Wipe the oil that has oozed out
-

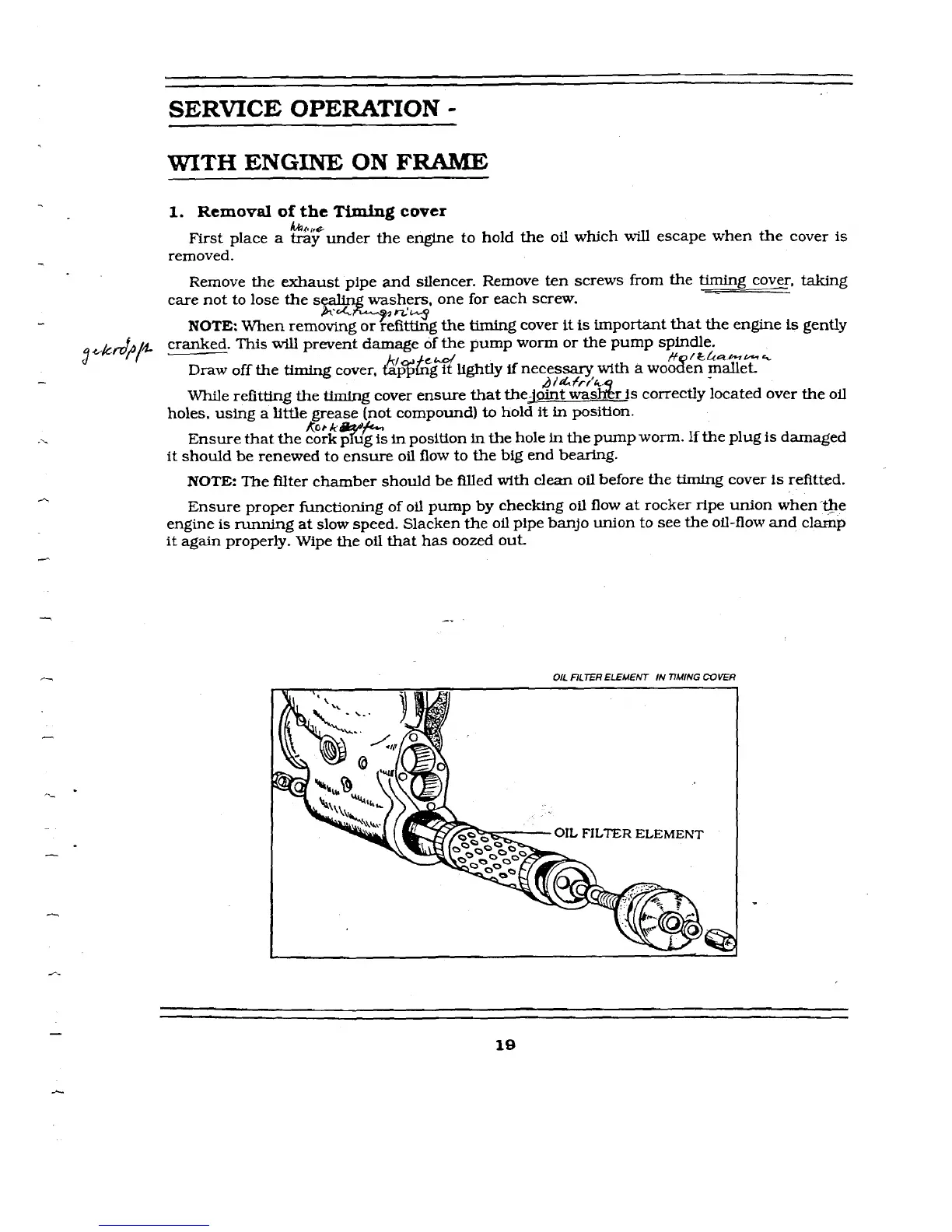

OIL
FILTER
ELEMENT
IN nMlNG
COVER
OIL
FILTER
ELEMENT
To Next Page
