RG-ES206GS-P Series Switches Hardware Installation and Reference Guide Appendix A — Connectors and Media
- 21 -
Appendix A — Connectors and Media
1000BASE-T/100BASE-TX/10BASE-T Port
The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto
MDI/MDIX Crossover.
Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (recommended) with a
maximum distance of 100 meters (328 feet).
The 1000BASE-T port requires all four pairs of wires to be connected for data transmission. Figure A-1 shows
the connection of twisted pairs used by a 1000BASE-T port.

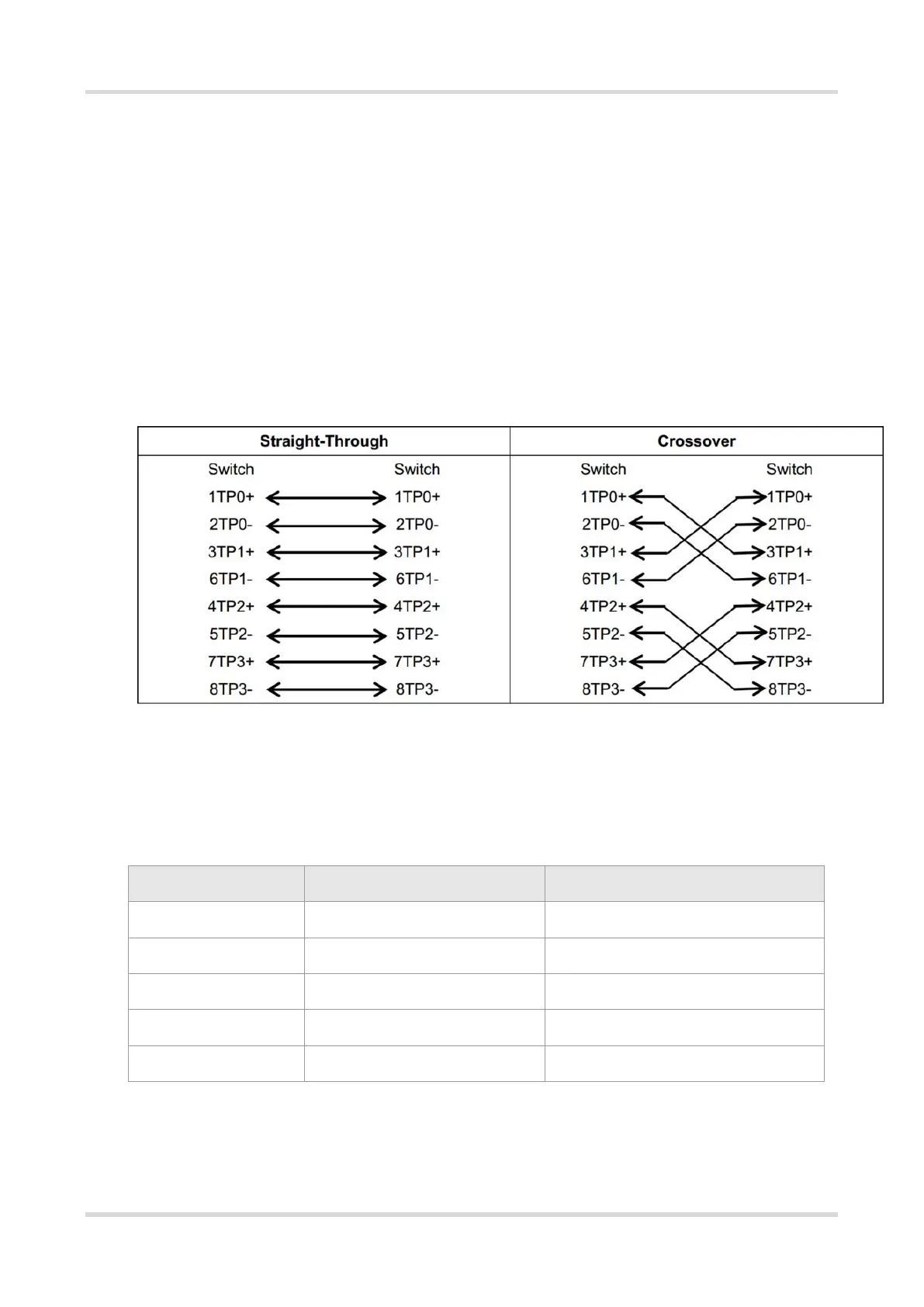

Figure A-1 Connections of Four Twisted Pairs for the 1000BASE-T Port
100BASE-TX/10BASE-T can be interconnected using cables of the preceding specifications. For 10 Mbps, the
100BASE-TX/10BASE-T port can be connected using 100-ohm Category 3, Category 4, and Category 5 cables;
for 100 Mbps, the 100BASE-TX/10BASE-T port can be connected using 100-ohm Category 5 cables with a
maximum connection distance of 100 meters. The following table shows 100BASE-TX/10BASE-T pin
assignments.
Figure A-2 Pin Assignments for the 100BASE-TX/10BASE-T Port
Pin
Socket
Plug
1
Input Receive Data+
Output Transmit Data+
2
Input Receive Data–
Output Transmit Data–
3
Output Transmit Data+
Input Receive Data+
6
Output Transmit Data–
Input Receive Data–
4, 5, 7, 8
Not Used
Not Used
Figure A-3 shows feasible connections of straight-through and crossover twisted-pair cables for
100BASE-TX/10BASE-T.
Figure A-3 Twisted Pair Connections for the 100BASE-TX/10BASE-T Port
