Ruijie RG-S2915-L Series User Manual

Hardware Installation and Reference Guide Verifying Operating Status
37
4 Verifying Operating Status
4.1 Setting up the Configuration Environment
Setting up the Environment
Connect a PC to the console port of the switch by using an Ethernet cable.

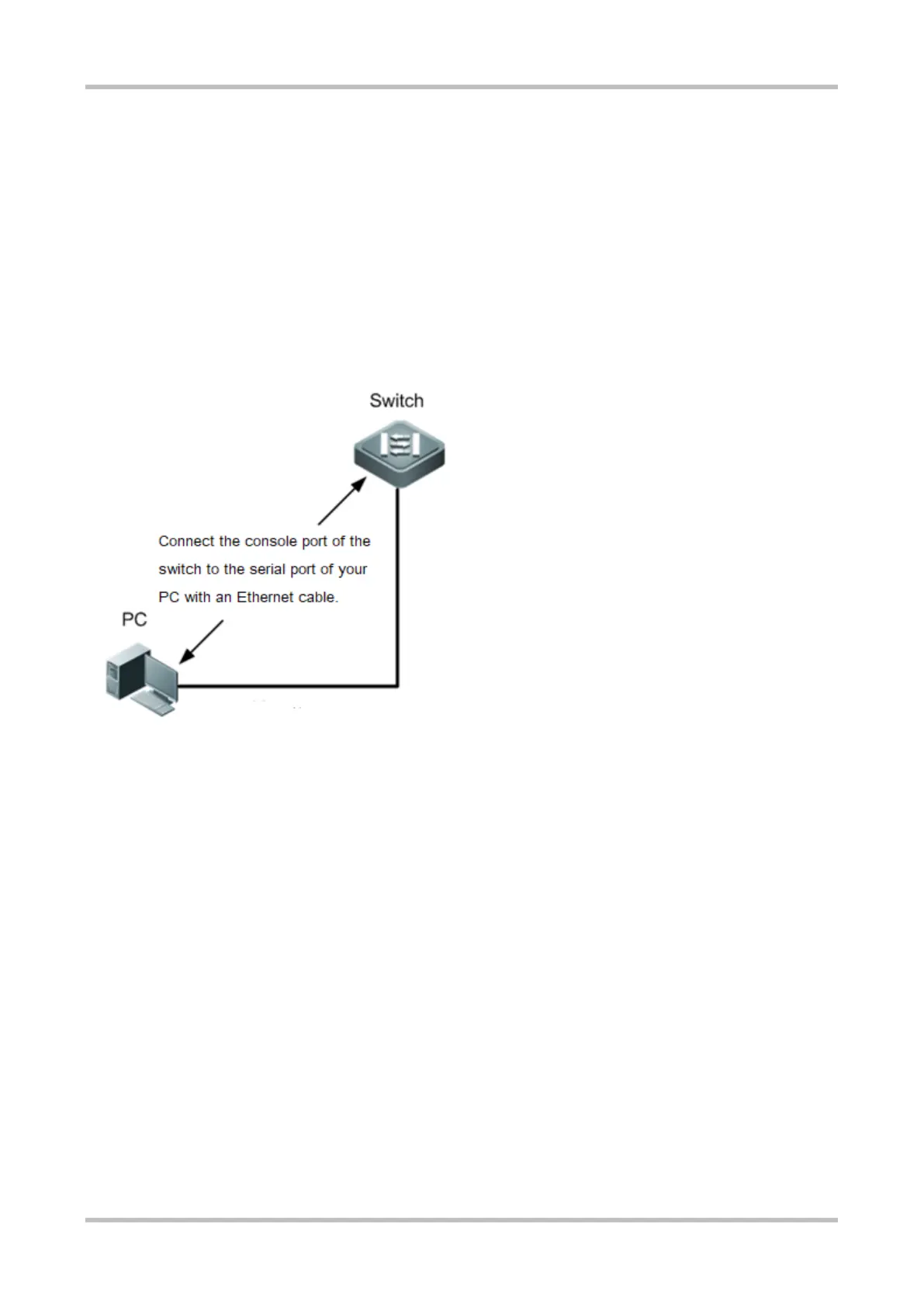

Figure 4-1 Setting up the Environment
Connecting the Cable
1. Plug the DB-9 connector of the cable into the serial port of the PC.
2. Plug the RJ-45 connector of the cable to the console port of the switch.
Setting HyperTerminal Parameters
1. Start the PC and run the terminal simulation program on your PC, such as Terminal on Windows 3.1 or HyperTerminal on
Windows 95/98/NT/2000/XP.
2. Set terminal parameters. The parameters are as follows: baud rate 9600, data bit 8, parity check none, stop bit 1, and flow control
as none.
Follow the steps below to set the parameters:
1. Choose Setup > Programs > Attachment > Communication > HyperTerminal.
2. Choose Cancel, and a window appears as shown in Figure 4-2.
Figure 4-2
