R5 Series
- 32 -

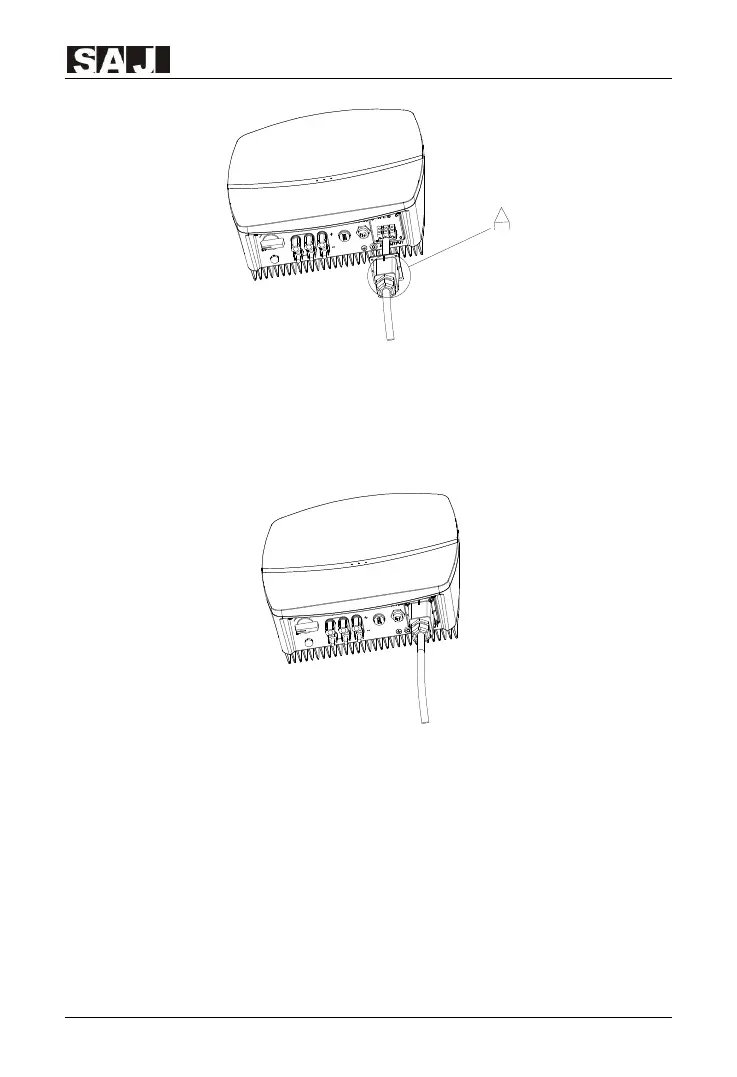

Fig. 5.9 Connecting the cable
② After fixing the cover at the AC output wire terminal with screws, tighten up
the AC waterproof nut.
Fig. 5.10 Tighten up AC interface protective cover and the locker
