Samsung AQ09NSA User Manual

4-2 Outdoor Unit
Samsung Electronics 4-4
No Parts Procedure Remark

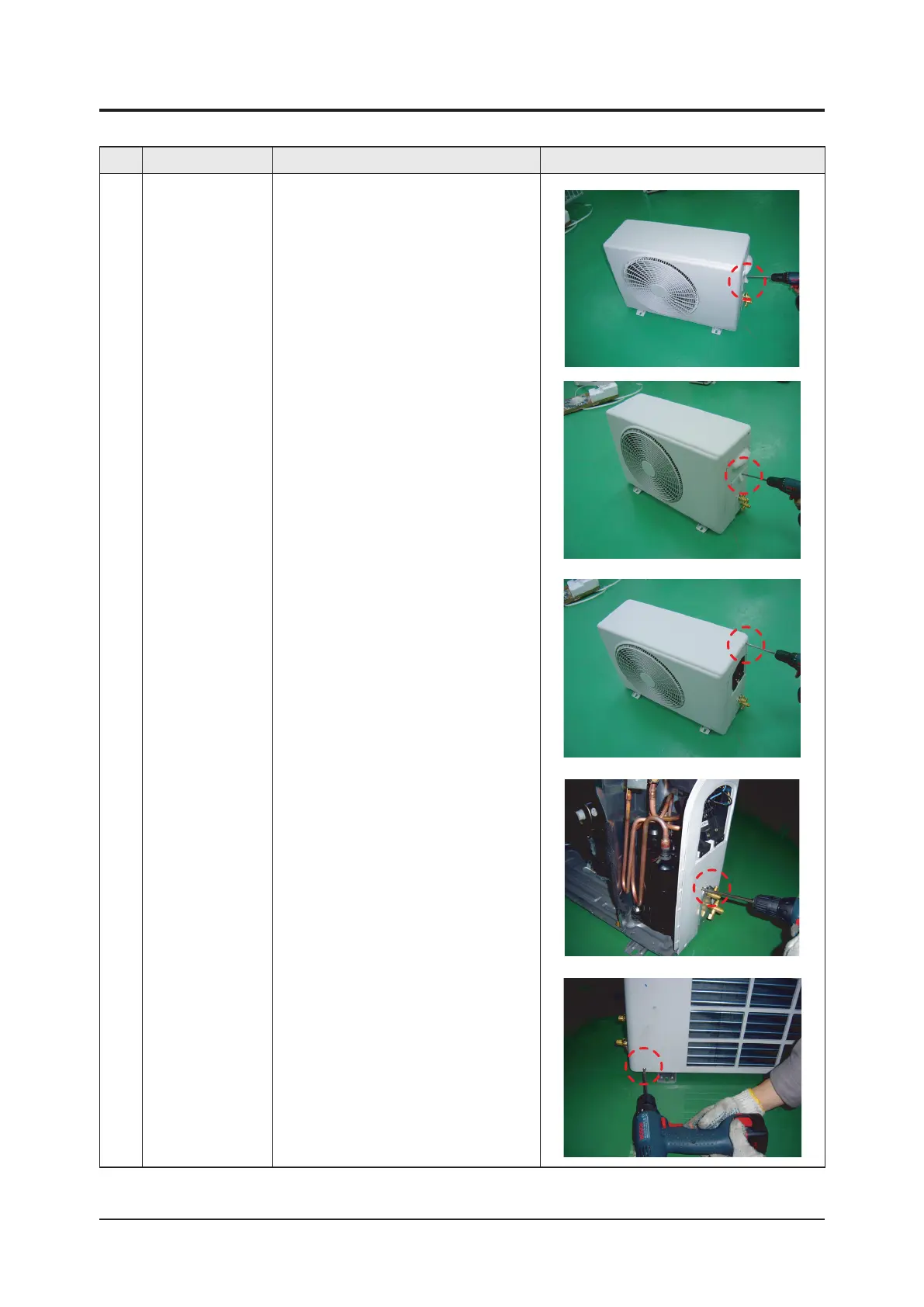

1 Common Work 1) Loosen 2 fixing screws and separate the
Cover Terminal.
2) Loosen 2 fixing screws and separate the
Cover Control.
3) Separate the connection wire from the
Terminal Block.
4) Loosen 6 fixing screws and separate the
Cabinet Front.
5) Loosen 1 fixing screw of Ass’y E-part.
6) Loosen 12 fixing screws and separate the
Cabinet-Side
AQ09NSAX/AQ09NSBX/AQ09FDX
