Samsung BD-P1580 User Manual

26_ connections
connections

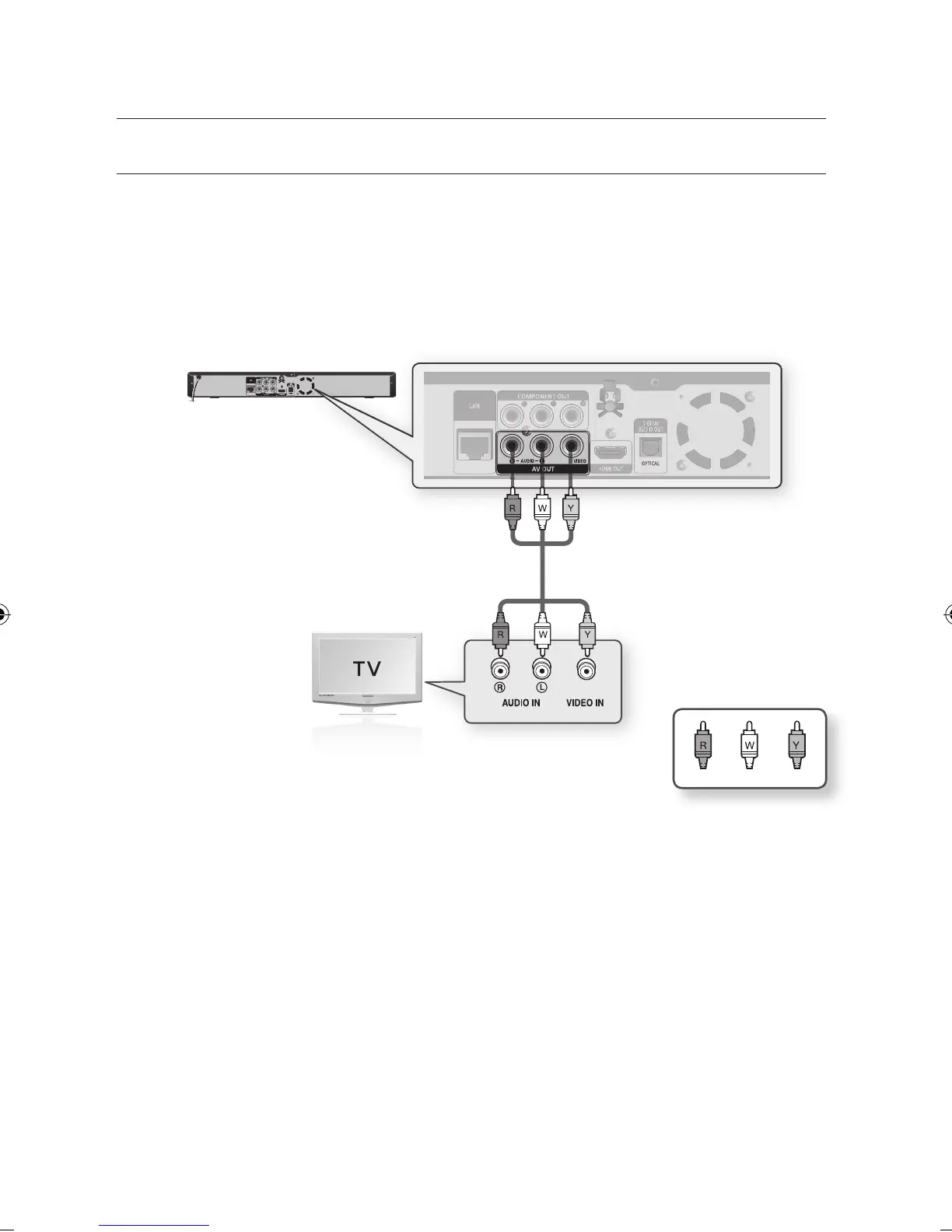

CONNECTING TO A TV (VIDEO) (GOOD QUALITY)
Using video/audio cables, connect the VIDEO (yellow) / AUDIO (red and white) OUT terminals on the rear of
the Blu-ray Disc Player to the VIDEO (yellow) / AUDIO (red and white) IN terminals of your TV.
Turn on the Blu-ray Disc Player and TV.
Press the input selector on your TV remote control until the Video signal from the Blu-ray Disc Player appears
on the TV screen.
If you have set the remote control to operate your TV (see pages 20~21), press the TV SOURCE button on
the remote control and select VIDEO as the external source of the TV.
Noise may be generated if the audio cable is placed too close to the power cable.
If you want to connect to an Amplifi er, please refer to the Amplifi er connection pages. (See pages 27~29)
The number and position of terminals may vary depending on your TV set. Please refer to the user's manual
of your TV.
If there is only one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the
Blu-ray Disc Player.
The VIDEO source is always output in 576i/480i resolution regardless of the resolution set in the SETUP
menu. (See page 42)
1.
2.
3.
•
M





WhiteRed Yellow
01815A-BD-P1580-XEU-ENG.indb 26 2009-04-08 오후 4:47:41

Samsung BD-P1580 Specifications

General

Depth	199 mm
Width	430 mm
Height	54 mm
Weight	2200 g
Full HD	Yes
HDMI version	1.3
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Disc types supported	BD-R, BD-RE, CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	Blu-Ray video, CD audio
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Card reader integrated	No
USB 2.0 ports quantity	1
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX, H.264, MPEG2, VC-1
Operating temperature (T-T)	5 - 35 °C
Power consumption (standby)	0.27 W
Power consumption (typical)	30 W
Operating relative humidity (H-H)	10 - 75 %
Consumer Electronics Control (CEC)	Anynet+
Audio output channels	2.0 channels
Deep color support	-
