Samsung BD-P1580 User Manual

28_ connections
connections
CONNECTING TO AN AUDIO SYSTEM
(DOLBY DIGITAL, DTS AMPLIFIER)

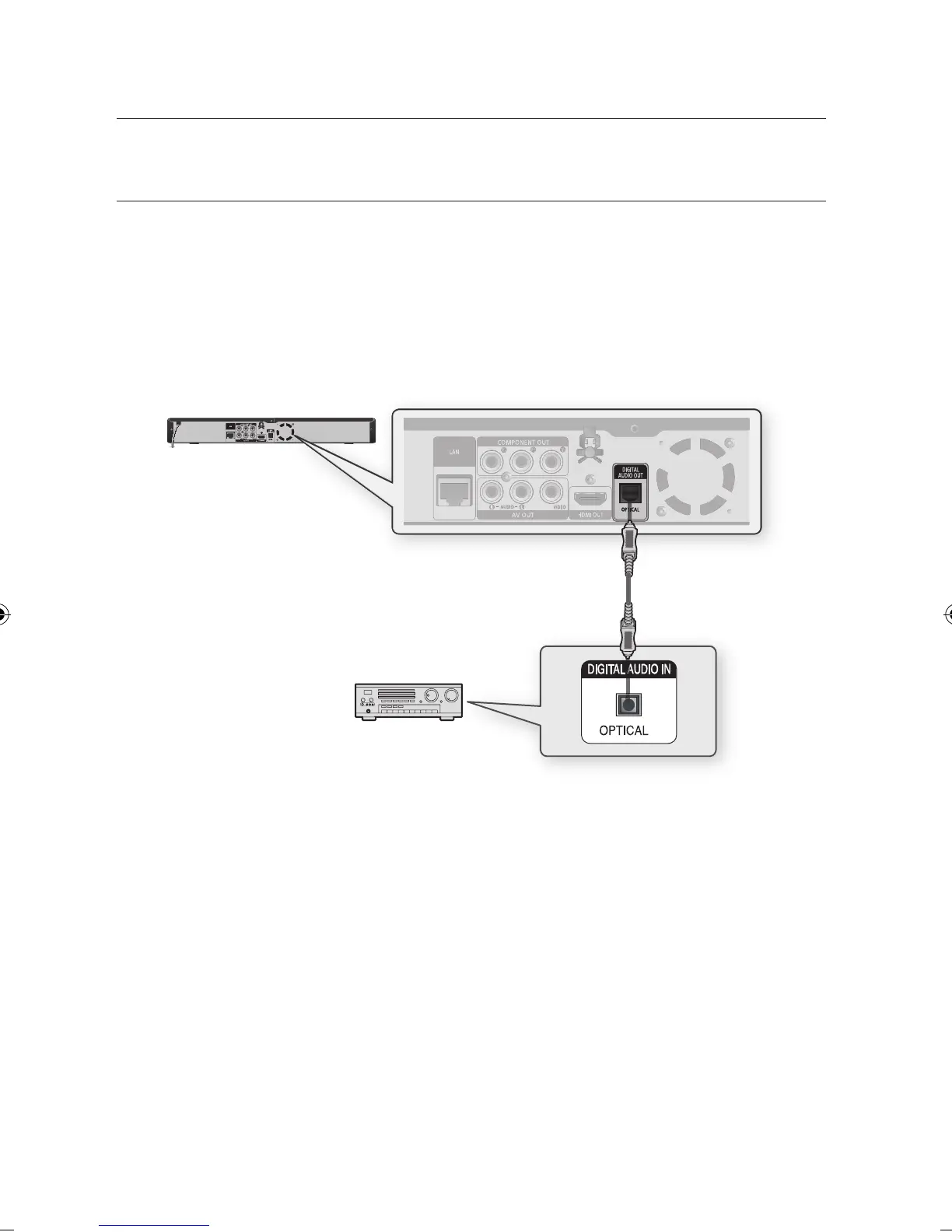

Using an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the
Blu-ray Disc Player to the DIGITAL AUDIO IN (OPTICAL) terminal of your Amplifier.
Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the
Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminals of your TV. (see pages 22~26)
Turn on the Blu-ray Disc Player, TV, and Amplifier.
Press the input select button of the Amplifier to select the external input in order to hear sound from
the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.
Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the
speakers and your ears.
Please set the audio in the menu screen according to the Amplifier. (See pages 37~39)
The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of your
Amplifier.
When using this connection, discs with LPCM audio soundtracks will only be heard over the front two
channels.
1.
2.
3.
4.
M




01815A-BD-P1580-XEU-ENG.indb 28 2009-04-08 오후 4:47:44

Samsung BD-P1580 Specifications

General

Depth	199 mm
Width	430 mm
Height	54 mm
Weight	2200 g
Full HD	Yes
HDMI version	1.3
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Disc types supported	BD-R, BD-RE, CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	Blu-Ray video, CD audio
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Card reader integrated	No
USB 2.0 ports quantity	1
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX, H.264, MPEG2, VC-1
Operating temperature (T-T)	5 - 35 °C
Power consumption (standby)	0.27 W
Power consumption (typical)	30 W
Operating relative humidity (H-H)	10 - 75 %
Consumer Electronics Control (CEC)	Anynet+
Audio output channels	2.0 channels
Deep color support	-
