Samsung BD-P1580 User Manual

English _27
● CONNECTIONS

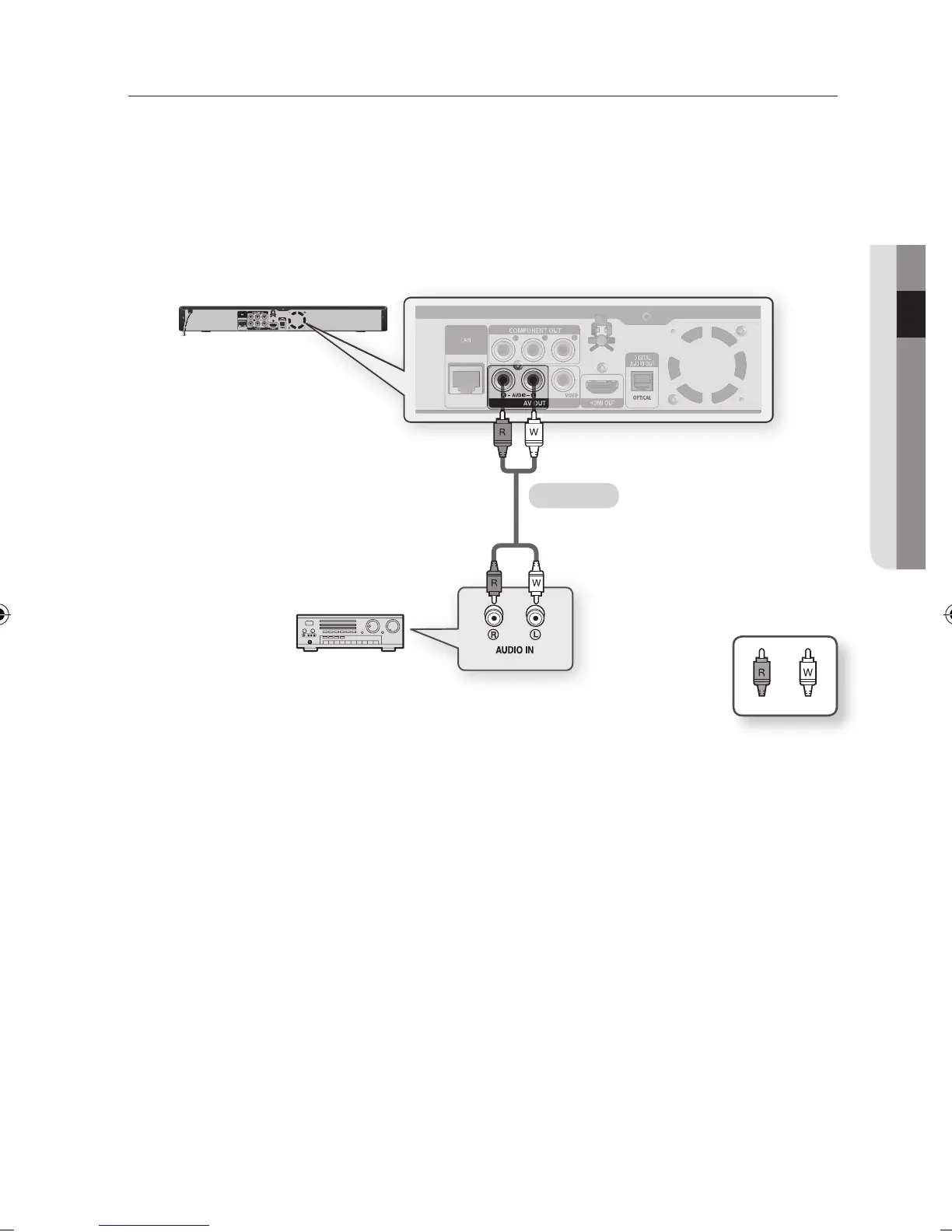

CONNECTING TO AN AUDIO SYSTEM (2 CHANNEL AMPLIFIER)
Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the Blu-ray Disc
Player to the AUDIO (red and white) IN terminals of your Amplifi er.
Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the
Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 22~26)
Turn on the Blu-ray Disc Player, TV and Amplifi er.
Press the input select button of the Amplifi er to select the external input in order to hear sound from
the Blu-ray Disc Player. Refer to your Amplifi er's user manual to set the Amplifi er's audio input.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents
issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master
Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
1.
2.
3.
4.
M


WhiteRed
Audio Cable
2-Channel stereo amp
01815A-BD-P1580-XEU-ENG.indb 27 2009-04-08 오후 4:47:43

Samsung BD-P1580 Specifications

General

Depth	199 mm
Width	430 mm
Height	54 mm
Weight	2200 g
Full HD	Yes
HDMI version	1.3
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Disc types supported	BD-R, BD-RE, CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	Blu-Ray video, CD audio
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Card reader integrated	No
USB 2.0 ports quantity	1
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX, H.264, MPEG2, VC-1
Operating temperature (T-T)	5 - 35 °C
Power consumption (standby)	0.27 W
Power consumption (typical)	30 W
Operating relative humidity (H-H)	10 - 75 %
Consumer Electronics Control (CEC)	Anynet+
Audio output channels	2.0 channels
Deep color support	-
