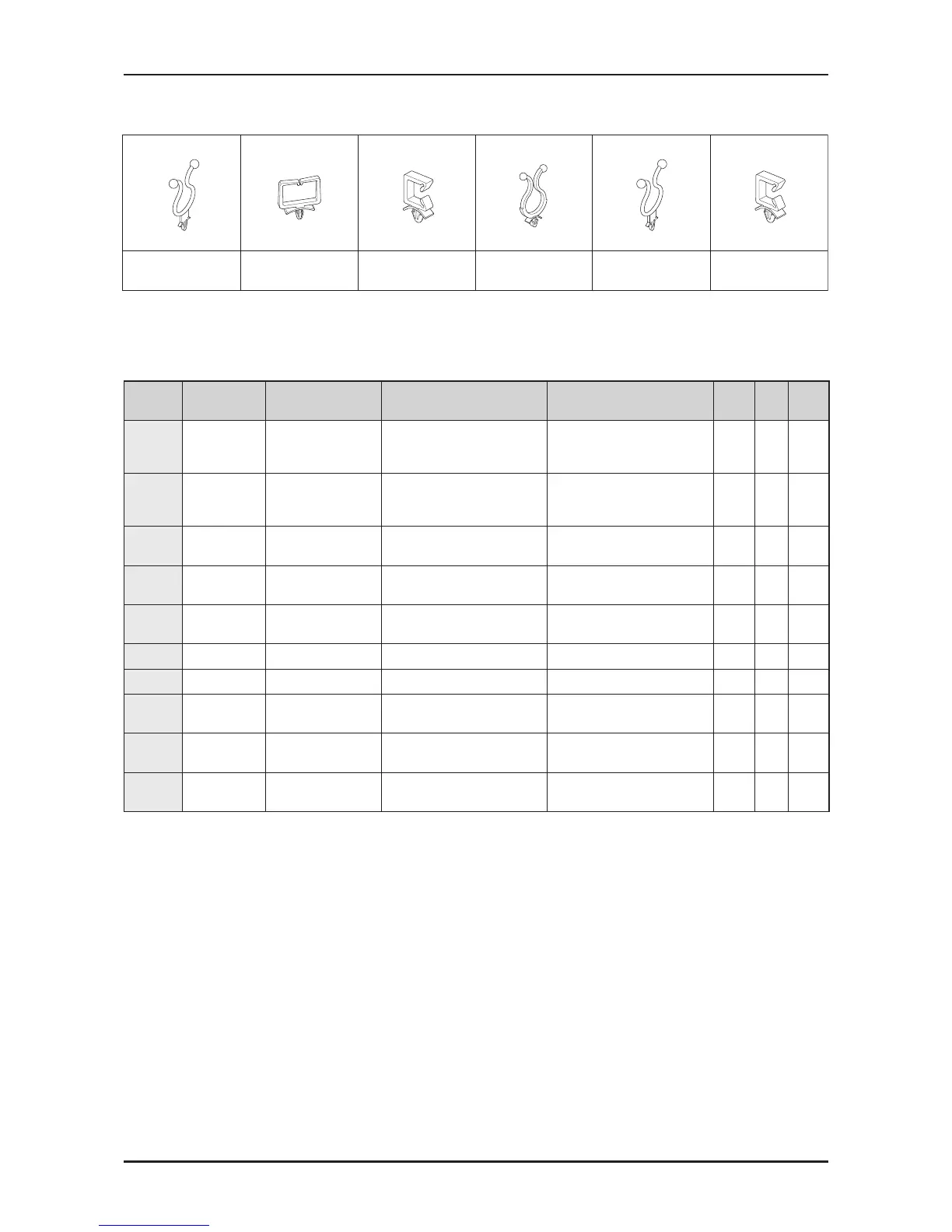

64 _ Exploded views and Parts list

5-8. SMALL PARTS

MODEL CODE: DV231AEW/XAA

Service Bom (SA:SERVICEAVAILABLE,SNA:SERVICENOTAVAILABLE)

Drawing

No.

Code No. Description Specication Install. Point QTY Un

SA/

SNA

1 6046-000310 STAND OFF ID11.5,

L2,NTR,NYLON66,DAWH-

3NA

DRUM-FRONT 3 PC SNA

1 6046-000310 STAND OFF ID11.5,

L2,NTR,NYLON66,DAWH-

3NA

FRAME-FRONT(U) 1 PC SNA

2 DC61-60074A HOLDER-WIRE PA,NTR,NYLON#66(DAWS-

6NB)

FRAME(REAR TOP) 1 PC SA

2 DC61-60074A HOLDER-WIRE PA,NTR,NYLON#66(DAWS-

6NB)

HOLDER-PCB 1 PC SA

3 DC61-00553B HOLDER-WIRE

SADDLE

PA,NTR,DAWS-3NE ASSY DRUM FRONT 1 PC SA

4 DC61-40081A HOLDER-WIRE DAWH-2NC,PA,NTR(PI18.5) BOTTOM+FRAME 3 PC SA

4 DC61-40081A HOLDER-WIRE DAWH-2NC,PA,NTR(PI18.5) PLATE-BOTTOM 5 PC SA

5 6502-000127 CABLE CLAMP DAWH-18NB,ID15,-

,NYLON66,NTR

DRUM-BACK 1 PC SNA

5 6502-000127 CABLE CLAMP DAWH-18NB,ID15,-

,NYLON66,NTR

HOLDER-PCB 1 PC SNA

6 DC61-00553C HOLDER-WIRE

SADDLE

-,NYLON66,-,-,-,NTR,DAWS-

2NA

DOOR-S/W 1 PC SA
