English _29
● INSTALLATION & CONNECTION

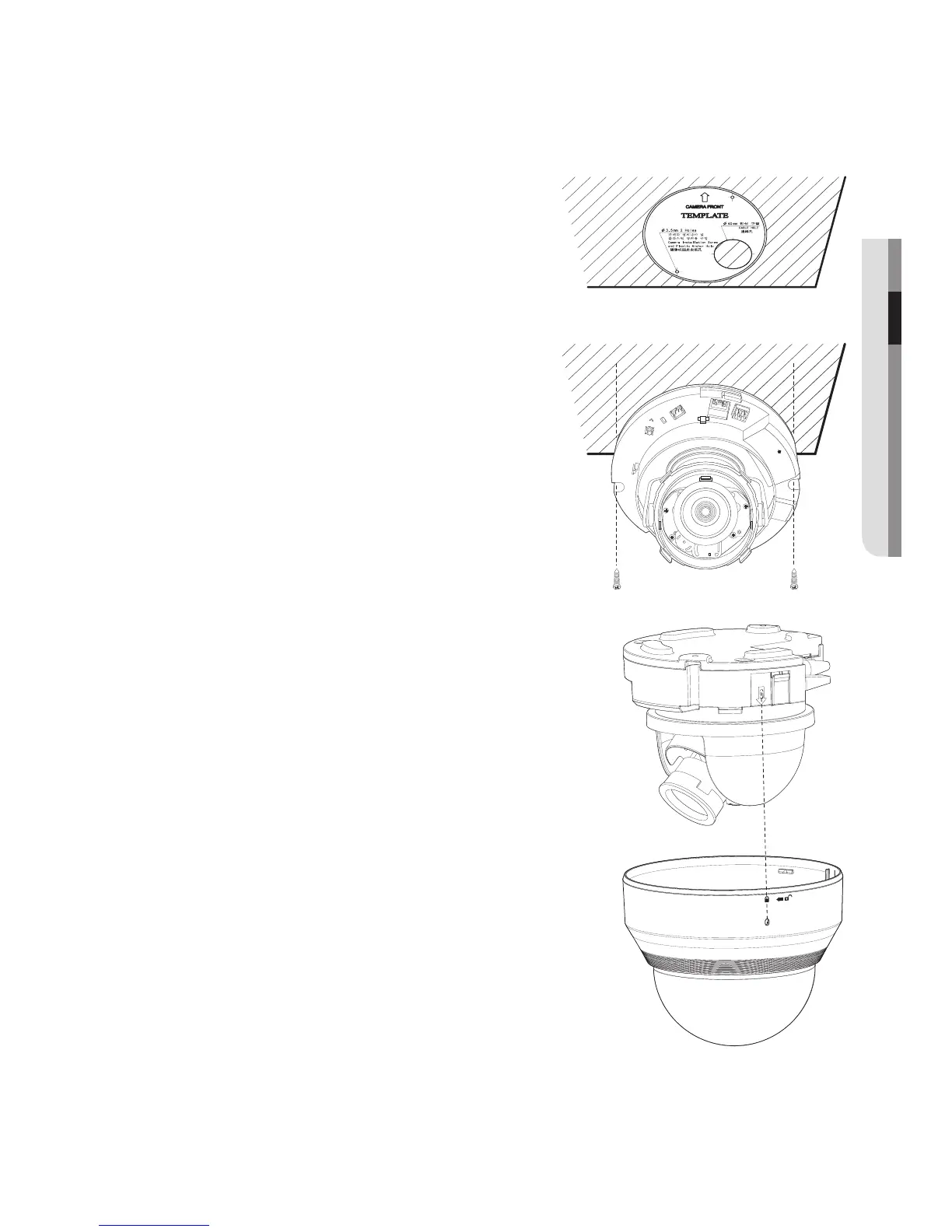

Installation
1. Attach the installation template to the
selected area and punch 3 holes as shown in
the figure.
2. Use the 2 supplied screws to fix the camera
to the 2 punched holes.
`
Set the <FRONT TOP> mark imprinted on the
camera to face the direction of camera monitoring.
3. Connect the camera internal terminal with the
corresponding cable.
4.
Refer to “Adjusting the monitoring direction
for the camera” to adjust the lens in a desired
direction. (page 30)
5. Fasten the dome case (dome cover + camera
case) to the main body as shown in the figure.
J
`
Pay attention to the direction for assembly.
FRONT
TOP
DC 12V
1 2 3
1. ALARM OUT
2. ALARM IN
3. GND
VI DE O
RE SE T
T
F
W
N
AF
+
-
