Installation
Connecting to Component Video and RGB ( Scart) Equipment
Note:
 •WhentheAUDIOOUTisplugged-in,theprojector'sbuilt-inspeakerisnotavailable.
 •Seepage72fororderingoptionalcables.

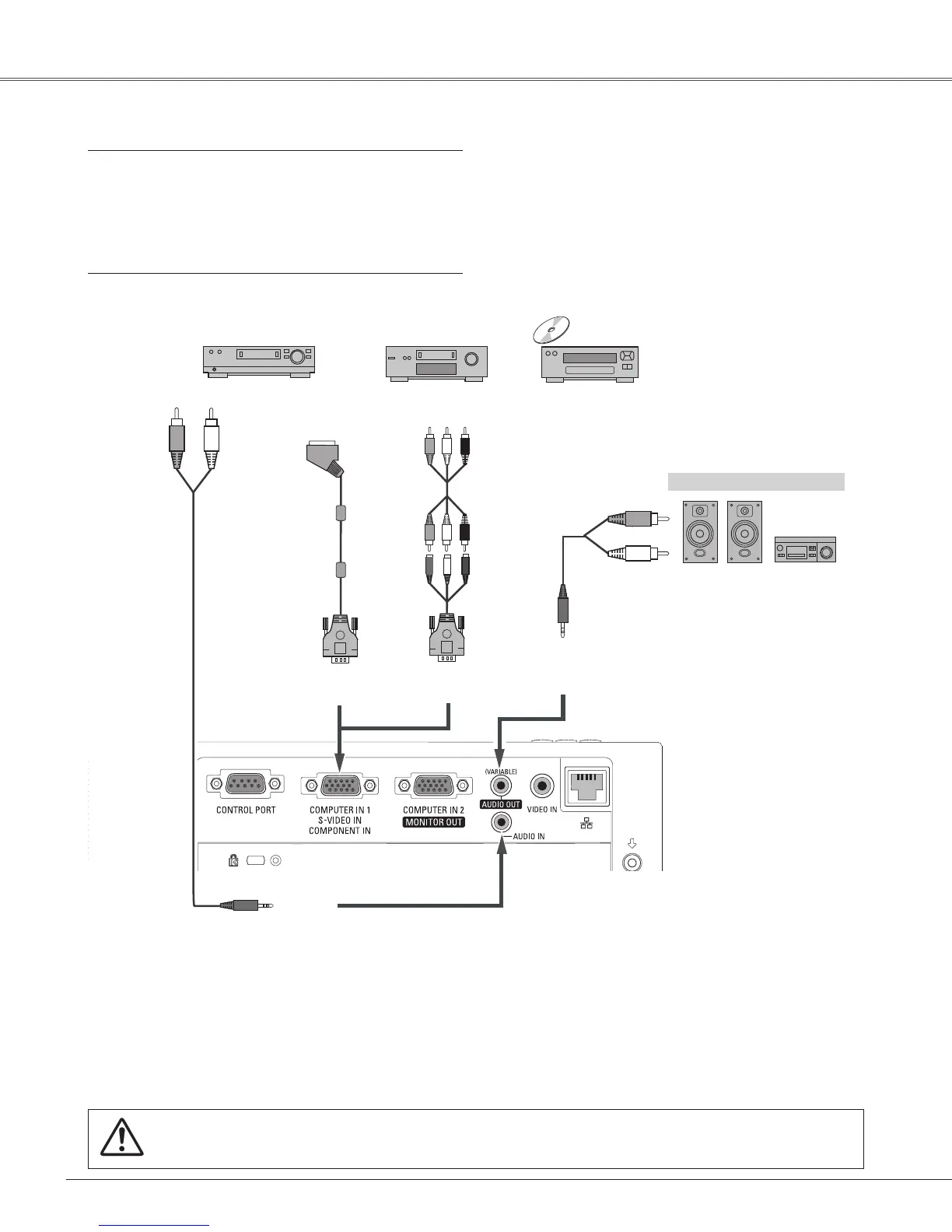

Cables used for connection
•AudioCables(MiniPlug:stereo)
•Scart-VGACable
•ComponentCable
•Component-VGACable
(Cables are not supplied with this projector.)
External Audio Equipment
AUDIO IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Audio Output
RGB Scart
21-pin Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 1/ S-VIDEO IN / COMPONENT IN
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting
cables.
