23

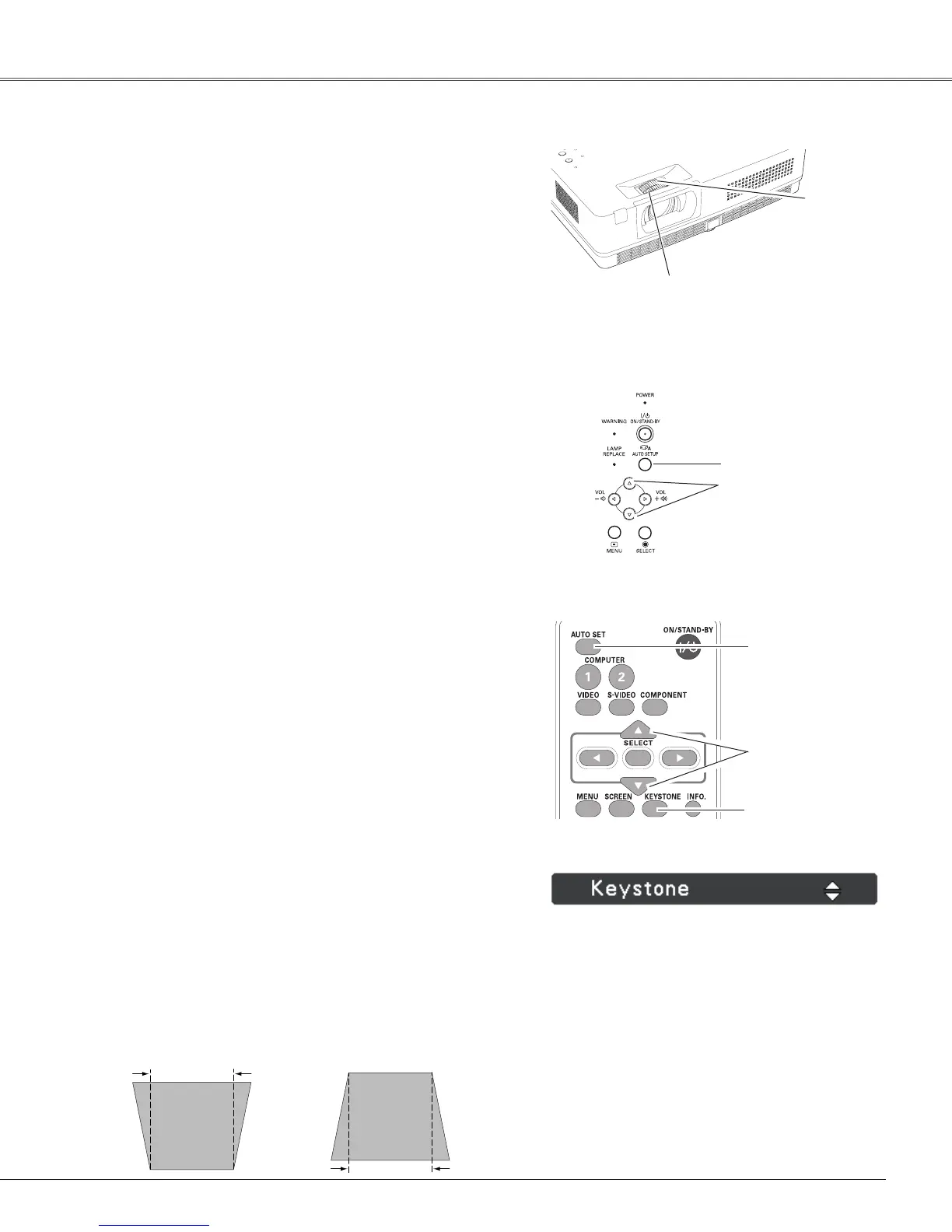

Basic Operation
Rotate the Zoom Ring to zoom in and out.
Rotate the Focus Ring to adjust the focus of the image.
Zoom and Focus Adjustment
If a projected picture still has keystone distortion after
pressing the AUTO SETUP button on the top control or the
AUTO SET button on the remote control, correct the image
manually as follows:
Press the KEYSTONE button on the remote control. The
Keystone dialog box appears. Use the Point ▲▼ buttons to
correct keystone distortion. The keystone adjustment can be
stored (see page 45).
Reduce the upper width
with the Point ▲ button.
Reduce the lower width
with the Point ▼ button.
•Thewhitearrowsindicatethatthereisno
correction.
•Aredarrowindicatesthedirectionofcorrection.
•Anarrowdisappearsatthemaximumcorrection.
•IfyoupresstheKEYSTONEbuttononthe
remote control once more while the keystone
dialog box is being displayed, the keystone
adjustment will be canceled.
•Theadjustablerangeislimiteddependingonthe
input signal.
Keystone Correction
Remote Control
Auto setup function is provided to automatically execute the
setting of Auto setup (includes Input search, Auto PC adj.
and Auto Keystone functions) in the setting menu by just
pressing the AUTO SETUP button on the top control or the
AUTO SET button on the remote control. Refer to page 44
for the setting of the Auto setup function.
Notes:
 •AutoKeystonecorrectsverticaldistortiononly;itdoes
not correct horizontal distortion.
 •AutoKeystonecannotworkwhenCeilingfeatureisset
to On in the Setting menu (p.49).
 •Perfectcorrectionoftheimagedistortioncannotbe
ensured with the Auto setup function. If the distortion
cannot be corrected properly by pressing the AUTO
SETUP or AUTO SET button, adjust manually by
pressing the KEYSTONE button on the remote control
or selecting Keystone in the Setting menu (p.45).
 •Fine sync, Total dots, Horizontal and Vertical
position of some computers cannot be fully adjusted
with the Auto PC Adjustment function. When the image
is not provided properly with this operation, manual
adjustments are required (pp.30-31).
AUTO SET button
Auto Setup Function
POINT ▲▼ buttons
KEYSTONE button
Top Control
AUTO SETUP button
POINT ▲▼buttons
Zoom Ring
Focus Ring
