Sanyo PLV-Z5 User Manual

15
Installation

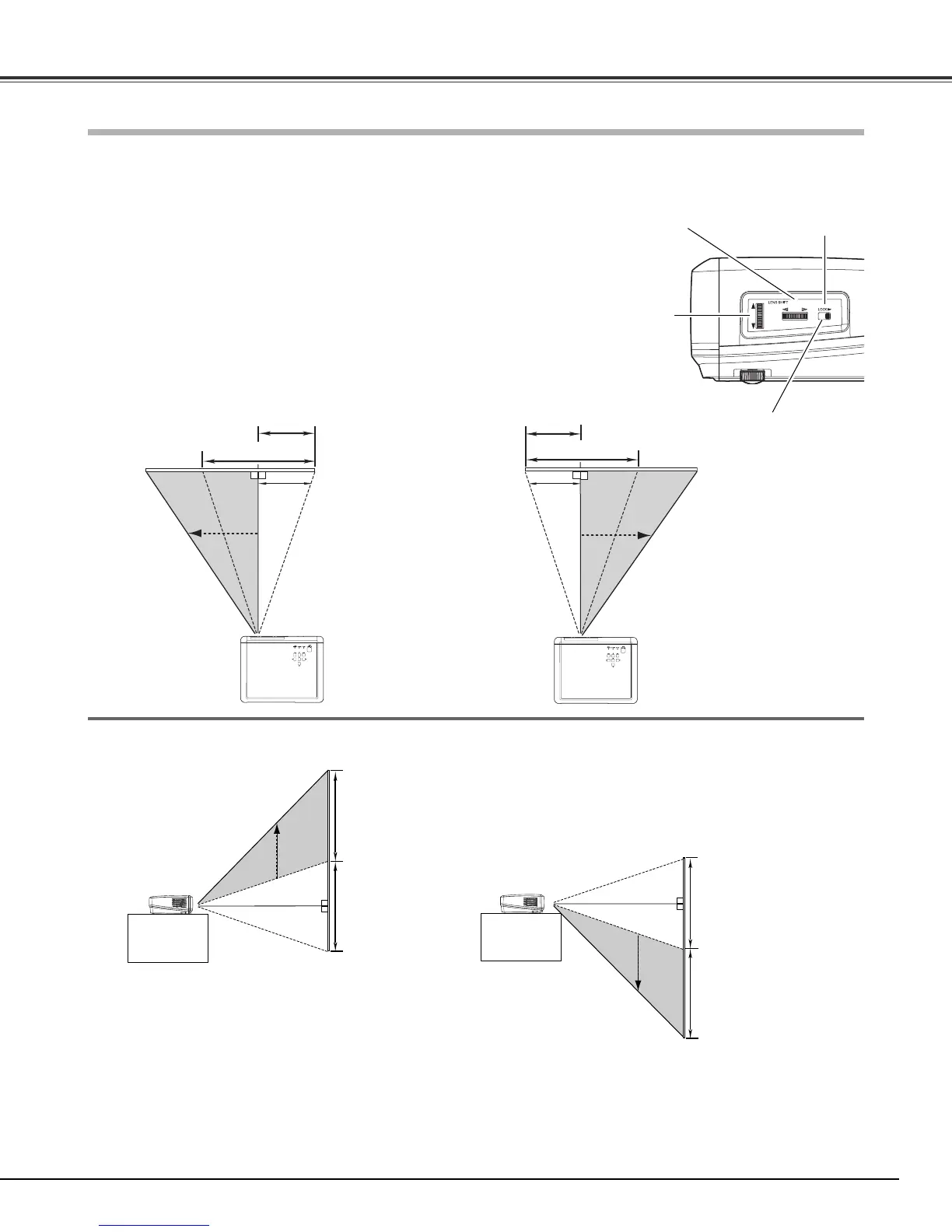

The projection lens can be moved up and down or left and right manually with the Lens Shift Rings, enabling you to adjust
the position of a projected image. After adjusting the position, lock the lens with the Lens Shift Lock.
V
V
uppermost
W
1/2W
Horizontal Lens Shift Ring
(Left/Right)
Move the projection lens to the left or right with the Horizontal
Lens Shift Ring.
Move the projection lens up or down with the Vertical Lens Shift
Ring.
Vertical Lens Shift Ring
(Up/Down)
V
V
W
1/2W
downmost
leftmost rightmost
Vertical Lens Shift (Up/Down)
Horizontal Lens Shift (Left/Right)
Moving the Lens
✔Notes:
• The best image is generally obtained at the central axis of the lens shift.
• With maximum lens shift in each direction, image distortion may be observed at the edge of the screen.
• With the maximum horizontal lens shift, the maximum vertical lens shift cannot be obtained, and vice versa.
• The Lens Shift Rings are locked at the factory. Make sure that the Lens Shift Lock is released before using the Lens Shift Rings.
Lens Shift Lock
Before using the
Lens Shift Rings,
make sure that this
lock is released.

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
