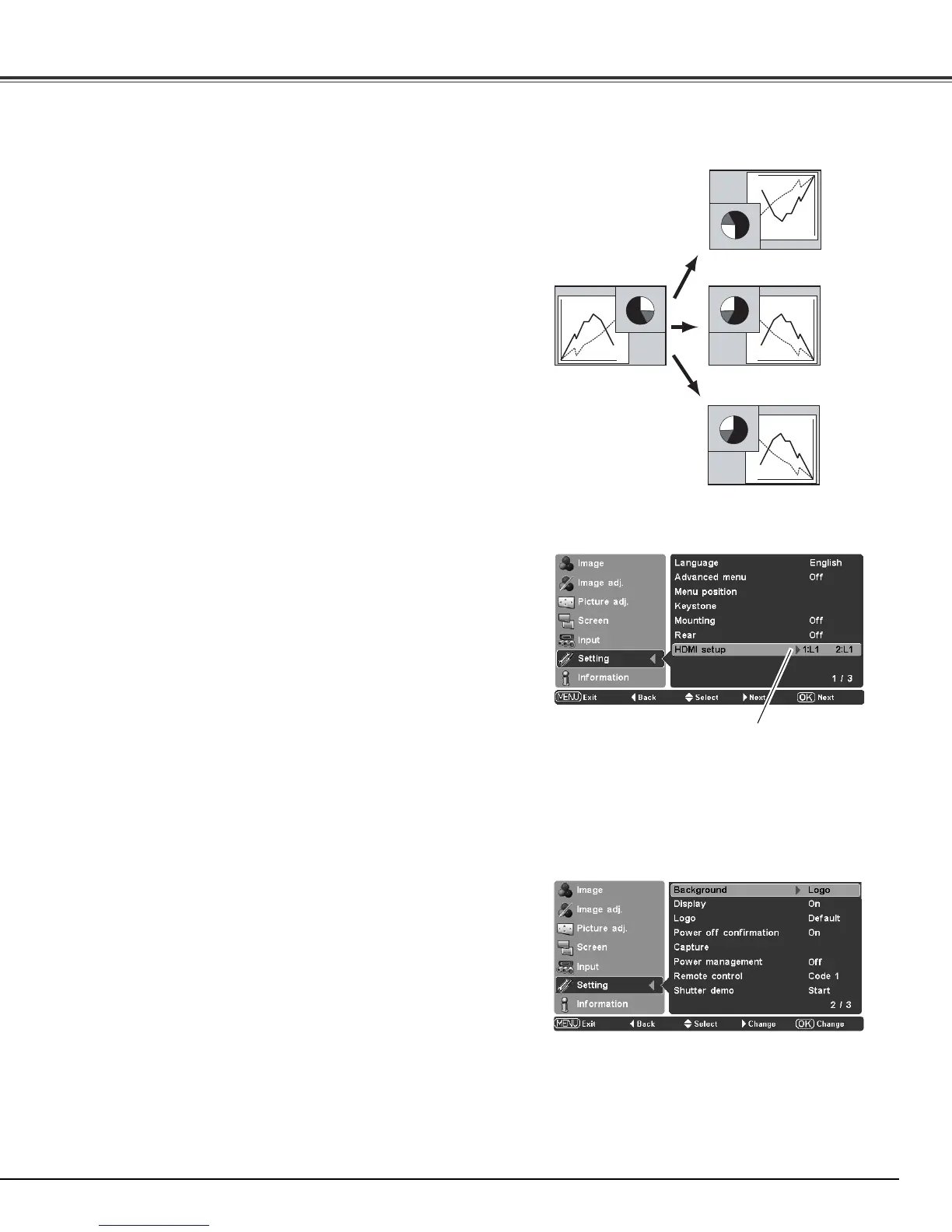

HDMI setup
Select L1 or L2 according to the output signal of video equipment.
Press the Point
8 or OK buttons to switch between each option.
1:L1 2:L1 . . . . . Set HDMI1 terminal to L1, HDMI2 to L1
1:L2 2:L1 . . . . . Set HDMI1 terminal to L2, HDMI2 to L1
1:L1 2:L2 . . . . . Set HDMI1 terminal to L1, HDMI2 to L2
1:L2 2:L2 . . . . . Set HDMI1 terminal to L2, HDMI2 to L2
L1 . . . . . When the output of video equipment is set to
“STANDARD.”
L2 . . . . . When the output of video equipment is set to
“ENHANCED.”
The names for the output setting of video equipment vary from
equipment to equipment. For details, refer to the owner’s manual
of video equipment.
Setting
Mounting
This function is used to select the installation methods of the
projector. Press the Point
8 or OK buttons to switch between each
option.
Off . . . . . Cancel the selected installation method.
Ceiling . . Project the image from the ceiling-mounted projector.
The picture is top/bottom and left/right reversed.
Wall . . . . Project the image from a wall-hanging projector. The
picture is left/right reversed.
Rear
When this function is set to “On,” the picture is left/right reversed.
This function is used to project the image to a rear projection
screen. Press the Point
8 or OK buttons to switch On/Off.
Wall
Off (Normal)
Background
Select the background screen for when no input signal is detected.
Press the Point
8 or OK buttons to switch between each option.
Blue . . . . Project a blue background
Logo . . . Project an image selected in the Logo setting.
Black . . . Project a black background
HDMI setup
Press the Point 8 or OK
buttons to select L1 or L2
according to the output
signal of video equipment.
Rear (On)
Ceiling
Background
✔Note:
• When the Logo setting (see page 38) is set to “Off” with the “Logo” background,
the Background setting will be switched to “Blue.”

Sanyo PLV-Z5 Specifications

General

Number of colors	1.073 billion colors
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Projector native resolution	1280x720
Keystone correction, vertical	± 20 °
Digital zoom	2 x
Zoom capability	Yes
Focal length range	21.3 - 42.6 mm
RS-232 ports	1
Compatibility	WXGA/SXGA/XGA/SVGA/VGA/MAC
Dimensions (WxDxH)	382 x 304.3 x 126.8 mm
Power requirements	100 - 240 V
Horizontal resolution	420 lines
Lamp type	UHP
Lamp power	145 W
Light source type	Lamp
Service life of light source	3000 h
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Display diagonal	0.7 \
Power consumption (typical)	185 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	5000 g
