Scully ST-47 Series User Manual

Diagram Appendix
Self-Proving Vehicle Grounding Verication System
Page 35.

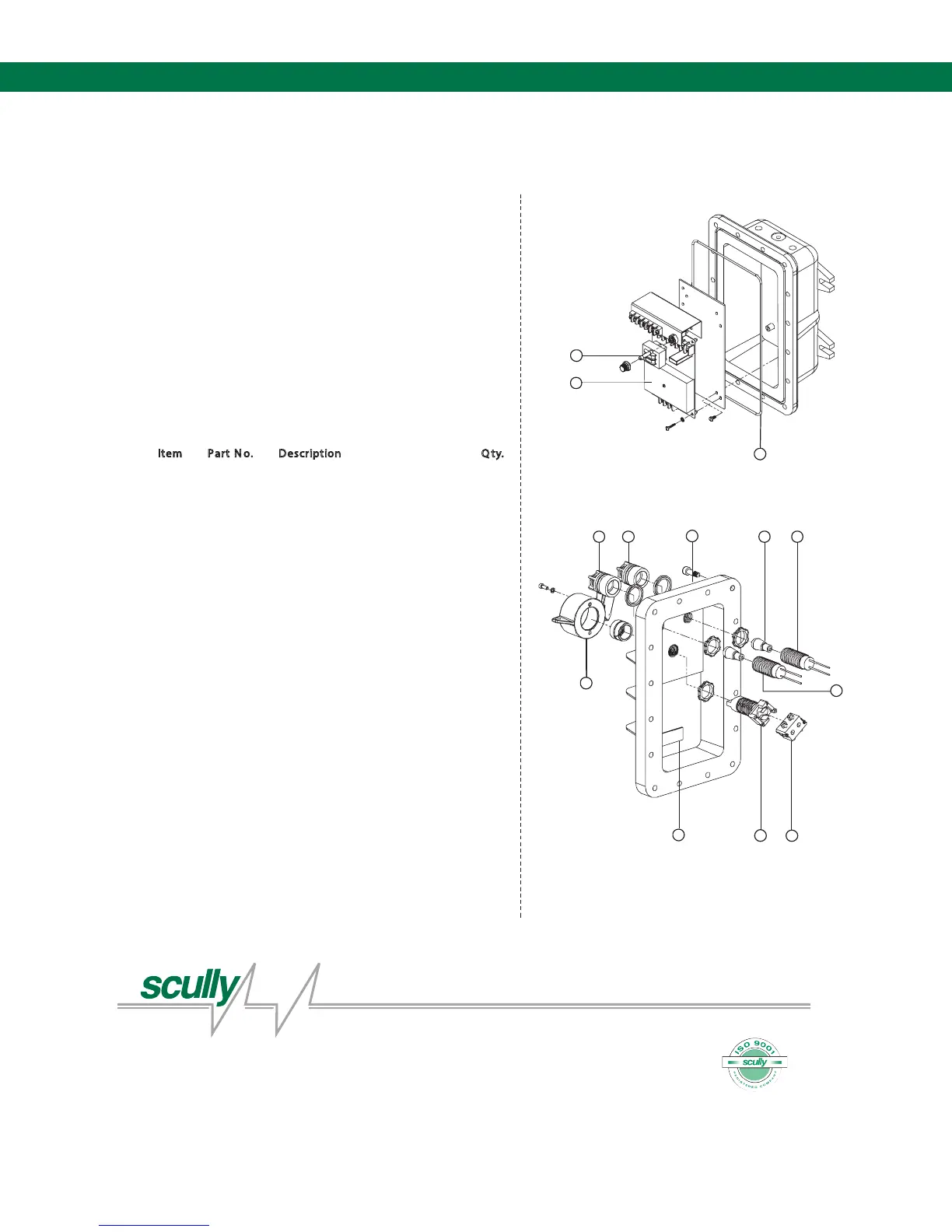

6.19 DWG 61202 – Replacement Parts for ST-47-115
Groundhog™ Controller
FM Models
Part No. Model
08508 ST-47-115 EL
08220 ST-47-115 ELK
Note: Controller Models Sux:
Explosion-proof housing (E), Indicator Lights (L), Key (K) Lockable
Bypass Switch.
Replacement Parts
.ytQnoitpircseD.oN traP metI
1 26311 Control Fuse, 5 Ampere 1
2 09511 ST-47C-115 Replacement Module 1
61daeH xeH,wercS140053
4 09124 Replacement Lens and
Guard Assembly, Red 1
5 09125 Replacement Lens and
Guard Assembly, Green 1
6 08350 Bypass Switch Lock Box
(includes 2 mounting screws).1
1eluspaC noisorroC337127
1laes revoc gnir-O043138
2W6 ,V531 ,bluB500729*
12 08343 Pilot Light Replacement LED Kit, Red 1
10 09384 LED Bulb, Red 1
11 09385 LED Bulb, Green 1
(includes 4,10,12)
13 08342 Pilot Light Replacement LED Kit, Green 1
(includes 5, 11,13)
14 26022 Bypass Switch Contact Block 1
15 26055 Bypass Switch Operator 1
3-Position
Notes:
Item 3: Hex-head screw used on models built after 10/92.
Item 8: O-ring used on models built after 10/92.
*Replacement Bulb for incandescent style explosion-proof lights only.
1
2
8
5 4 3 9
12
13
15
14
7
6
REPLACEMENT PARTS for ST-47 115VAC
61202, Rev E 2013
Dynamic Self-Testing
®
Overll Prevention Systems
MaxSafety
®
SYSTEMS
Scully Signal Company
70 Industrial Way,
Wilmington, MA 01887-3479, USA
Tel: 800 272 8559
/ 617 692 8600
email: sales@scully.com
Scully Systems Europe NV
Eksterveldlaan 31a
2820 Bonheiden
/ Belgium
Tel: +32 (0) 15 56 00 70
email: info@scully.be
Scully UK Ltd
Meridian House, Unit 33,
37 Road One Winsford Industrial Estate,
Winsford Cheshire CW7 3QG
/ UK
Tel.: +44 (0) 1606 553805
email: sales@scullyuk.com
