ST-47 Groundhog - Technical Manual
Page 36.

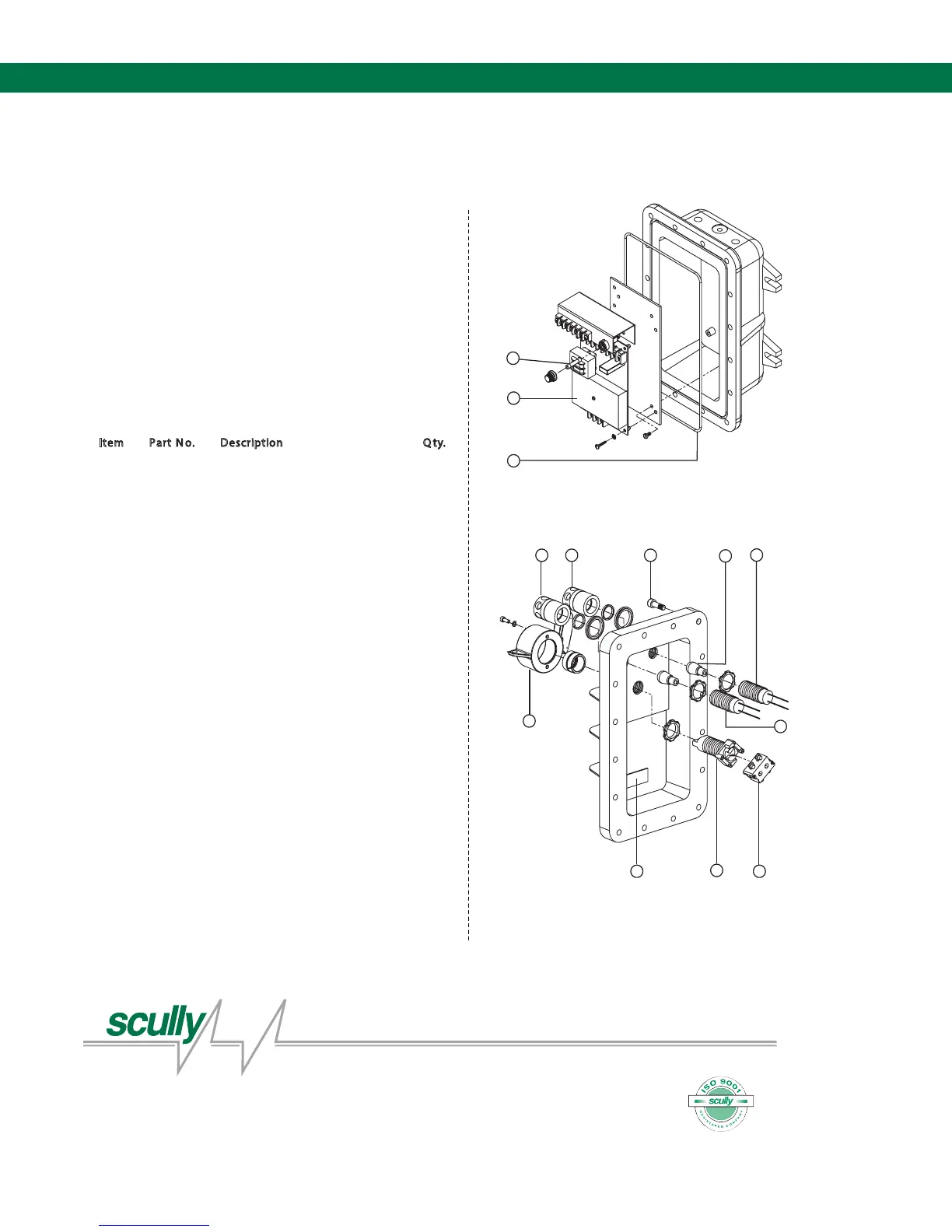

6.20 DWG 61273 – Replacement Parts for ST-47-240
2
8
5
4 3
9
10
11
13
127
6
1
REPLACEMENT PARTS for ST-47 240VAC
Groundhog™ Controller
FM Models
Part No. Model
08675 ST-47-240 EL
08502 ST-47-240 ELK
Note: Controller Models Sux:
Explosion-proof housing (E), Indicator Lights (L), Key (K) Lockable
Bypass Switch.
Replacement Parts
1 26311 Control Fuse, 5 Amperes 1
2 09512 ST-47-240 Replacement Module 1
61daeH xeH ,wercS140053
4 09122 Replacement Lens and 1
Guard Assembly, Red
5 09123 Replacement Lens and 1
Guard Assembly, Green
6 08350 Bypass Switch Lock Box 1
(includes 2 mounting screws)
1eluspaC noisorroC337127
1laes revoc gnir-O043138
2W01 ,V042 ,bluB600729
10 08346 Pilot Light Replacement Kit, Red 1
(includes 4, 9 & 10)
11 08345 Pilot Light Replacement Kit, Green 1
(includes 5, 9 & 11)
12 26022 Bypass Switch Contact Block 1
13 26055 Bypass Switch Operator, 1
3-Position
Notes:
Item 3: Hex-head screw used on models built after 10/92.
Item 8: O-ring used on models built after 10/92.
61273, Rev C 2013
.ytQnoitpircseD.oN traP metI
Dynamic Self-Testing
®
Overll Prevention Systems
MaxSafety
®
SYSTEMS
Scully Signal Company
70 Industrial Way,
Wilmington, MA 01887-3479, USA
Tel: 800 272 8559
/ 617 692 8600
email: sales@scully.com
Scully Systems Europe NV
Eksterveldlaan 31a
2820 Bonheiden
/ Belgium
Tel: +32 (0) 15 56 00 70
email: info@scully.be
Scully UK Ltd
Meridian House, Unit 33,
37 Road One Winsford Industrial Estate,
Winsford Cheshire CW7 3QG
/ UK
Tel.: +44 (0) 1606 553805
email: sales@scullyuk.com
