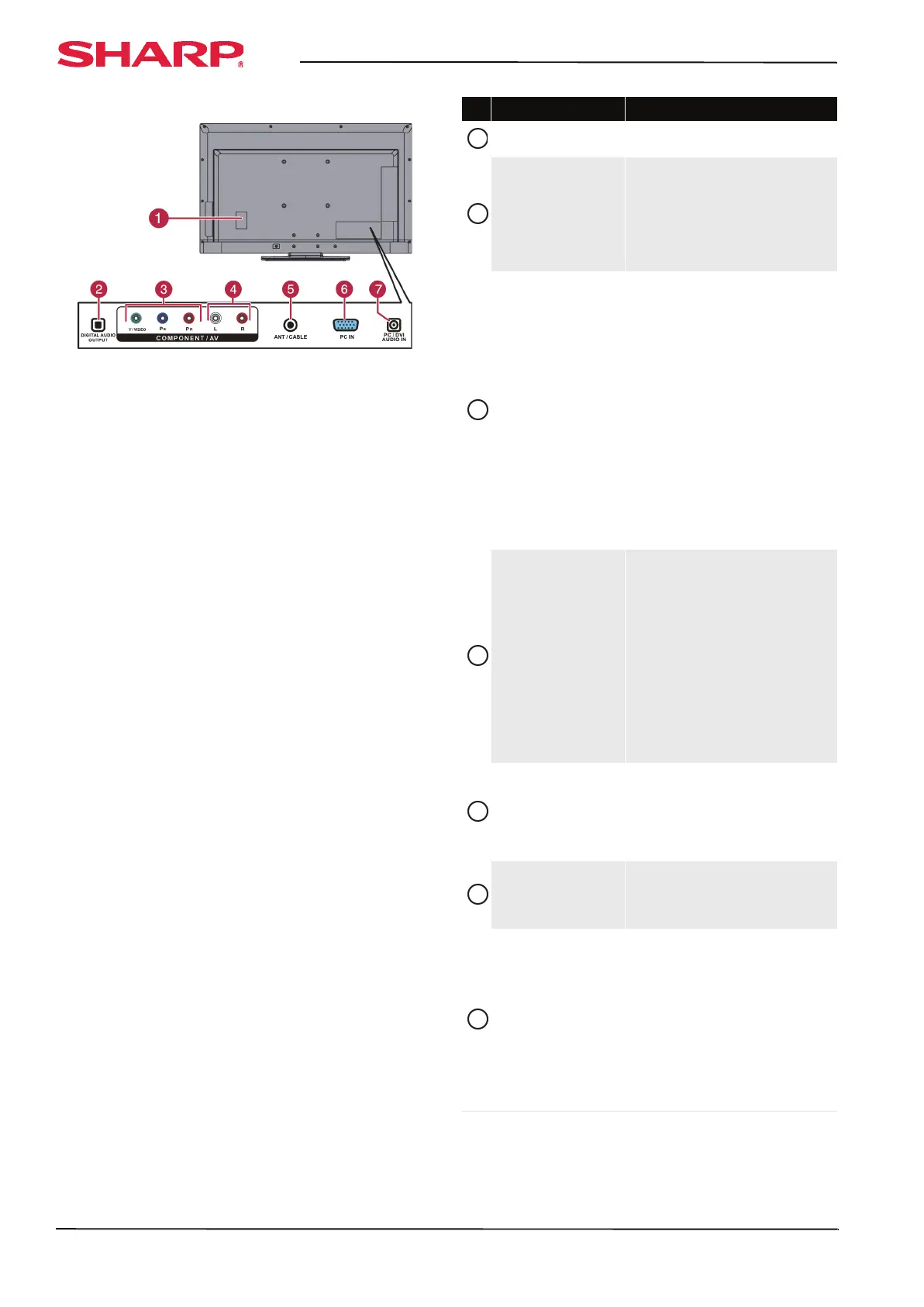

LC-42LB150U Sharp 42" LED TV
www.sharpusa.com
Back
# Item Description
Power connector
Plug the power cord into this
connector.
DIGITAL AUDIO
OUTPUT (optical)
Connect a digital audio
amplifier, home theater system,
or sound bar to this jack to
listen to TV audio through the
external speakers. For more
information, see “Using digital
audio” on page 32.
COMPONENT/AV
Y/VIDEO, P
B, PR
OR
COMPONENT/AV
Y/VIDEO
The COMPONENT/AV Y/VIDEO
jack works as one of the three
component video jacks or as a
composite video jack.
Connect the video for a
component video device to
these jacks. For more
information, see “Using
component video (better)” on
page 15, 21, or 25.
OR
Connect the video for a
composite video device to the
COMPONENT/AV Y/VIDEO
jack. For more information, see
“Using composite video (good)”
on page 16, 22, or 26.
L and R (audio)
Connect the audio for a
component video device to
these jacks. For more
information, see “Using
component video (better)” on
page 15, 21, or 25.
OR
Connect the audio for a
composite video device to
these jacks. For more
information, see “Using
composite video (good)” on
page 16, 22, or 26.
ANT/CABLE
Connect an antenna or cable TV
to this jack. For more
information, see “Using coaxial
(good)” on page 17 or
“Connecting an antenna or
cable TV (no box)” on page 18.
PC IN
Connect the video (VGA) for a
computer to this jack. For more
information, see “Using VGA
(most common)” on page 27.
PC/DVI AUDIO IN
Connect the audio for a
computer to this jack. For more
information see “Using VGA
(most common)” on page 27.
OR
Connect the audio for a DVI
device to this jack. For more
information see, “Using DVI
(same as HDMI but requires an
audio connection)” on
pages 14, 20, or 29.
1
2
3
4
5
6
7
