TO SURGE LIMITING RESISTOR (BROWN/0.8mm2)
TO SURGE LIMITING RELAY, TERMINAL NO. A (BROWN/0.8mm2)
TO SURGE LIMTING RELAY, TERMINAL No. 15 (BROWN/0.8mm2)
TO VARI-SWITCH, NORMALLY OPEN TERMINAL (BROWN/0.8mm2)
SURGE
LIMITING
RELAY
TO POWER TRANSFORMER, PRIMARY WINDING (WHITE/0.3mm2)
TO POWER TRANSFORMER, PRIMARY WINDING (GRAY/0.8mm2)
TO SURGE LIMITING RESISTOR (GRAY/0.8mm2)

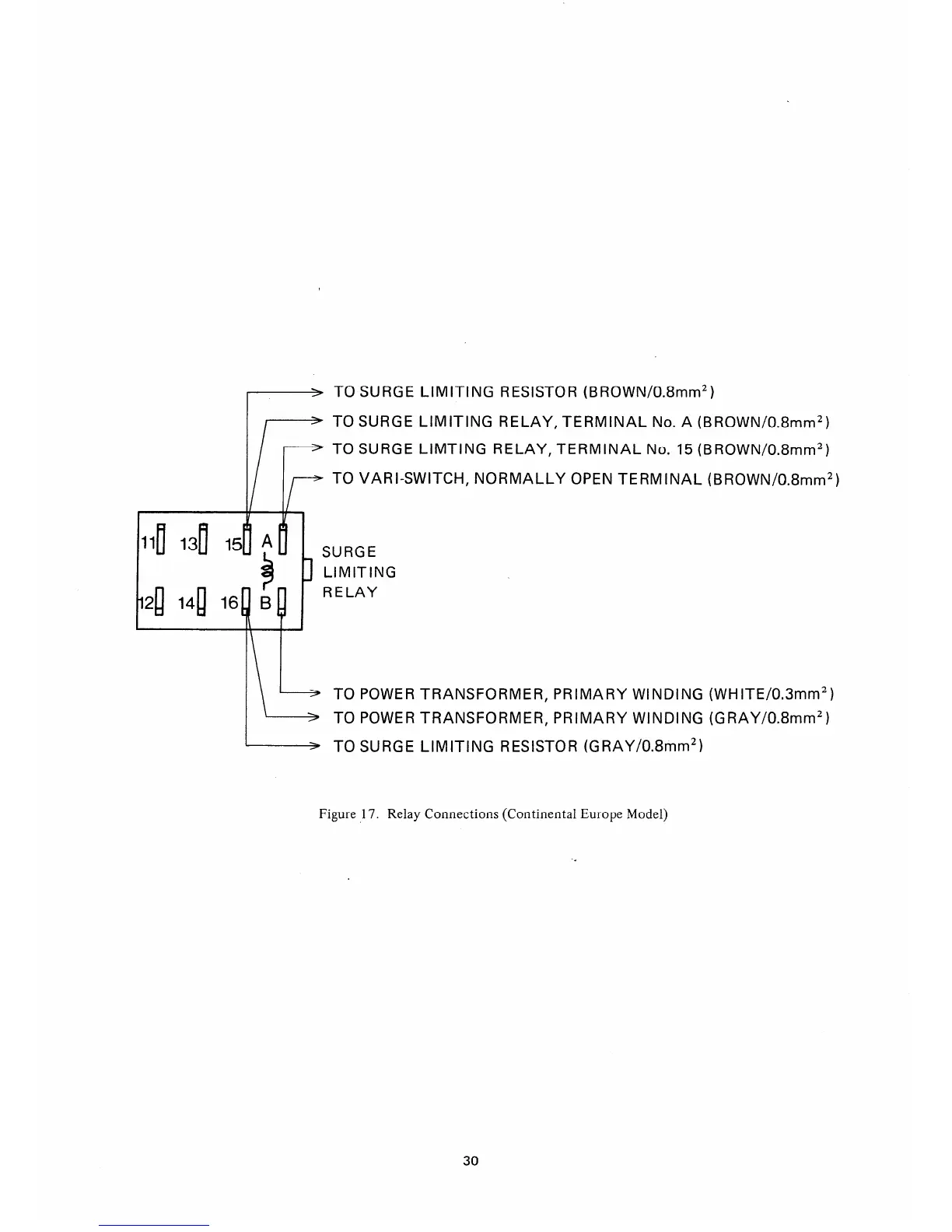

Figure 17. Relay Connections (Continental Europe Model)
30
