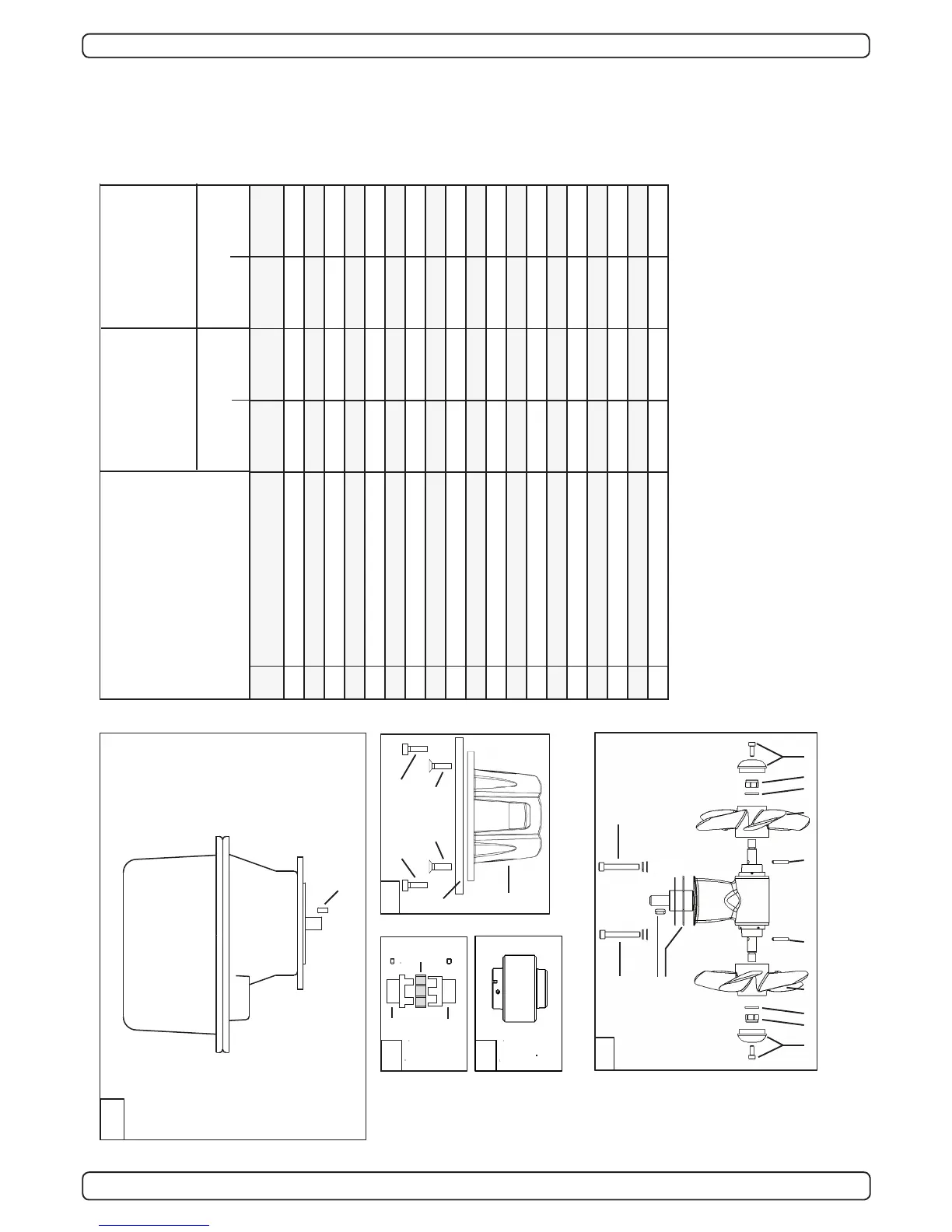

SE80/185T & SE100/185T Ignition Protected thruster assembly 1.0 - 2007
SE80/185T IP & SE100/185T IP
50
SP 75 Ti / SP 95 Ti / SP 125 Ti 2.5.1- 2007
SP 75 Ti
15
17
18
16
2223 212425262829
20 19
27
30
13
14
11
7
8
6
2
1
2
1
3
45
9
10
12
8
11
Ref: 12V 24V
30. Complete electric motor assembly
6 0101 12 6 0101 24
29.
Nut for solenoid cover 6 8810 6 8810
28.
Solenoid cover 6 2025 6 2025
27.
Complete solenoid kit 6 0131 12 6 0131 24
26.
Solenoid 41371123 41371243
25.
Internal w iring loom 6 1226B 6 1226B
24.
Electronic control box 6 1232i 6 1232i
23.
Solenoid bracket kit 6 0135 6 0135
22.
Key for electric motor shaft 10 1440 10 1440
21.
Electric motor N/A N/A
20.
Brush springs for electric motor (kit) 6 0170 12* 6 0170 24*
19.
Brushes for electric motor (kit) 6 0180 12* 6 0180 24*
18. Complete flexible coupling
7 1450 7 1450
17.
Rubber element 7 1451 7 1451
16. Oil container w ith holder
20 0300 20 0300
15. Oil hose w ith hose clamps
20 0400 20 0400
14. Complete m otor bracket
8 0500 8 0500
13.
O-ring seals in motor bracket 7 1340 7 1340
12. Complete gearleg
8 0600 8 0600
11.
Gearleg bolt 7 1080 7 1080
10.
Drive shaft seal 7 1350 7 1350
9.
Drive shaft key 6 1440 6 1440
8.
Propeller shaft seal 6 1350 6 1350
7.
Gasket 8 0610 8 0610
6.
Oil drain screw w ith gasket 6 1220 6 1220
5.
Zinc anode 7 1190 7 1190
4.
Locknut 4 1260 4 1260
3.
Propeller w asher 7 1181 7 1181
2.
Propeller drive pin 6 1241 6 1241
1.
Propeller 7 1260 7 1260
*
Other comments:
Please provide thruster serial number w hen ordering brushes and brush springs.
Part #
Original model Model period
SP 75 Ti
12/04 <
12V
24VRef:
Part #
SE 80/185T
09/07 <
Original model Model period
12V
24V
Part #
SE 100/185T
09/07 <
9
18
1 2345 2 1 3 4 5
6 7 8
8
10
11
12
13
13
12
14
16
17
15
19
20
20 Complete IP electric motor
assembly
6 0101 12 6 0101 24 8 0101 12 8 0101 24
19 Key for eletric motor shaft 10 1440 10 1440 10 1440 10 1440
18 Complete exible coupling 7 1462 7 1462 N/A N/A
17 Coupling, engine side N/A N/A 7 1456
16 Rubber element N/A N/A 7 1458
15 Coupling, gearleg side N/A N/A 7 1457
14 Complete motor bracket 8 0501 8 0501 N/A N/A
13 Bolt, motor to ange N/A N/A 101360 101360
12 Bolt, ange to bracket N/A N/A 11031 11031
11 Flange N/A N/A 921302 921302
10 Bracket N/A N/A 8 0501 8 0501
9 Complete gearleg 8 0601 8 0601 8 0601 8 0601
8 Gearleg bolt 7 1080 7 1080 7 1080 7 1080
7 Driveshaft key 6 1440 6 1440 6 1440 6 1440
6 Gasket 8 0610 8 0610 8 0610 8 0610
5 Zink anode 7 1190 7 1190 7 1190 7 1190
4 Locknut 4 1260 4 1260 4 1260 4 1260
3 Propeller washer 7 1181 7 1181 7 1181 7 1181
2 Propeller drivepin 6 1241 6 1241 6 1241 6 1241
1 Propeller 7 1261 7 1261 7 1261 7 1261
