4.5 Manual operators

3VA molded case circuit breakers

Manual, 04/2015, A5E03603177010-02

241

4.5.2

Front mounted rotary operator

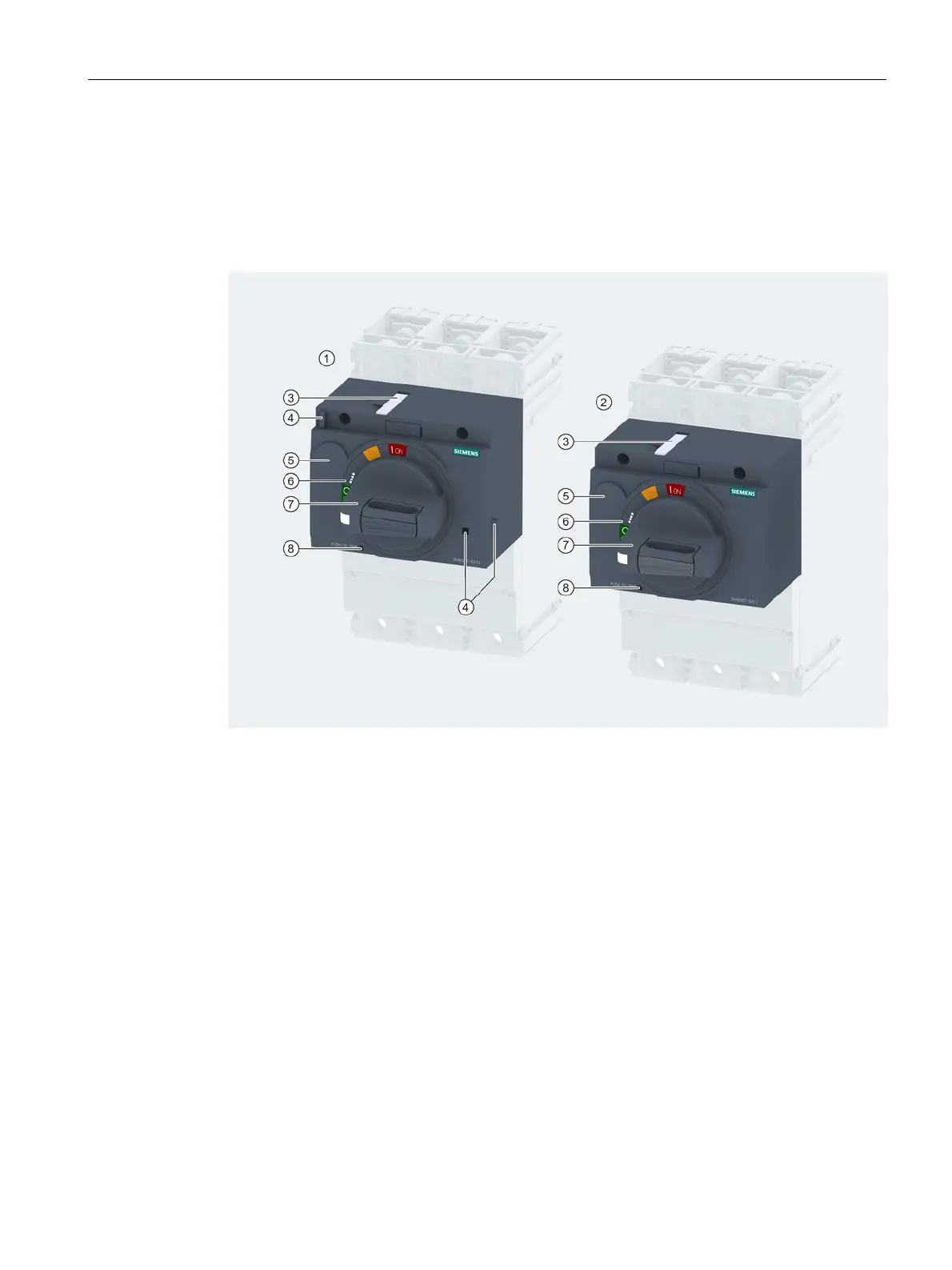

The front mounted rotary operator is available in two versions:

● With door interlock

● Without door interlock

①

Front mounted rotary operator with door

interlock

⑤

Cylinder lock device

②

Front mounted rotary operator without door

interlock

⑥

Switching position indicator (see below)

③

Device for up to 3 padlocks

⑦

Handle with device for up to 3 padlocks

④

Door interlocking elements

⑧

Trip unit button <PUSH TO TRIP>
