Description
2.2 Ergonomic design
3VA molded case circuit breakers
Manual, 04/2015, A5E03603177010-02
41
A large selection of connection systems is available for the new series of 3VA molded case
circuit breakers.
The supported cable cross-sections are based on the size of the molded case circuit breaker
and the cable terminals used. The terminals are fitted either internally or externally to the
molded case circuit breaker.
The connection technology is easy to integrate in the new series of 3VA molded case circuit
breakers.
With it you can implement various front and rear main conductor connections for the molded
case circuit breakers in all types of installation (fixed-mounted, plug-in and draw-out).

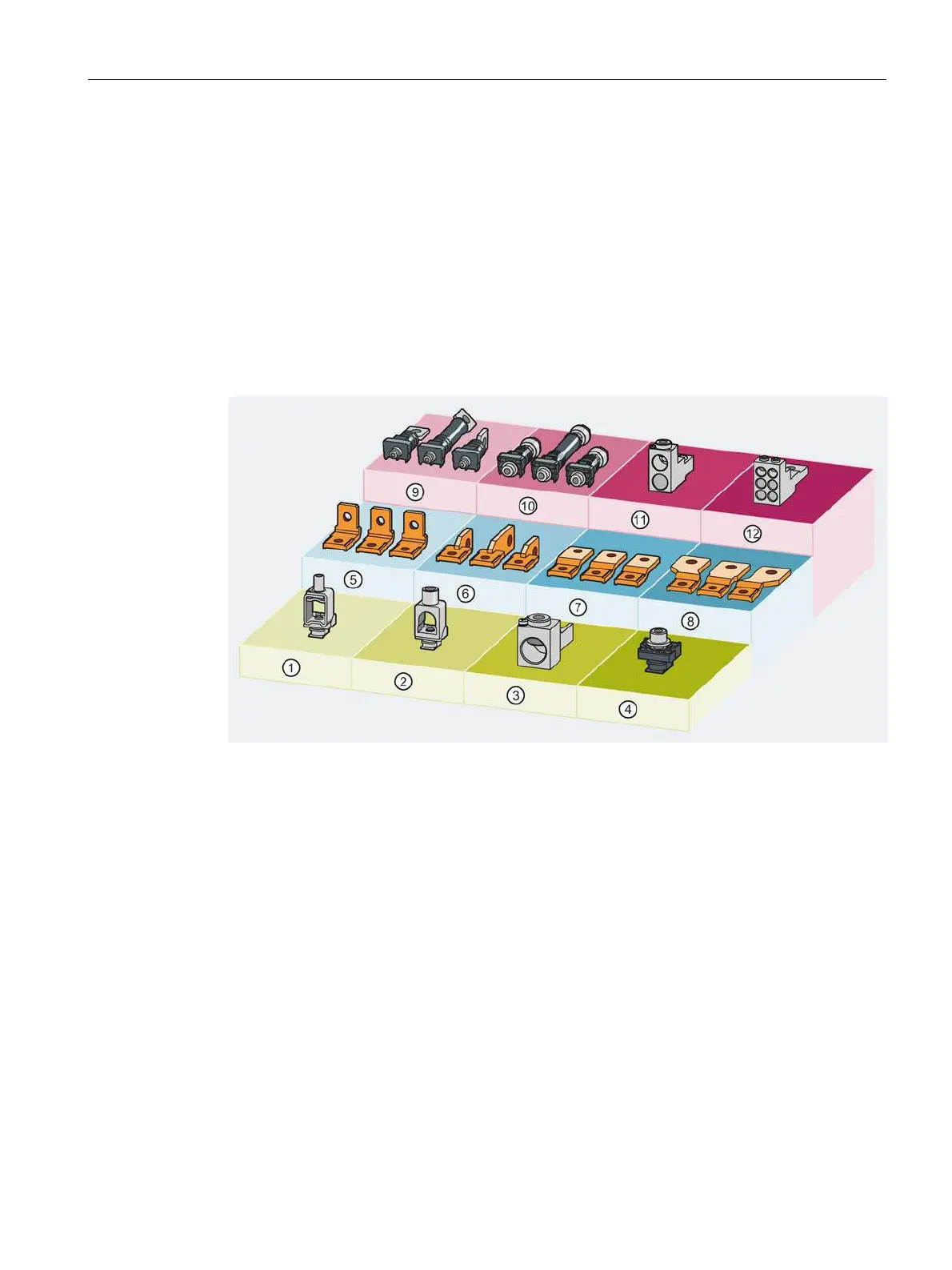

Box terminal
Front connection bars extended
Circular conductor terminal
Front connection bars broadened
Circular conductor terminal, large
Rear terminal flat
Lug terminal
Rear connecting stud
Lug terminal, right-angled
Circular conductor terminal for 2 cables
Front connection bars edgewise
Circular conductor terminal for 6 cables
