Accessories

4.5 Manual operators

3VA molded case circuit breakers

Manual, 04/2015, A5E03603177010-02

249

4.5.4

Side wall mounted rotary operator

The side wall mounted rotary operator allows the molded case circuit breaker to be operated

through the right-hand or left-hand side wall of the cubicle.

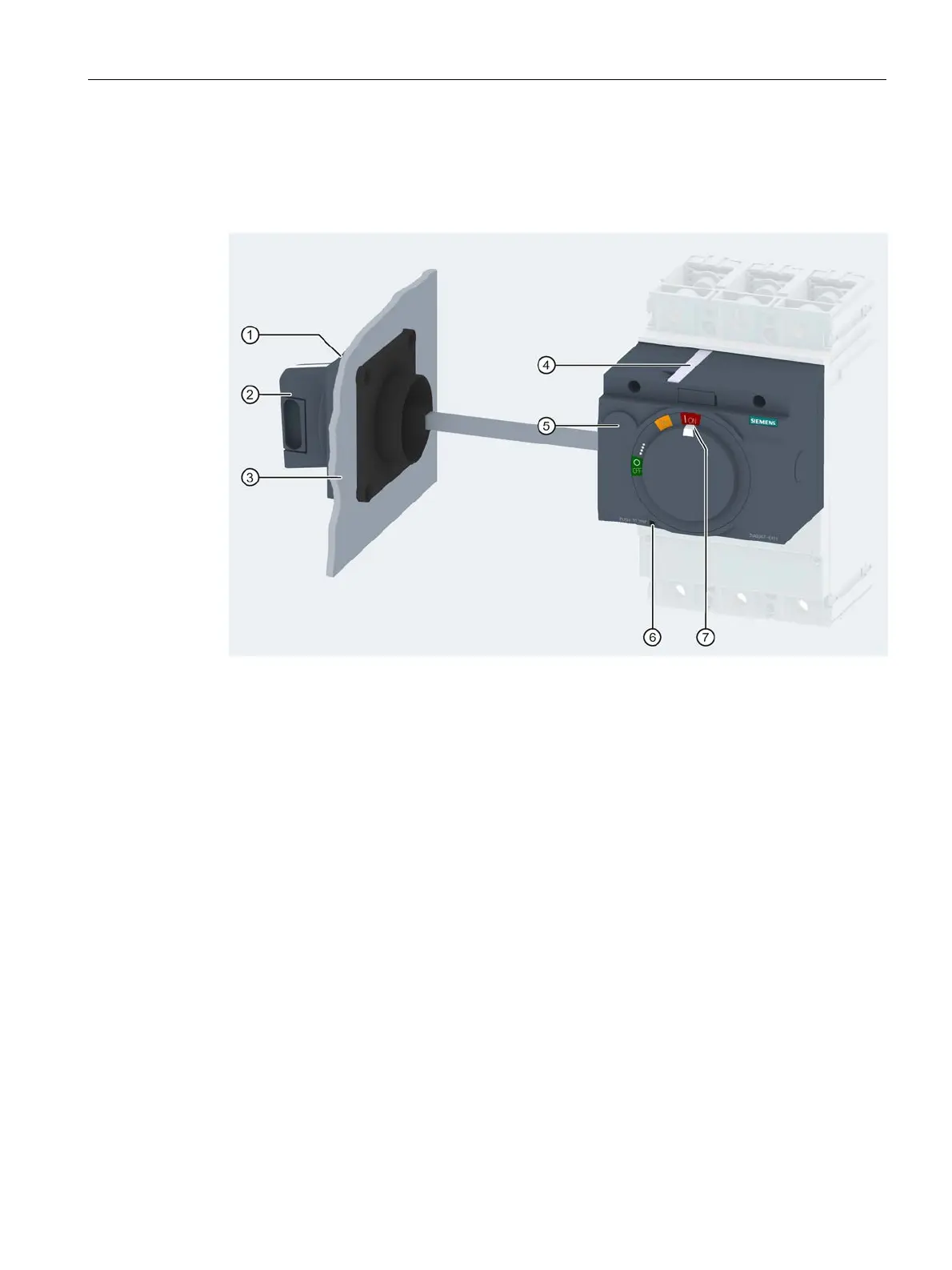

①

Side wall mounted rotary operator

②

Handle with device for up to 3 padlocks

③

Side wall of cubicle

④

Device for up to 3 padlocks

⑤

Device for cylinder lock

⑥

Trip unit button <PUSH TO TRIP>

⑦

Switching position indicator ON, TRIP, mounting position, OFF, RESET

For mounting position, see chapter Front mounted rotary operator (Page 241)
