Accessories
4.5 Manual operators
3VA molded case circuit breakers
248 Manual, 04/2015, A5E03603177010-02

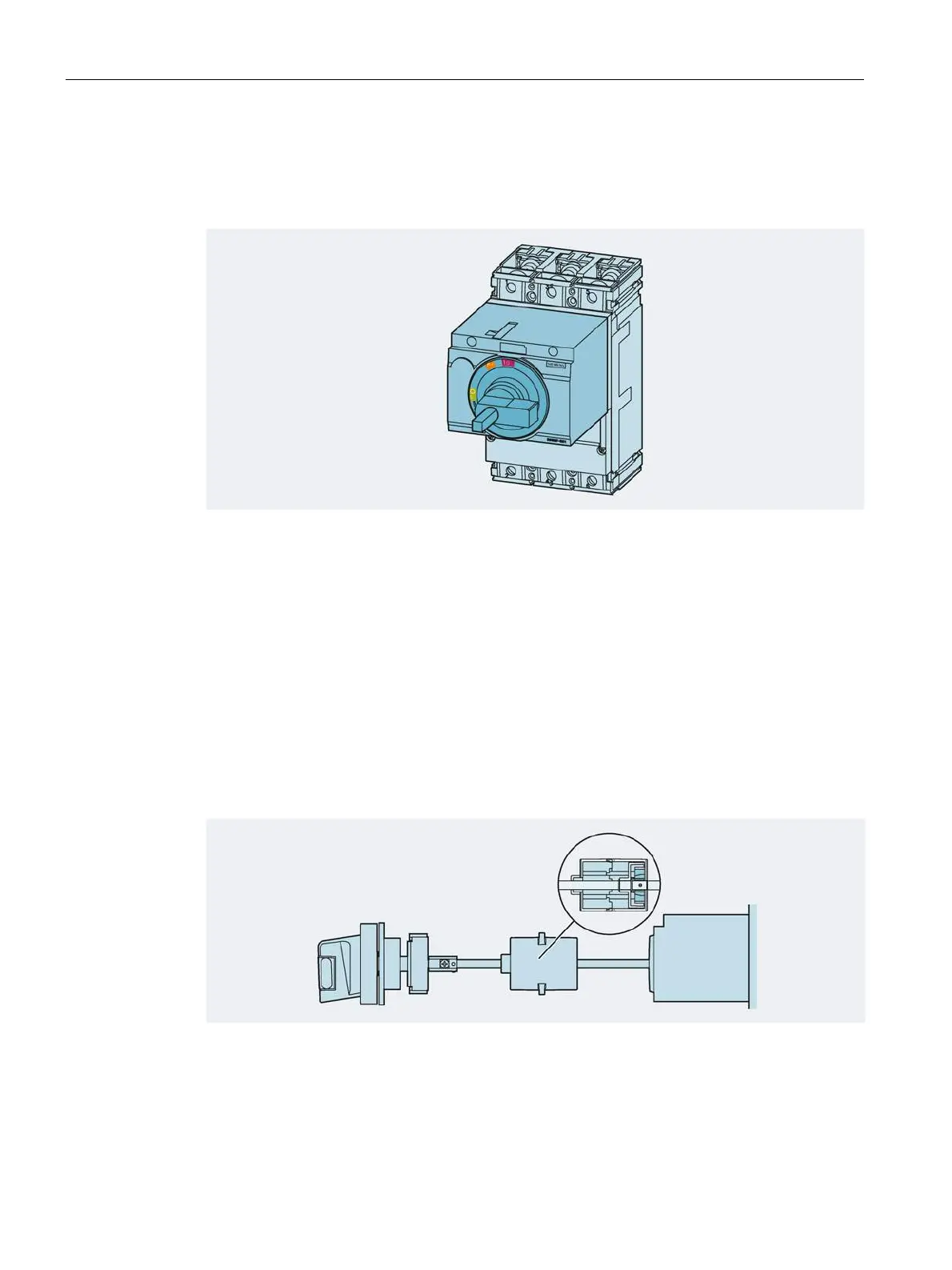

Supplementary handle for door mounted rotary operator
The supplementary handle can be used to operate the molded case circuit breaker when the
cubicle door is open.
Use the supplementary handle to close the molded case circuit breaker:
A deliberate action is required to turn the molded case circuit breaker to the ON (I) position:
1. Push in the supplementary handle.
2. Turn the supplementary handle to the ON (I) position in order to close the molded case
circuit breaker.
Variable depth adapter
The variable depth adapter can be installed to compensate the distance traveled between
the TEST and DISCON positions with draw-out units. With this device installed, the cubicle
door need not be opened when the breaker is in the TEST or DISCON position. See also
chapter Draw-out technology (Page 215)
