Description
2.6 Protection system
3VA molded case circuit breakers
Manual, 04/2015, A5E03603177010-02
73
①

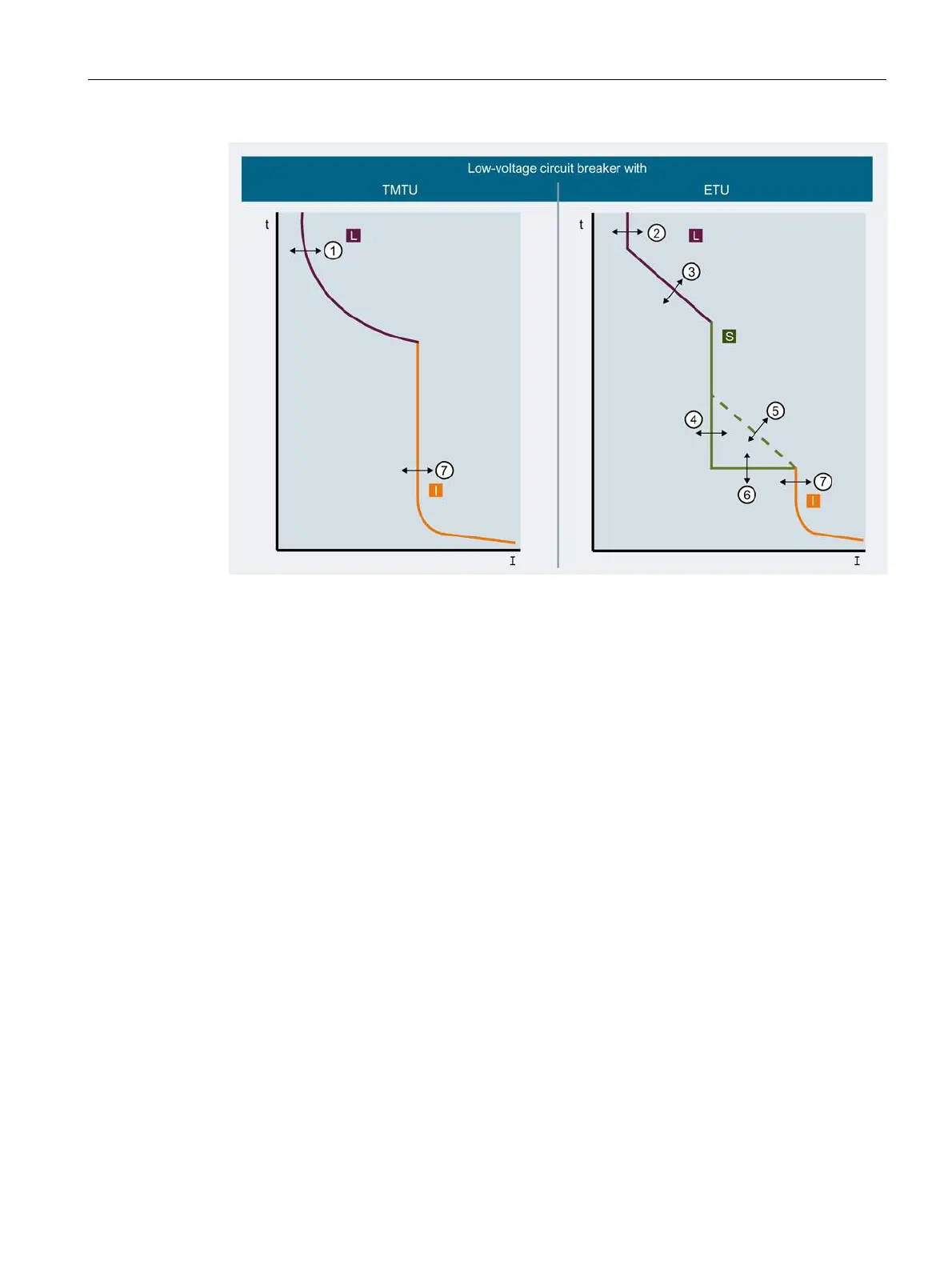

Response threshold of the long-time delayed
protection, thermal
⑥
Delay of the short-time delayed protection
②
Response threshold of the long-time delayed
protection
⑦
Response threshold of the instantaneous
protection
③
Delay of the long-time delayed protection L Overload range
④
Response threshold of the short-time delayed
protection
S Short-time delayed short-circuit current
range
⑤
I
2
t characteristic ON/OFF of the short-time
delayed protection
I Instantaneous short-circuit current range
