Description
2.6 Protection system
3VA molded case circuit breakers
Manual, 04/2015, A5E03603177010-02
75

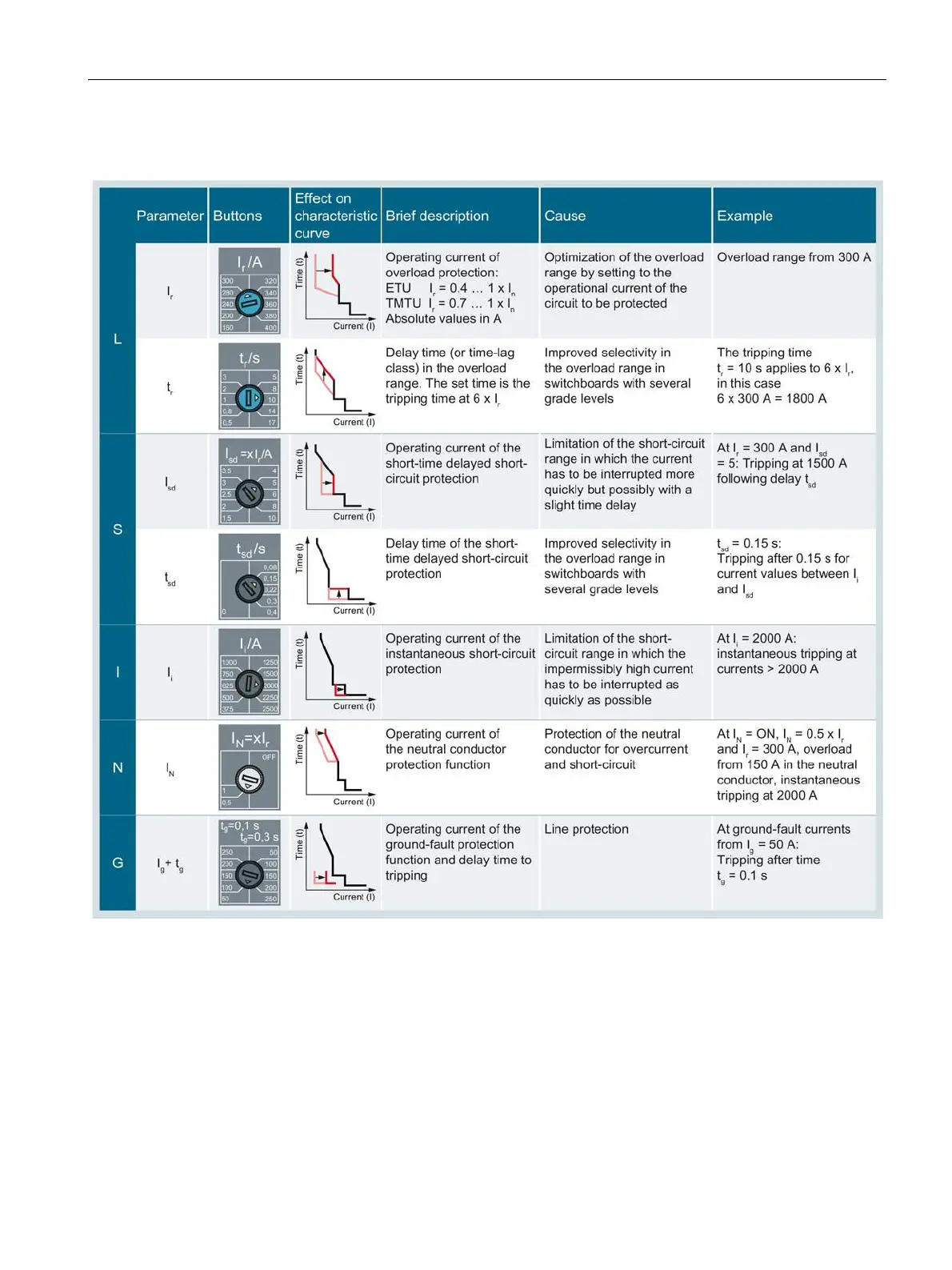

Basic rules for setting different trip parameters
Setting the parameters for trip units ETU 5-series and 8-series
ETU 5-series and 8-series are equipped with an LCD.
Parameter settings can be adjusted via this LCD, values are input by means of buttons. The
powerconfig software can also be used to input parameter settings. The TD500 test device
and the COM800/COM100 breaker data server combined with the COM060 communication
module can be used as the software interface.
