Siemens LMV52.200B1 User Manual

275/327
Building Technologies Basic Documentation LMV5... CC1P7550en
19 O2 trim control with LMV52 and PLL52 22.05.2018
19.8 PLL52 O2 module
The PLL52 and QGO20 must be connected to enable the residual oxygen control
system to be activated on the LMV52.
A combustion air and flue gas temperature sensor can also be connected as an option,
enabling, for example, the combustion efficiency to also be calculated and displayed.
The PLL52 is to be connected to the LMV5 via CAN bus. The PLL52 must be located in
the vicinity of the QGO20 (<10 m), aimed at keeping interference on the sensitive
detector lines as low as possible. For sensor heating, the PLL52 requires a separate
mains connection facility.
19.8.1 Inputs and outputs
Temperature sensor
Temporary connection of
AZL5...
M
a
i
n
s
c
o
n
n
e
c
t
i
o
n
Q
G
O
.
.
.
h
e
a
t
i
n
g
Temp
e
r
a
t
u
r
e
s
e
n
s
o
r

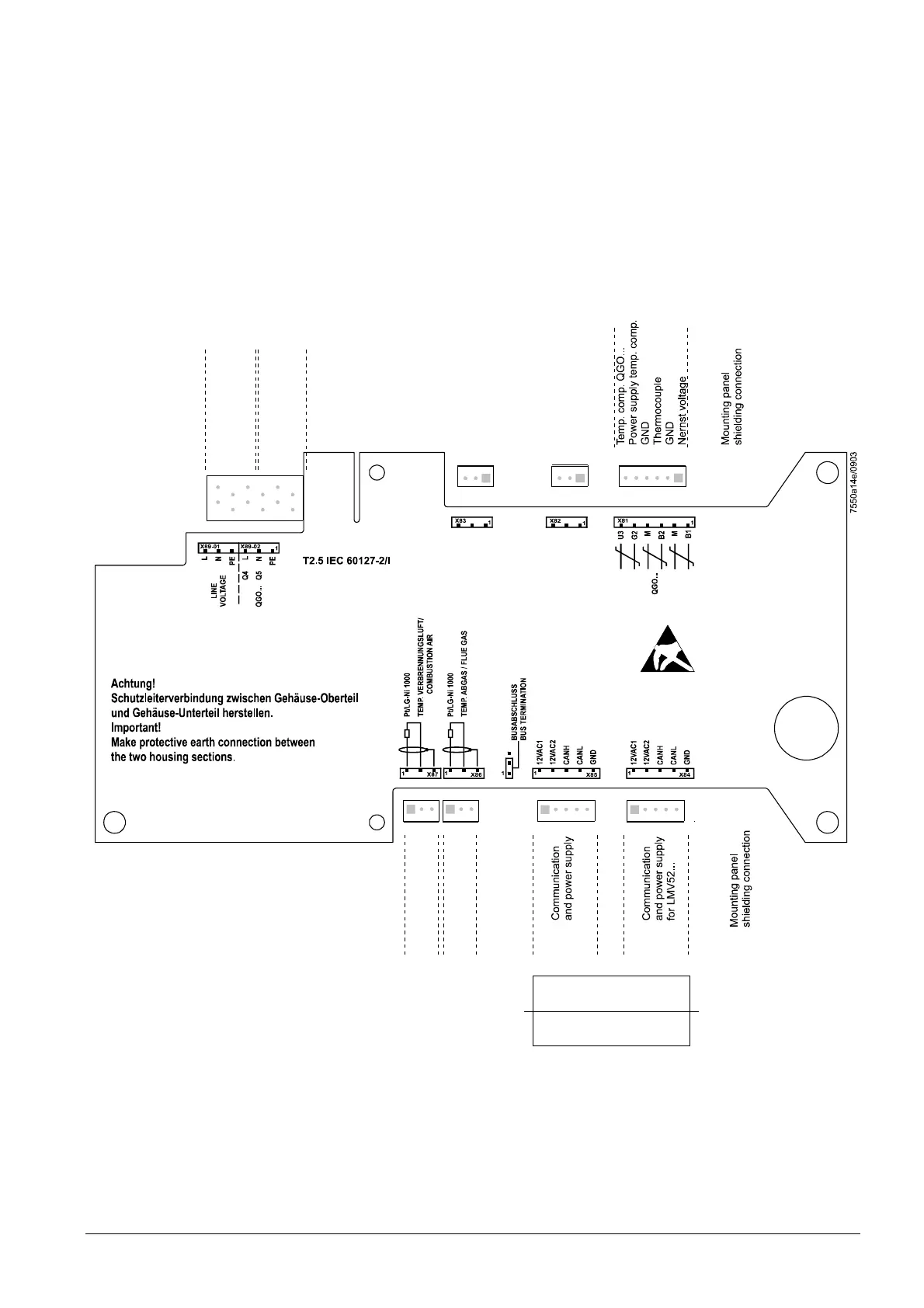

Figure 121: Inputs/outputs PLL52
