Siemens RUGGEDCOM RX1500 User Manual

Chapter 3
Communication Ports
RUGGEDCOM RX1500
Installation Guide
32
Installing SIM Cards for GSM, EDGE and HSPA+ Cellular
Modems
1

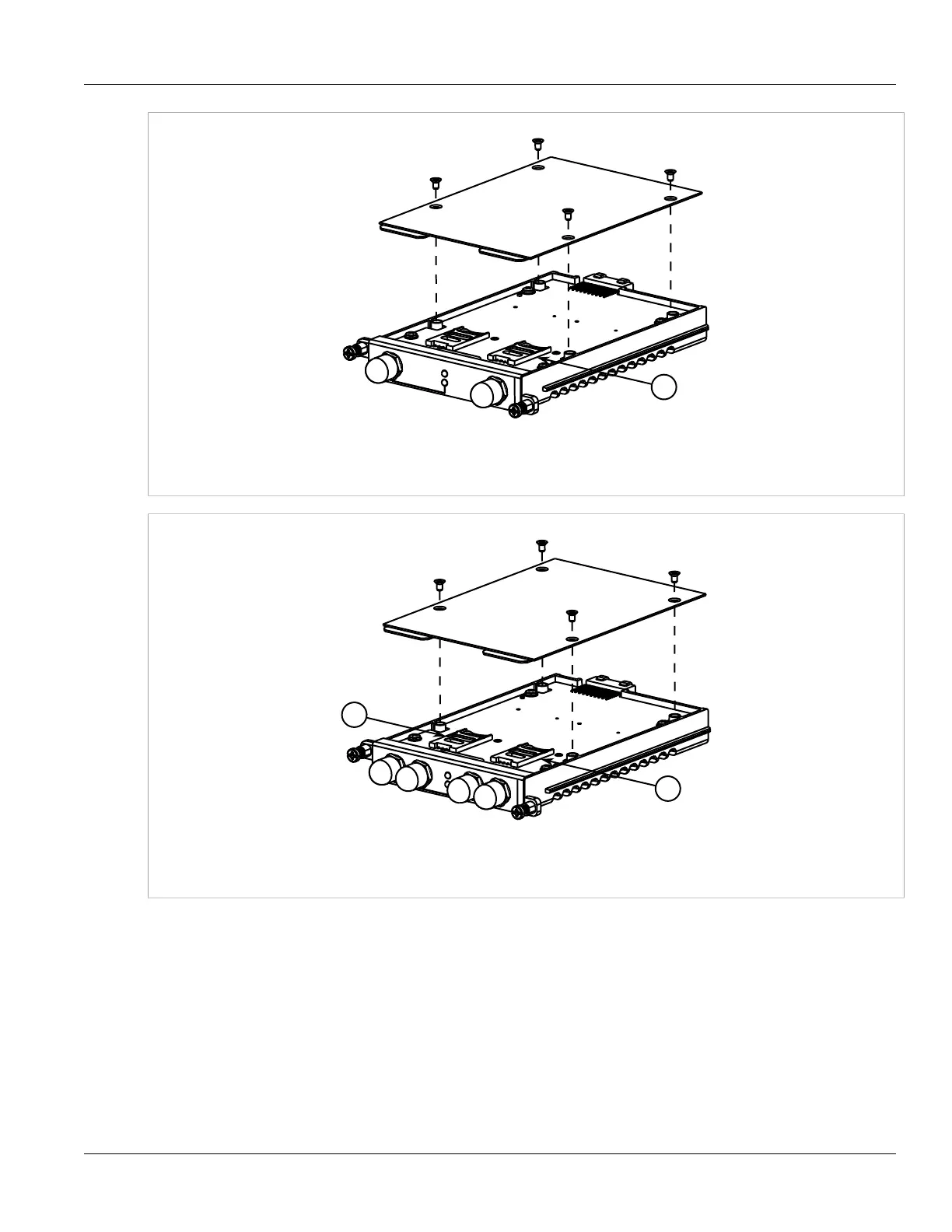

Figure 46: W11, W21 Cellular Modem
1. SIM Card Cage 1
2
1
Figure 47: W12, W22, W32 Cellular Modem
1. SIM Card Cage 1 2. SIM Card Cage 2
3. Open SIM card cage 1 by sliding the silver catch towards the antenna connectors and flip the cage up.
4. Insert a mini-SIM card into the cage.
5. Close SIM card cage 1 by flipping the cage down and slide the silver catch away from the antenna
connectors.
6. For W12, W22 and W32 cellular modems, repeat Step 3 to Step 5 install a mini-SIM card in SIM card cage 2.
7. Install the back of the module and secure it to the module chassis with the four screws removed previously.
8. Install the module. For more information, refer to Section 3.9.1, “Installing a Module”.
