Siemens RUGGEDCOM RX1501 Installation Guide

Chapter 2
Installing the Device
RUGGEDCOM RX1501
Installation Guide
12 Connecting High AC/DC Power
Section2.5.1
Connecting High AC/DC Power
To connect a high AC/DC power supply to the device, do the following:
DANGER!
Electrocution hazard – risk of death, serious personal injury and/or damage to the device. Make sure
the supplied cover is always installed over high voltage screw terminal blocks.
CAUTION!
Electrical hazard – risk of damage to equipment. Do not connect AC power cables to a 12, 24 or 48 VDC
power supply terminal block. Damage to the power supply may occur.
NOTE
The screw terminal block is installed using Phillips screws and compression plates, allowing either bare
wire connections or crimped terminal lugs. Use #6 size ring lugs for secure, reliable connections.
1. Connect the power supply terminal block to the device.
4
1
3
2

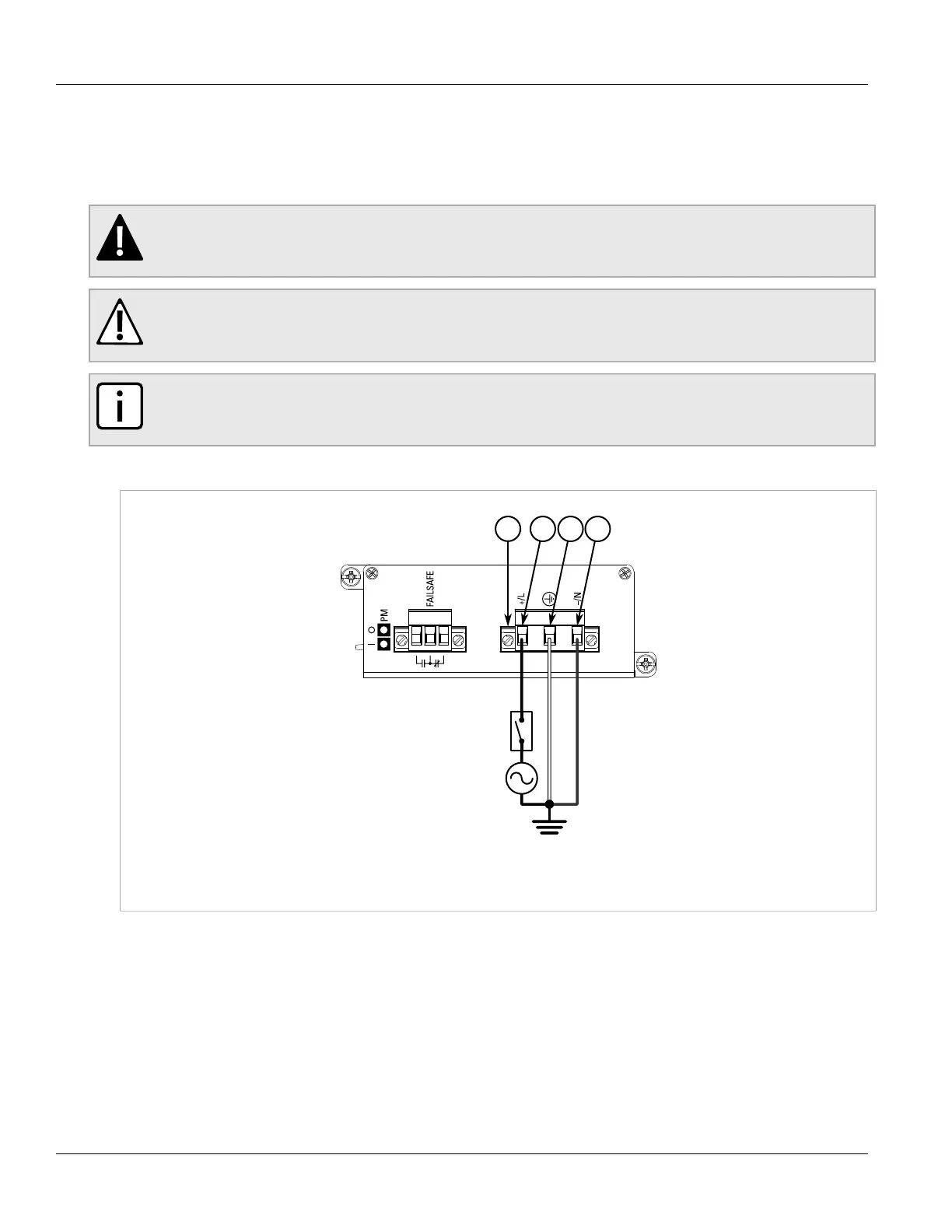

Figure6:AC Terminal Block Wiring – European-style (Euroblock) Terminal Block for HIP Power Supplies
1.European-style (Euroblock) Terminal Block 2.Positive/Live (+/L) Terminal 3.Ground Terminal 4.Negative/Neutral (-/N) Terminal

Siemens RUGGEDCOM RX1501 Specifications

General

Layer	Layer 2
Ports	8x 10/100/1000Base-T(X) ports
Interfaces	Ethernet
Operating Temperature	-40°C to +75°C
Mounting	DIN Rail or Wall Mount
Protocol Support	IEEE 802.1Q VLAN, IEEE 802.1p QoS, IEEE 802.3x Flow Control, IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree
Management	Web-based, CLI, SNMP
Security	SSH, SSL, RADIUS, TACACS+, Port Security, MAC Filtering
Redundancy	RSTP, MSTP
Enclosure	Metal
Standards Compliance	IEC 61850-3, IEEE 1613
