Chapter 3
Device Management
RUGGEDCOM RX1501
Installation Guide
22 Configuring the Device
Pin Name Description
9 Reserved (Do Not Connect)
For information about how to connect to the device via the serial console port, refer to the RUGGEDCOM ROX II CLI
User Guide for the RUGGEDCOM RX1501.
For information about how to connect to the device via the management port, refer to either the RUGGEDCOM
ROX II Web Interface User Guide or the RUGGEDCOM ROX II CLI User Guide for the RUGGEDCOM RX1501.
The management port is a 10/100Base-TX copper Ethernet port with an RJ-45 connector. The following is the pin-
out for the management port:

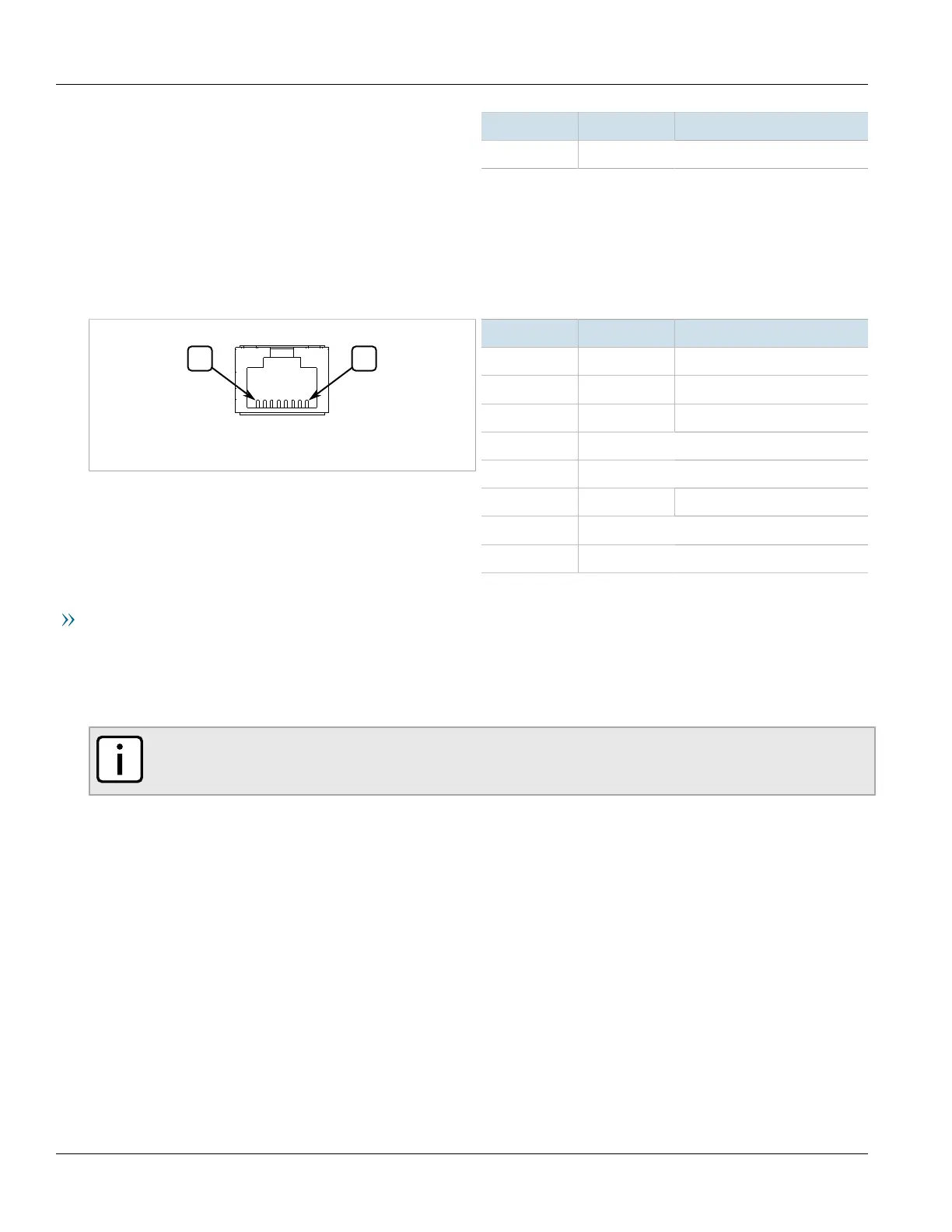

Figure17:RJ-45 Management Port
Pin Name Description
1 RX+ Receive Data+
2 RX- Receive Data-
3 TX+ Transmit Data+
4 Reserved (Do Not Connect)
5 Reserved (Do Not Connect)
6 TX- Transmit Data-
7 Reserved (Do Not Connect)
8 Reserved (Do Not Connect)
Communication Ports
Connect any of the available Ethernet ports on the device to a management switch and access the RUGGEDCOM
ROX II console and Web interfaces via the device's IP address. The factory default IP address for the RUGGEDCOM
RX1501 is https://192.168.0.2.
For more information about available ports, refer to Chapter4, Modules.
NOTE
Single-mode fiber ports only support Ultra Physical Contact (UPC) cable connectors.
Section3.2
Configuring the Device
Once the device is installed and connected to the network, it must be configured. All configuration management
is done via the RUGGEDCOM ROX II interface. For more information about configuring the device, refer to the
RUGGEDCOM ROX II User Guide associated with the installed software release.
