Siemens RUGGEDCOM RX1501 Installation Guide

RUGGEDCOM RX1501
Installation Guide
Chapter 4
Modules
Installing/Removing Line Modules 35
1
2
3

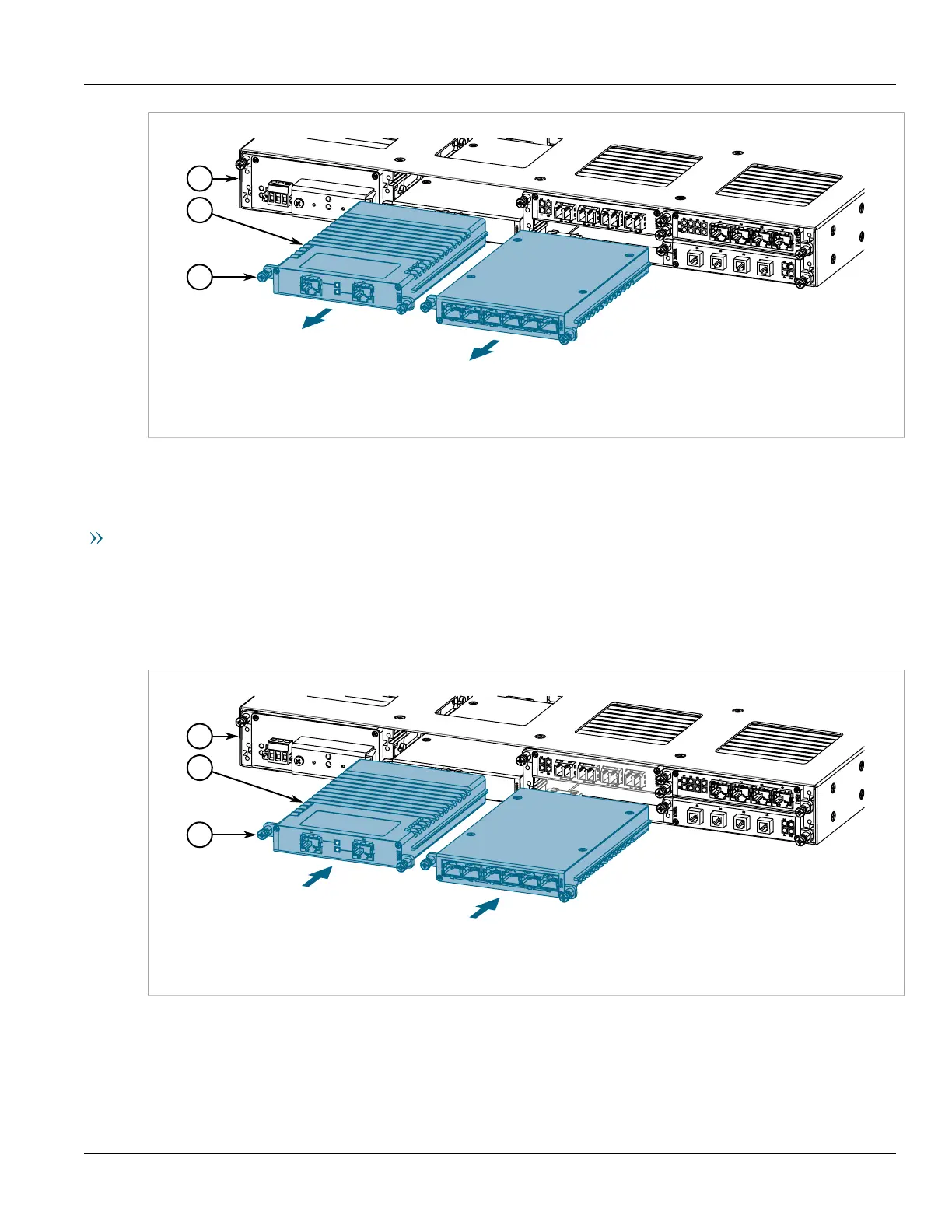

Figure21:Removing a Module
1.Module 2.Chassis 3.Screw
4. Install a new module or a blank module (to prevent the ingress of dust and dirt).
5. [Optional] If necessary, install the device in the rack.
Installing a Module
To install a line module, do the following:
1. [Optional] If the device is installed in a rack, remove it from the rack.
2. Remove the current module from the slot.
3. Insert the new module into the slot.
1
2
3
Figure22:Installing a Module
1.Module 2.Chassis 3.Screw
4. Tighten the screws to secure the module.
5. [Optional] If necessary, install the device in the rack.
