Siemens RUGGEDCOM RX1501 Installation Guide

RUGGEDCOM RX1501
Installation Guide
Chapter 4
Modules
Installing/Removing Power Modules 37
4. Disconnect the power supply wiring from the terminal block. Alternatively, for convenience, remove the
terminal block with the wiring still connected and set it aside to be connected later to the new module.
5. Install a new or blank module to prevent the ingress of dust and dirt.
Installing a Power Module
To install a power module, do the following:
1. If equipped, remove the existing module.
2. If applicable, connect the supplied terminal block to the module or connect the terminal block from the
previous module.
3. Confirm or connect the wiring from the power supply to the module. For more information, refer to
Section2.5, “Connecting Power”.
4. Insert the module into the empty slot.
3
2
1

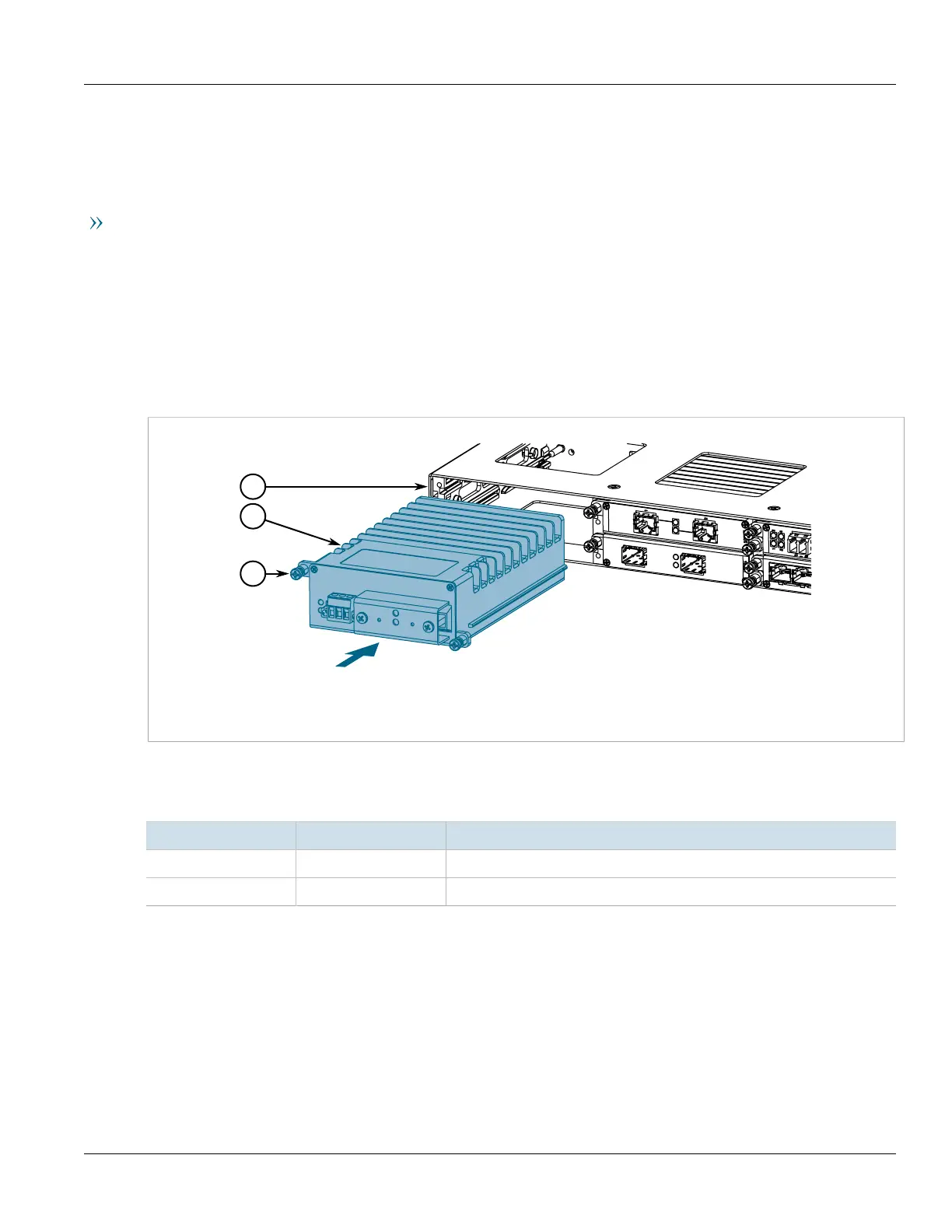

Figure25:Installing a Power Module
1.Chassis 2.Power Module 3.Screws
5. Hand-tighten the screws to secure the power module to the chassis.
6. Turn on power to the device and confirm the module is receiving and supplying power. This is indicated by
the LEDs on the module.
LED State Description
O Green The module is supplying power
I Green The module is receiving power

Siemens RUGGEDCOM RX1501 Specifications

General

Layer	Layer 2
Ports	8x 10/100/1000Base-T(X) ports
Interfaces	Ethernet
Operating Temperature	-40°C to +75°C
Mounting	DIN Rail or Wall Mount
Protocol Support	IEEE 802.1Q VLAN, IEEE 802.1p QoS, IEEE 802.3x Flow Control, IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree
Management	Web-based, CLI, SNMP
Security	SSH, SSL, RADIUS, TACACS+, Port Security, MAC Filtering
Redundancy	RSTP, MSTP
Enclosure	Metal
Standards Compliance	IEC 61850-3, IEEE 1613
