11.1 Product overview
Article number
6ES7193-6AG20-0AA0
View
Glass fiber-optic cable LC

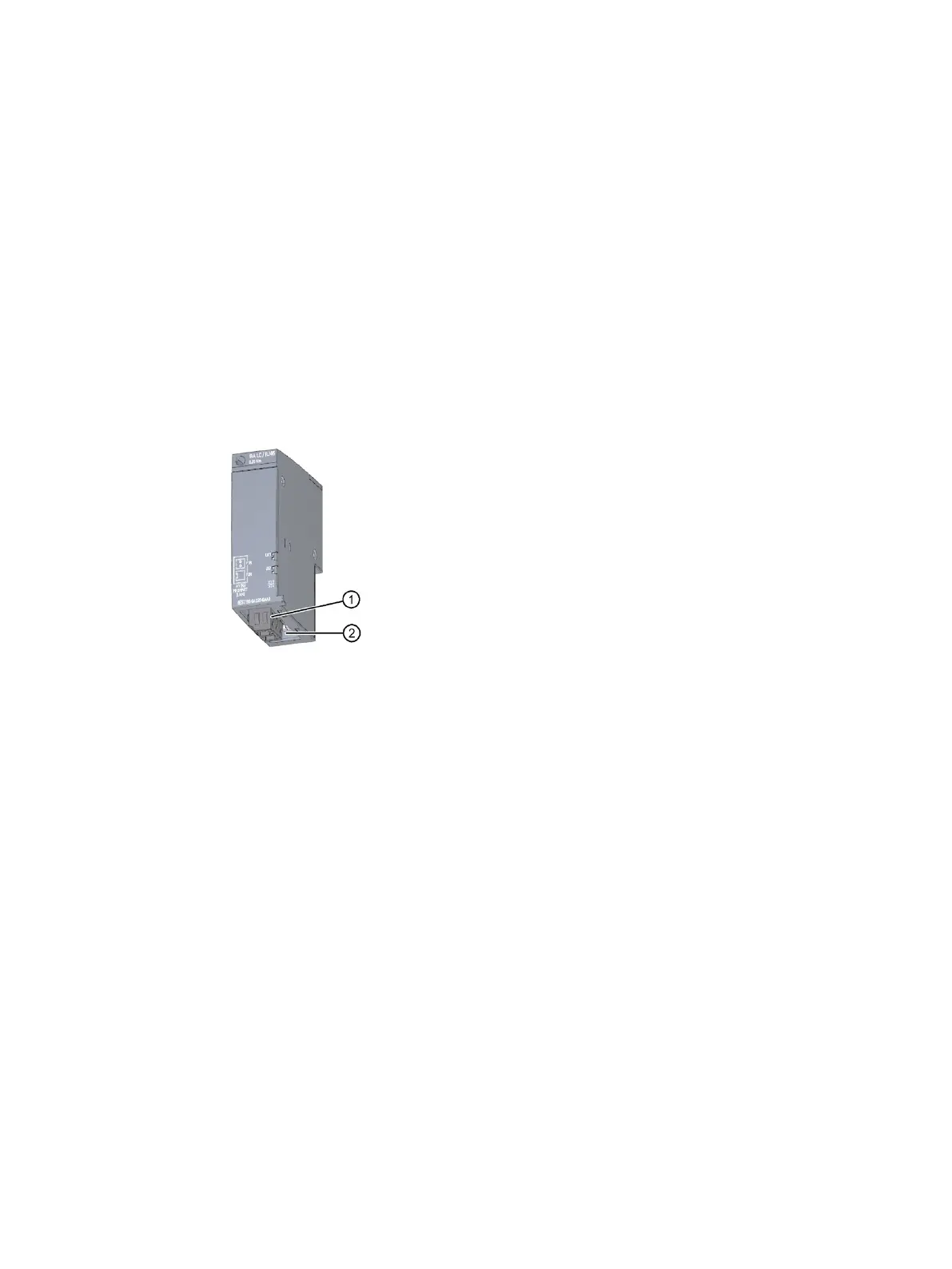

Figure 11-1 BusAdapter BA LC/RJ45
Properties
You connect PROFINET IO connection cables to the PROFINET device via the BusAdapter
BA LC/RJ45:
• Optically with glass fiber-optic cables with an LC connector to port 1
• Electrically with a standard RJ45 connector to port 2
To do this, screw the BusAdapter BA LC/RJ45 to the PROFINET device and plug in the LC
connector or the RJ45 connector.
You can loop through PROFINET IO via the integrated 2-port switch. You can use any port of
the BusAdapter for feeding or for looping through. The integrated media converter converts
the signals automatically.
