Strain relief
13.2 Installing
BusAdapter
72 Equipment Manual, 08/2020, A5E41449003-AB
13.2 Installing
Requirement
• The PROFINET cables are not inserted on the BusAdapter. The inserted PROFINET cables
hamper the mounting of the strain relief.
• BusAdapter and strain relief can be mounted separately.
Tools required
Screwdriver TX10 (torx).
Procedure
To install the strain relief, follow these steps:
1. Press the strain relief below the BusAdapter seat of the PROFINET device.

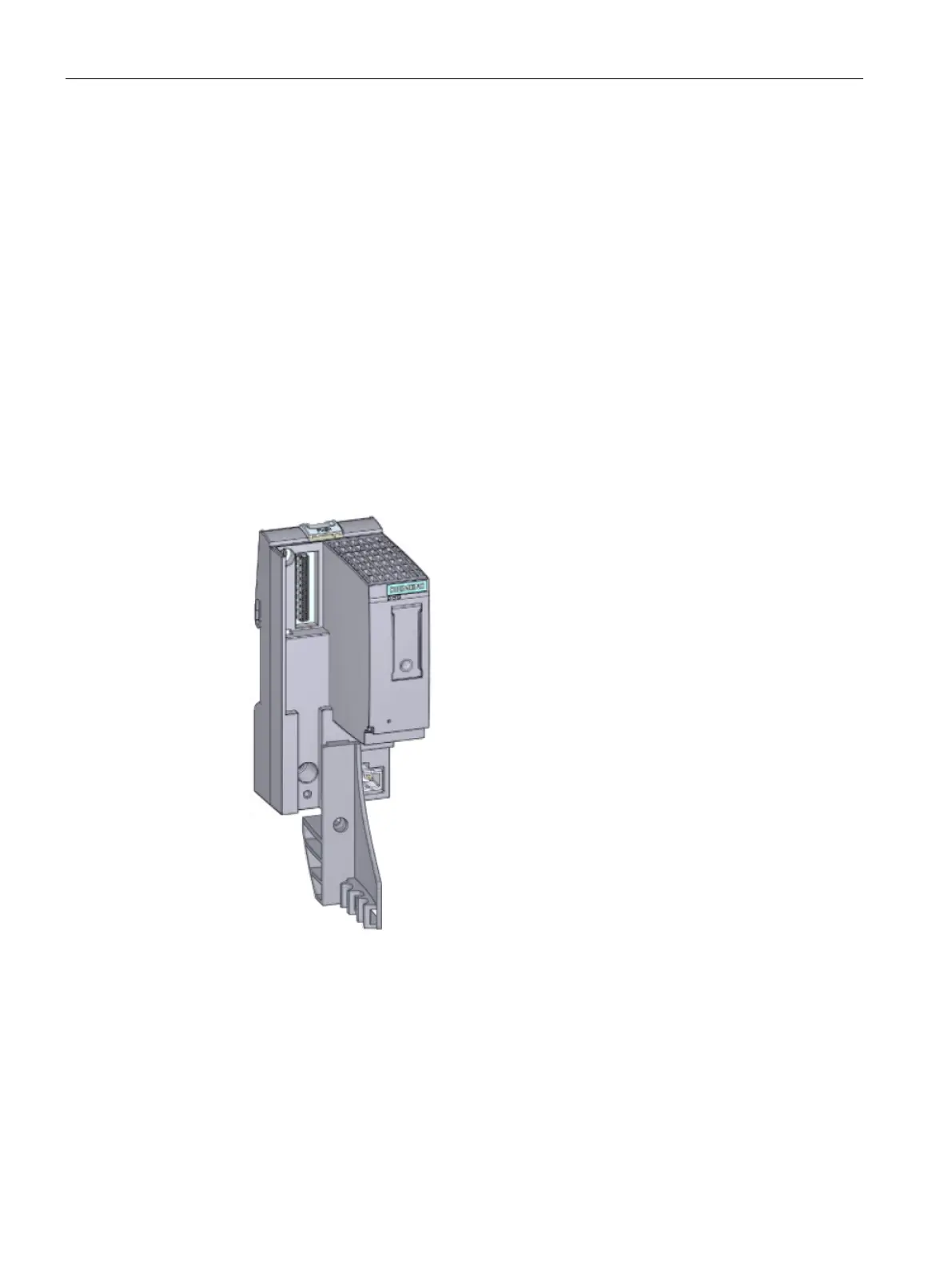

Figure 13-2 Strain relief before mounting
2. Fasten the strain relief (1 screw with 0.7 to 0.8 Nm tightening torque).
3. Plug the BusAdapter into the PROFINET device.
