Parameterizing the Mobile Panel
5.15 Functions for service and commissioning
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
145
Requirement
● There is a storage medium with sufficient free capacity in the HMI device.
● Data that must not be overwritten have been saved.
Procedure

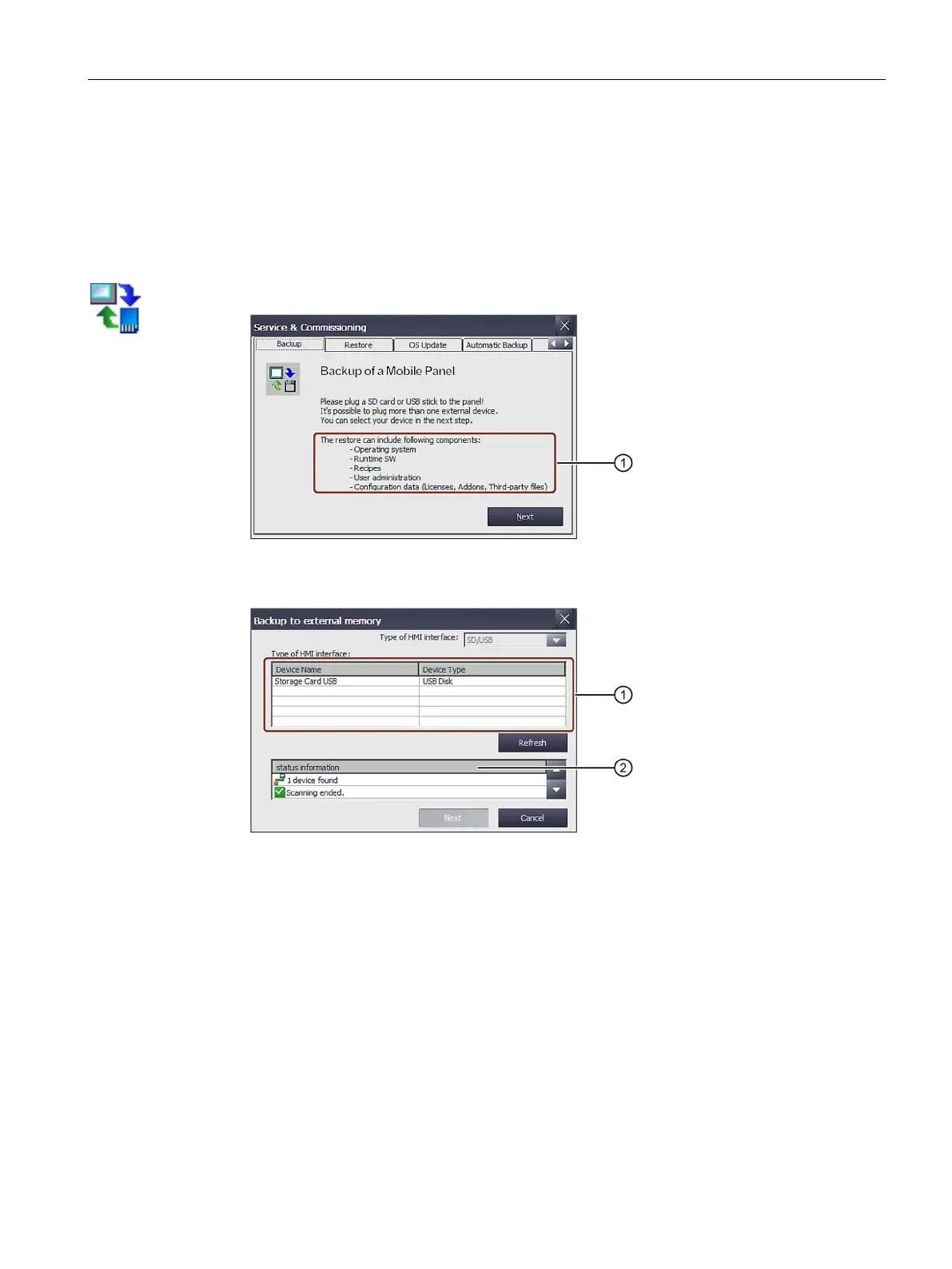

1. Open the "Service & Commissioning" dialog using the "Service & Commissioning" icon.
2. Press the "Next" button. The following dialog appears:
List of available storage media
Status information for the storage medium selected
The "0 devices found" message appears if there is no storage medium in the HMI device
or if it is defective. Insert a storage media or replace the storage medium.
3. Press the "Refresh" button.
The "Type of HMI interface" list is updated and the "status information" box contains
information about the selected storage medium. Note the memory capacity displayed.
4. Select a storage medium from the "Type of HMI interface" list.
