Technical specifications
11.7 Dimension drawings
Mobile Panels 2nd Generation
230 Operating Instructions, 09/2018, A5E33876626-AC

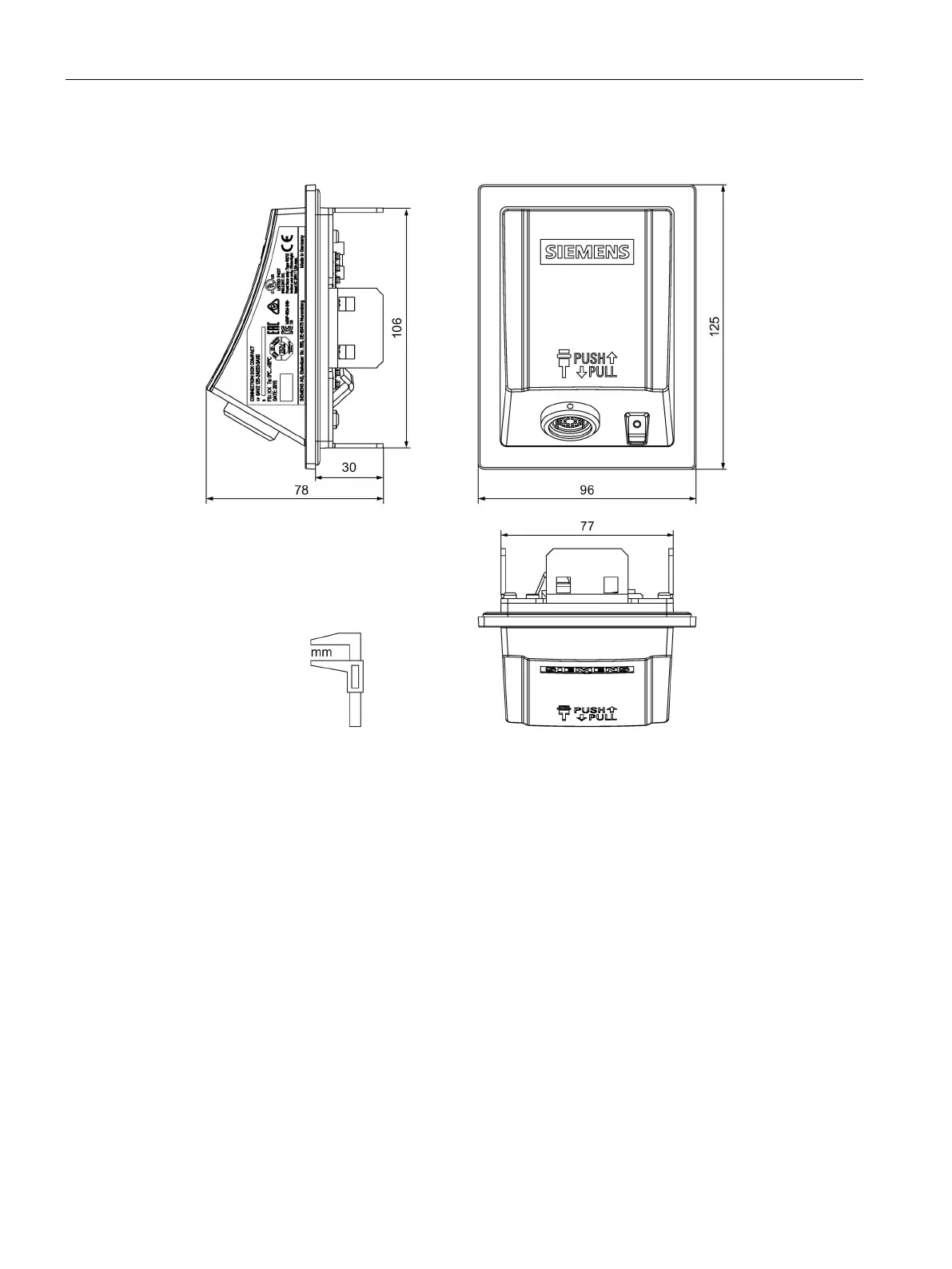

11.7.6
Connection box compact dimension drawing
