Installing system components
3.3 Installing the connection box standard and connection box advanced
Mobile Panels 2nd Generation
46 Operating Instructions, 09/2018, A5E33876626-AC

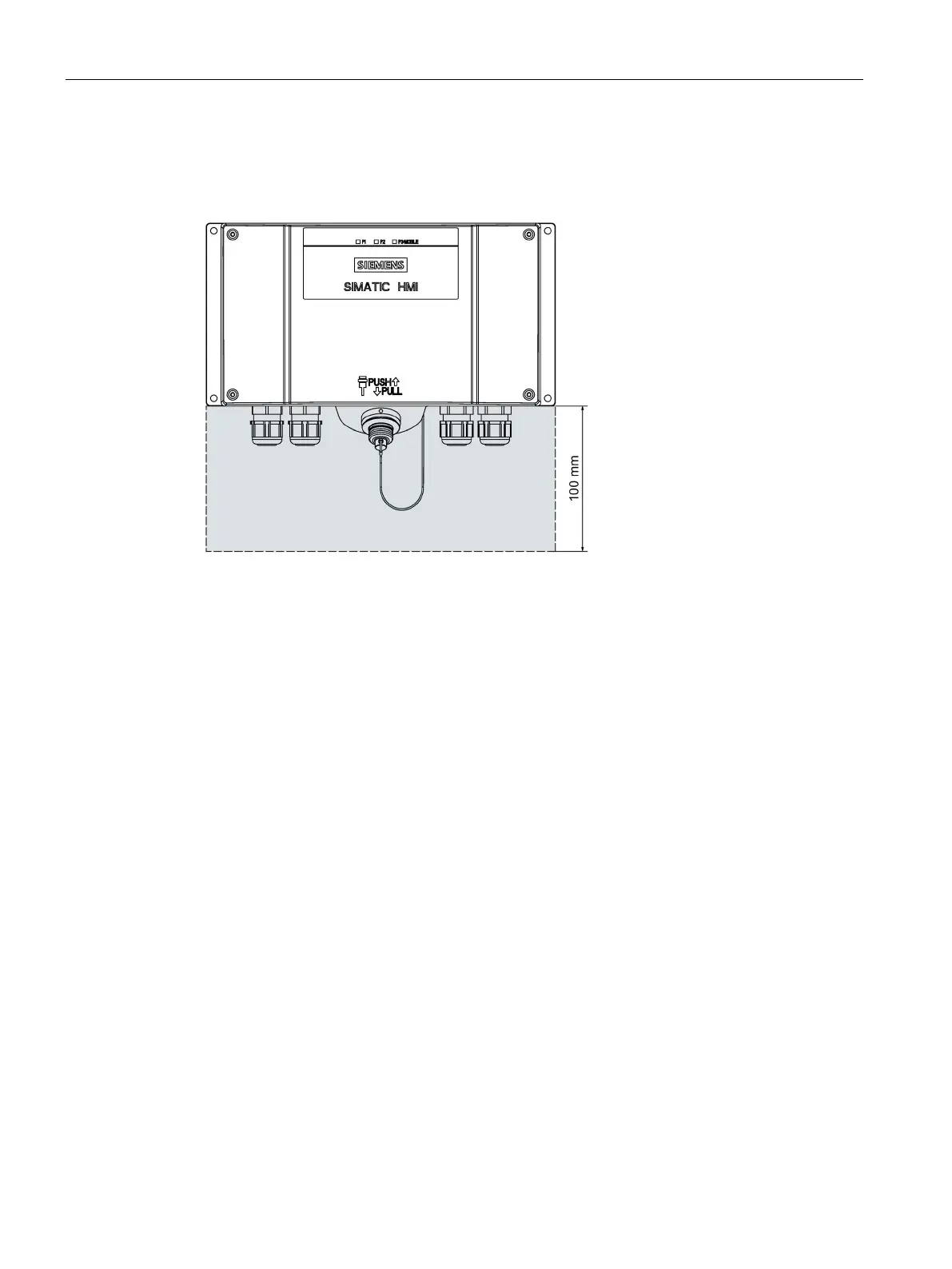

To ensure unhindered access to the interfaces, the clearance indicated in the figure below is
required:
Fastening the connection box standard and connection box advanced
This section describes the mounting of the Anschuss box standard and the connection box
advanced on a flat metal surface, such as a control cabinet wall.
● 4 M5 cylinder head screws
● 1 suitable screwdriver
In this example, the fastening described is outside of a control cabinet wall.
1. Hold the connection box on the area where you want to mount it.
2. Mark locations for the mounting holes.
3. Drill holes or threaded holes for the 4 cylinder head screws according to your
requirements.
4. Attach the connection box.
Dimension drawing for connection box standard and connection box advanced (Page 231)
