Installing
4.2 Technical data of the telescopic rails
SIMATIC IPC647C
20 Getting Started, 12/2010, A5E02669344-02
You can mount the device as follows:
● Mounting on cabinet brackets
● Mounting on device bases
● Mounting on telescopic rails
When telescopic rails are used for mounting, the device can be withdrawn fully from the
cabinet or rack.
For more detailed information on telescopic rails, refer to the sections Technical data of
the telescopi
c rails (Page 20) and Dimensional drawing for the use of teles
copic rails
(Page 36).

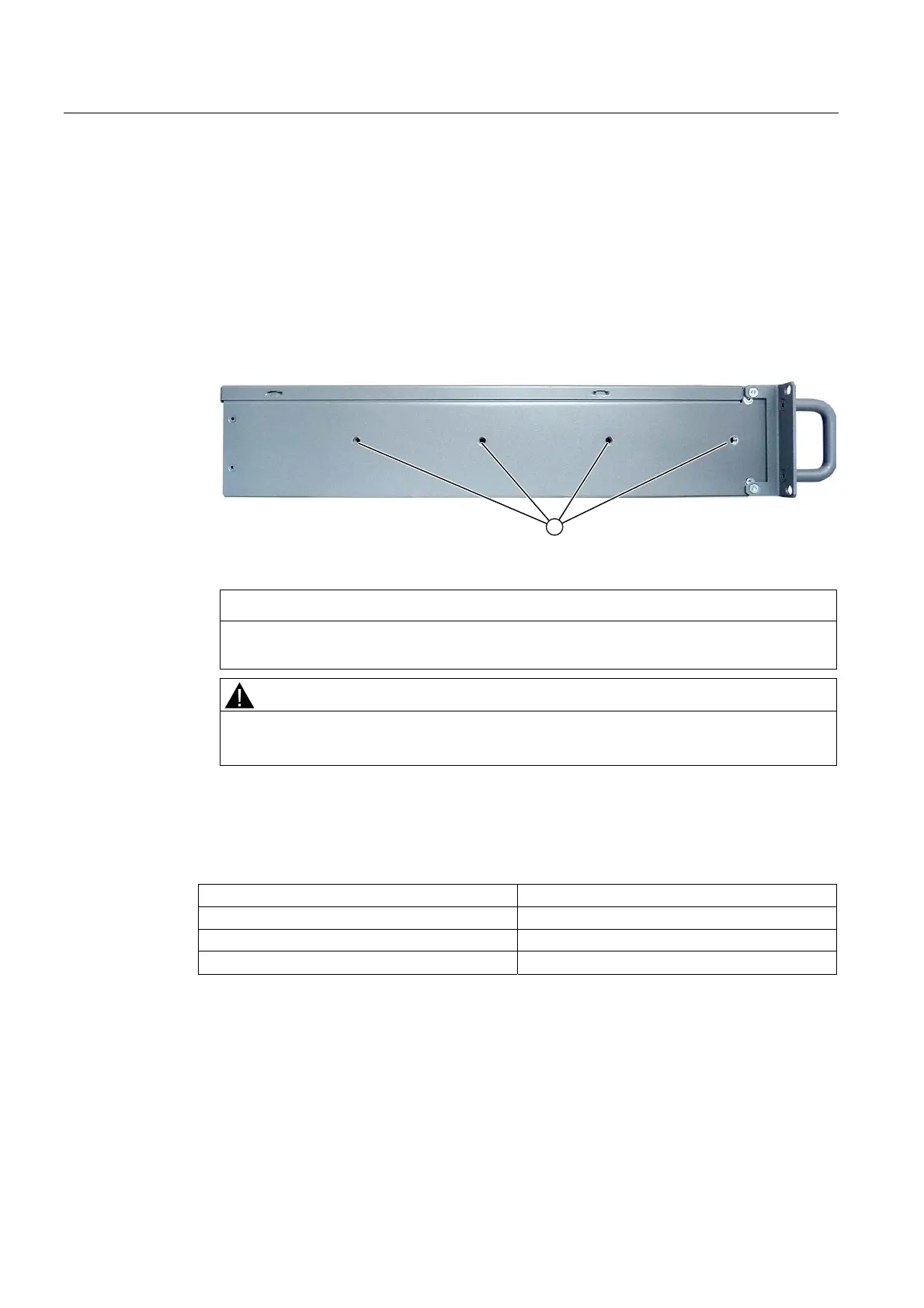

Figure 4-1 Position of the mounting holes ①
CAUTION
The mounting screws of the telescopic rails may not protrude more than 5 mm into the
enclosure.
CAUTION
Risk of injury!
It is not permitted to install the device only on the 19-inch brackets of the front panel.
4.2 Technical data of the telescopic rails
Ultimate load per pair At least 14 kg
Full extraction length At least 470 mm
Rail thickness Maximum 9.7 mm
Mounting screws M5 x 6 mm
