Connecting
5.3 Equipotential bonding
SIMATIC IPC647C
Getting Started, 12/2010, A5E02669344-02
25
5.3 Equipotential bonding
A low-impedance ground connection improves the discharge of interference generated by
external power cables, signal cables or cables for I/O modules to ground.
Equipotential bonding terminal

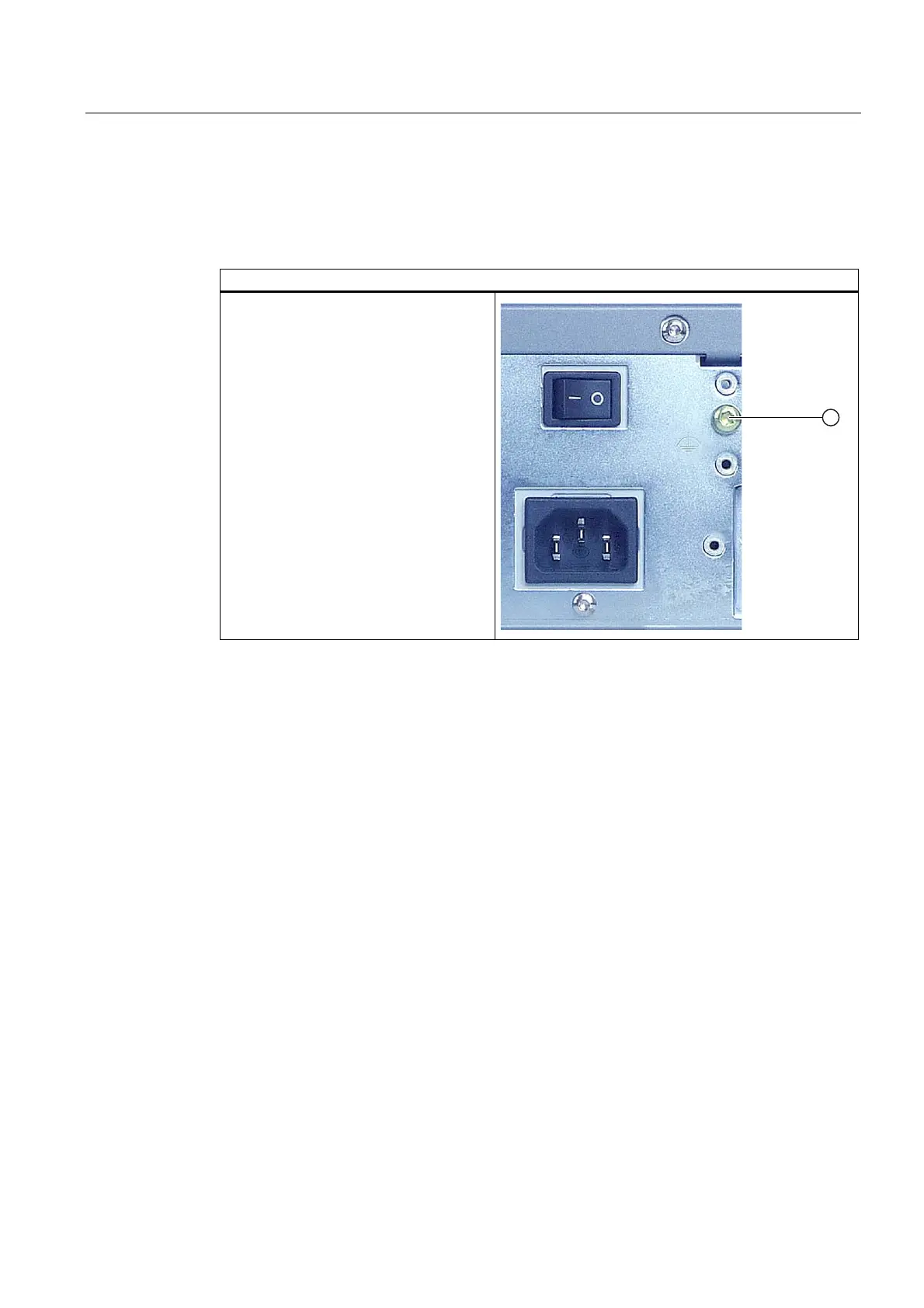

The equipotential bonding terminal ① on
the device (large surface, large-area
contact) must be connected with the
central grounding busbar of the cabinet or
plant in which the PC is to be installed.
The minimum conductor cross-section
may not be less than 5 mm
2
.
5.4 Connecting the strain relief for network cables
The strain relief provided in the scope of delivery is used to prevent accidental loosening of
the network cable from the device. One cable tie (not included in the package) is required for
each interface.
To fix the strain relief, you will need a TORX T10 screwdriver.
To fix the PROFINET strain relief, you will need a TORX T10 screwdriver.
