Description
3.3 Installation
1MB..1/2/3/4 - shaft heights 63 ... 355
26 Operating Instructions, 06/2020, A5E44455710A
3.3.6 Types of construction/method of installation
The type of construction of the machine is stated on the rating plate.

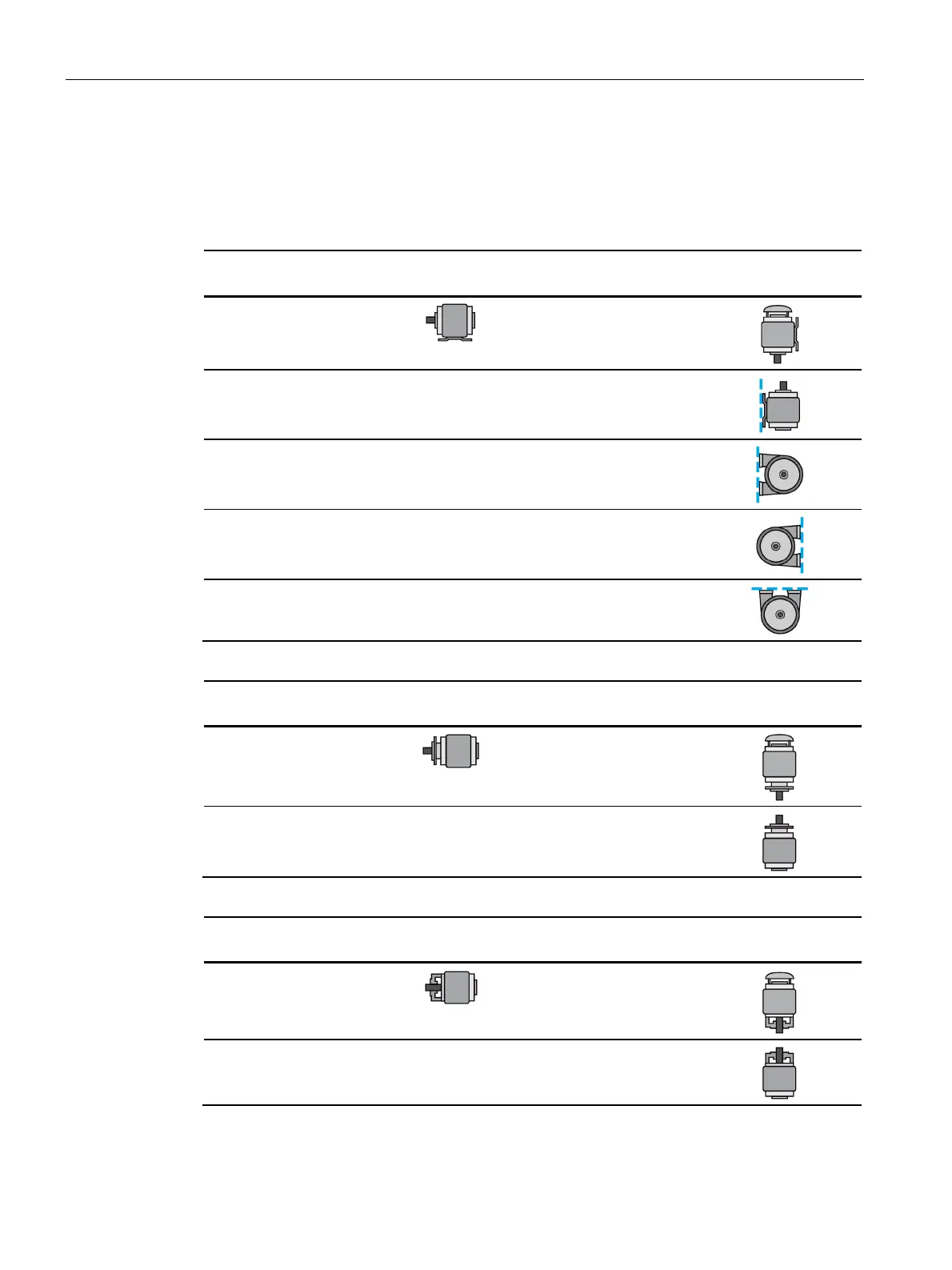

Table 3- 3 Type of construction
Basic type of construc-
tion code
Diagram
Other methods of in-
stallation
Diagram
IM B3 (IM 1001)
IM V5 (IM 1011)
IM V6 (IM 1031)
IM B6 (IM 1051)
IM B7 (IM 1061)
IM B8 (IM 1071)
Basic type of construc-
tion code
Diagram
Other methods of in-
stallation
Diagram
IM B5 (IM 3001)
IM V1 (IM 3011)
IM V3 (IM 3031)
Basic type of construc-
tion code
Diagram
Other methods of in-
stallation
Diagram
IM B14 (IM 3601)
IM V18 (IM 3611)
IM V19 (IM 3631)
