Electrical connection
6.1 Connecting the machine
1MB..1/2/3/4 - shaft heights 63 ... 355
Operating Instructions, 06/2020, A5E44455710A
77

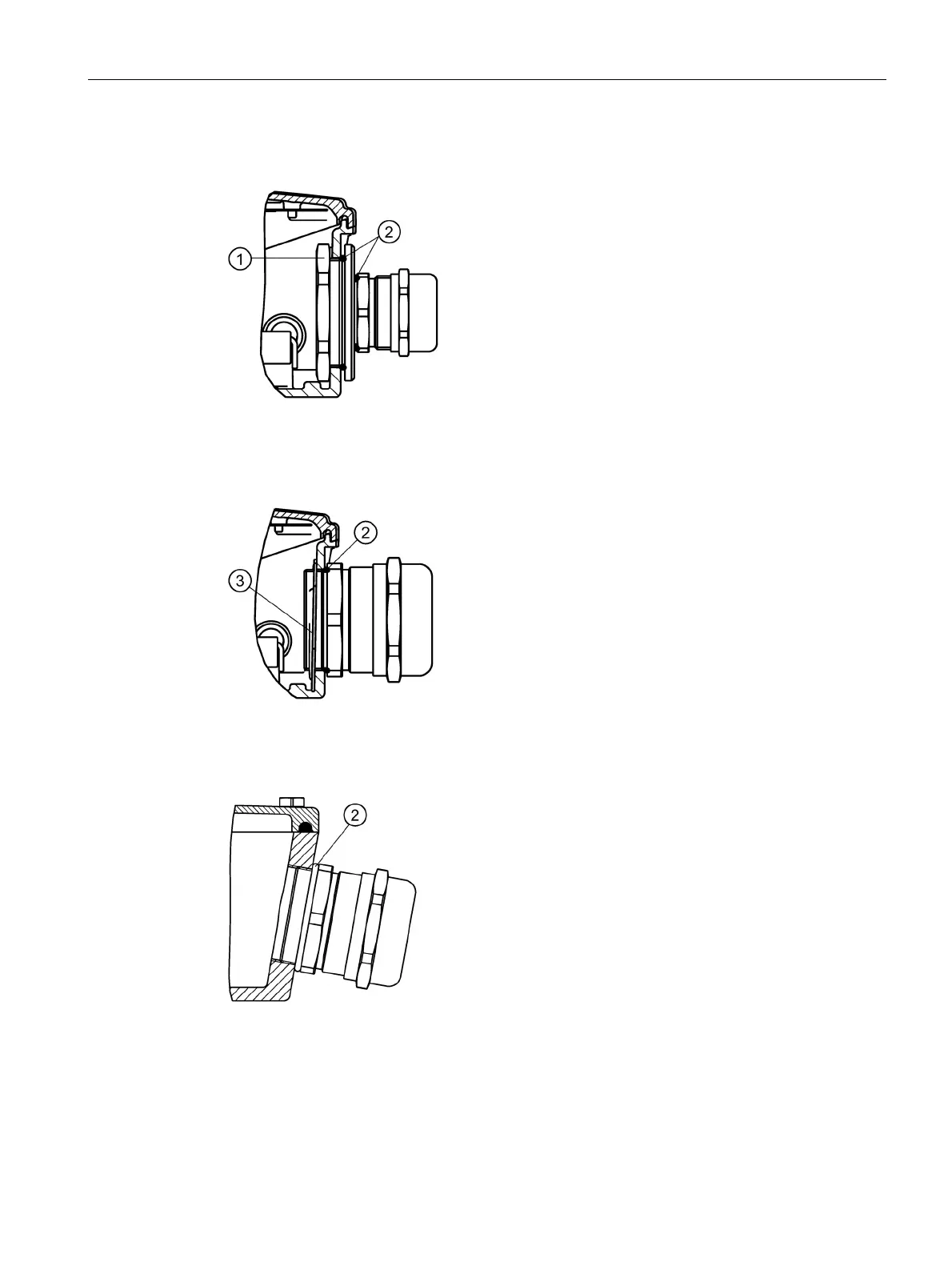

Cable glands with reductions and (sheet metal) nuts (EN 50262)
①
②
Nut
O ring
6.1.2.1 Mounting position of sheet metal nuts in screw-type connections
②
③
O ring
Mounting position of metal
-sheet
nuts
Cable glands with connecting thread in the terminal box (EN 50262)
②
O ring
