Siemens SINEC L2 User Manual

S5-95U, SINEC L2 System Description
Standard connection (SC)
To be recommended only if existing programs are to be ported from SINEC L1 to SINEC L2.

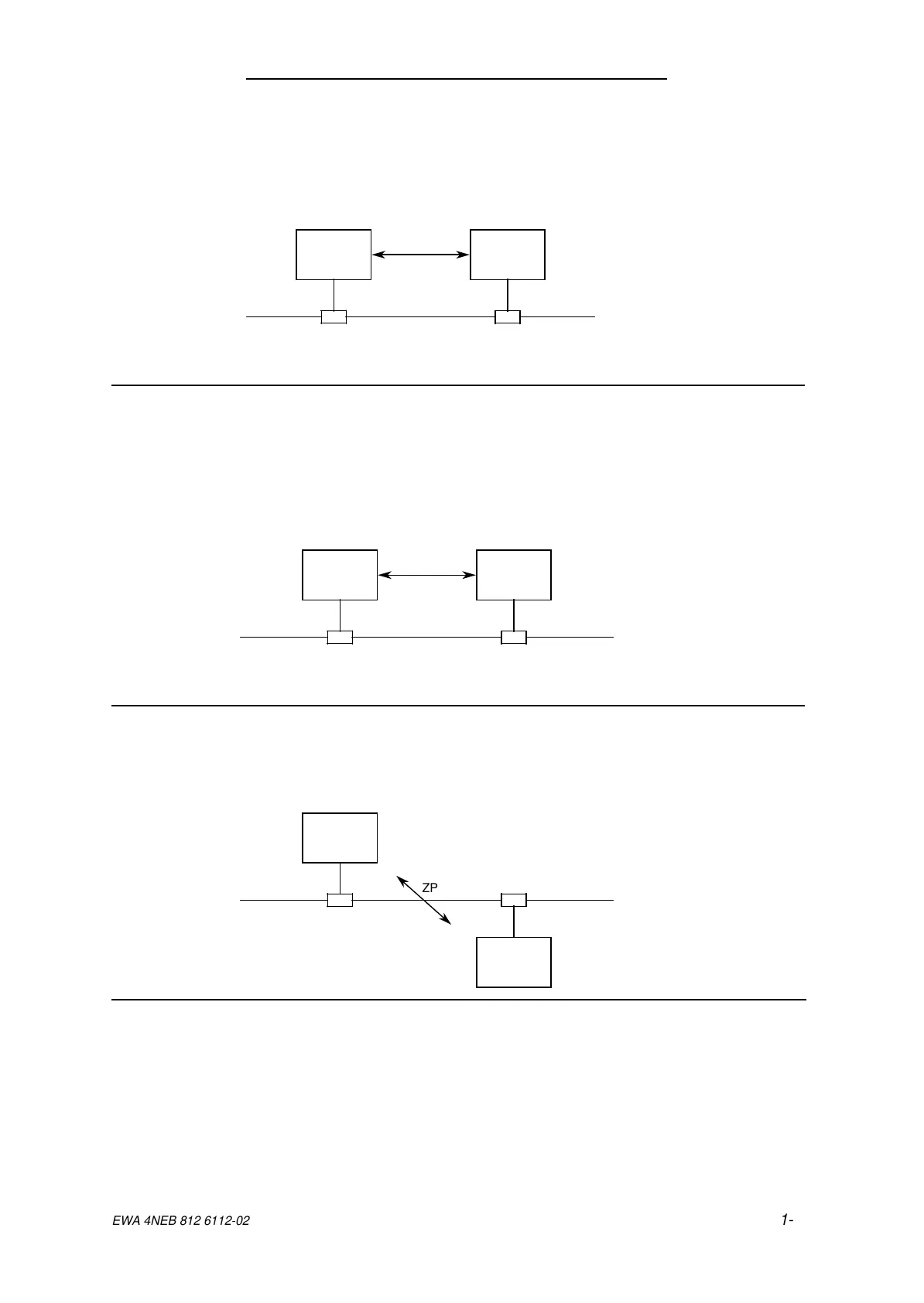

Figure 1-10. Standard Connection for Porting Programs from SINEC L1 to SINEC L2
Active
stations
Bus
Passive
stations
S5-95U S5-95U
SC
2. Communications between an S5-95U and a Device of Other Manufacture
(station that is not an S5-95U)
PLC-to-PLC connection
Figure 1-11. PLC-to-PLC Connection between an Active CP 5430 and an Active S5-95U
Active
stations
Bus
Passive
stations
CP 5430 S5-95U
PLC-PLC
Cyclic I/O (ZP)
Figure 1-12. Cyclic I/O between an Active CP 5430 and a Passive S5-95U
Active
stations
Bus
Passive
stations
CP 5430
S5-95U
a a a a a a
a
a a a a
a
a
a a a a
a
a a a a a a
ZP
EWA 4NEB 812 6112-02 1-19
