Start-Up, Tests, and Diagnostics S5-95U, SINEC L2
3.3.2 Prerequisites for Starting Up the S5-95U as a SINEC L2 Station
We assume that the S5-95U is to be connected as a station to an already existing SINEC L2
local area network.
Minimum hardware requirement:
• One S5-95U programmable controller
• One EPROM/EEPROM memory submodule or a back-up battery
• One bus connector or one bus terminal
• One programmer with monitor
Figure 3-5 shows the location of the connectors on the S5-95U.

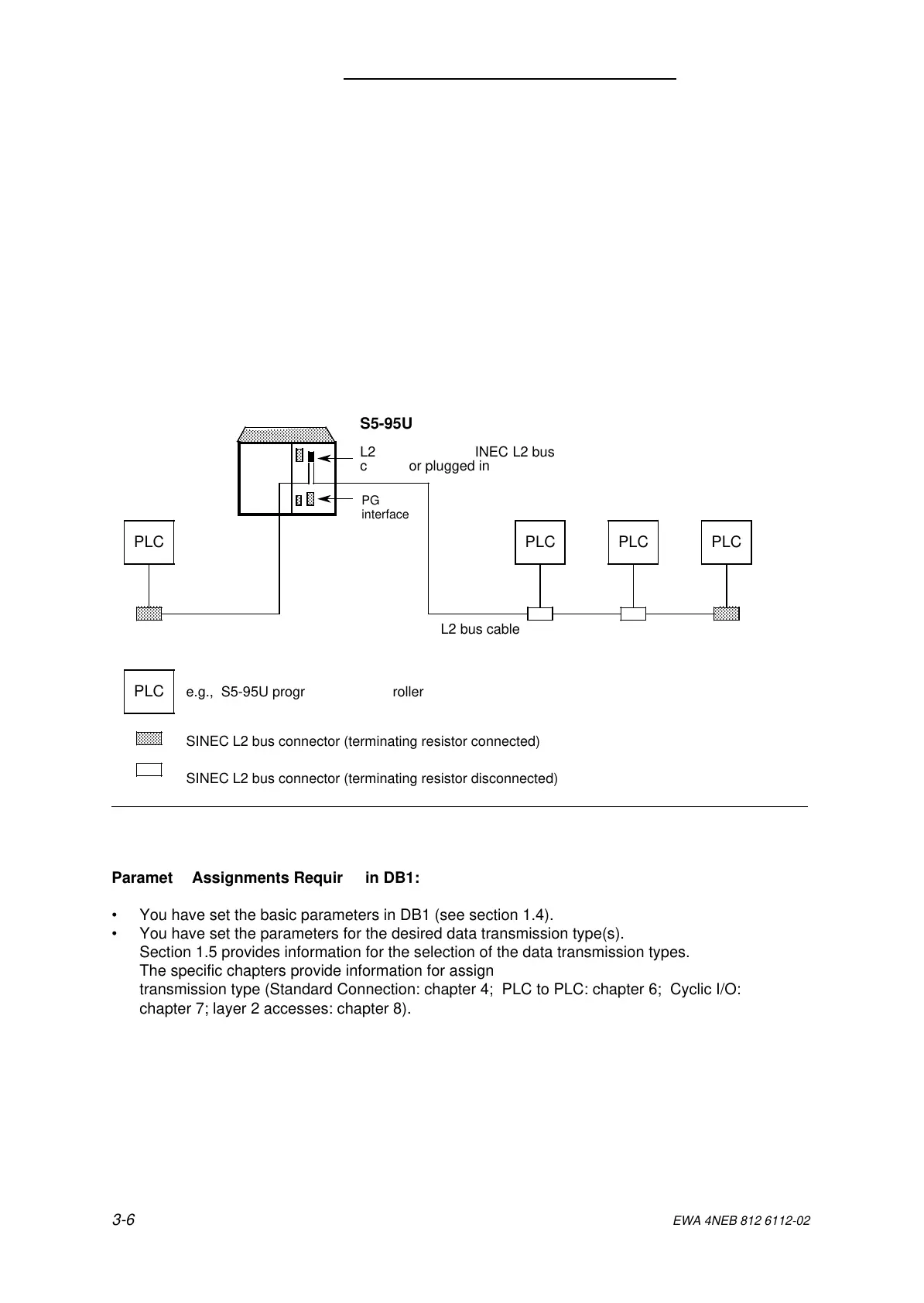

Figure 3-5. Connecting the L2 Interface of the S5-95U to the Local Area Network
