Installation Guidelines S5-95U, SINEC L2
2.3.3 Connecting Bus Segments
This section explains how you connect bus segments to the L2 repeater. Note that you must
terminate a segment at both ends (i.e., when the terminators are connected, the bus is terminated).
Repeater at Segment End

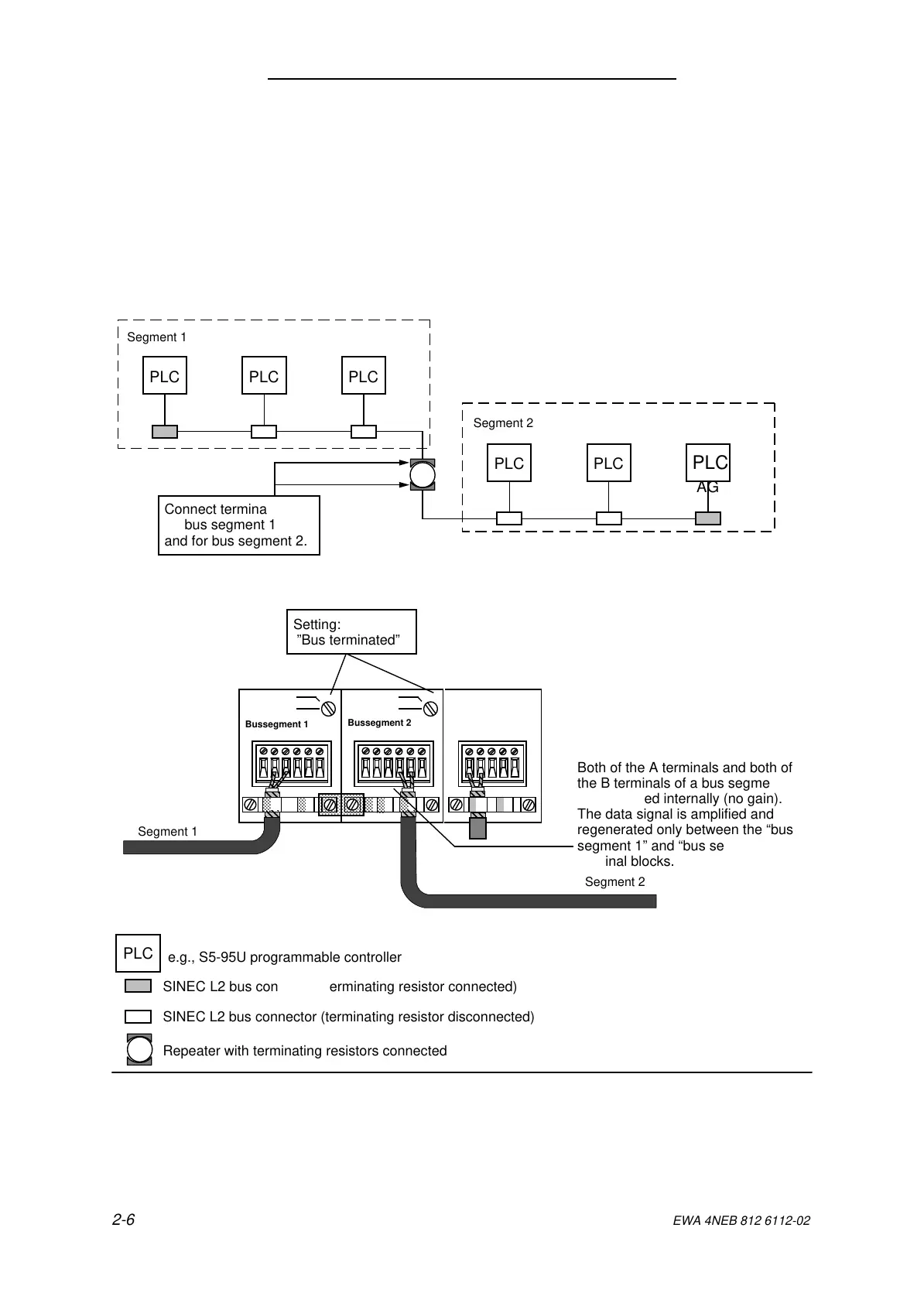

Figure 2-7 shows the connection of two segments to a repeater.
Figure 2-7. Connecting Two Bus Segments to Screw-Type Terminals of the L2 Repeater (1)
