3 Operating Sequences 09.91
3.1.8 Axis synchronization
Case 1: The tool system 1 axis and the tool system 2 axis have the same offset. Both axes
are traversed synchronously after you have pressed the traverse key for the leading
axis (tool system 1).
Case 2. The tool system 1 axis and the tool system 2 axis have different offsets. You can
only eliminate offsets by traversing the axes separately. Press the appropriate

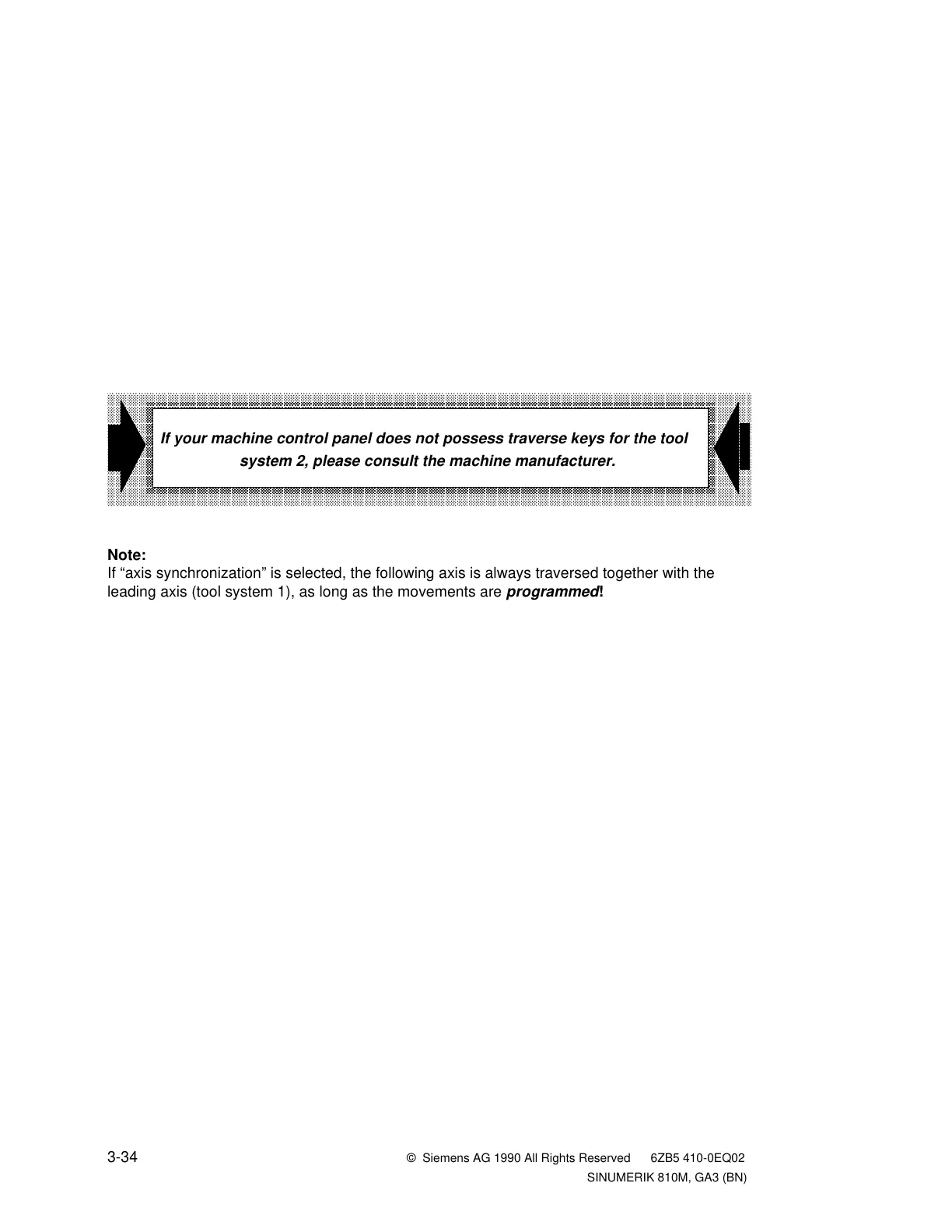

traverse keys on the machine control panel (see the note in the box on this page!).
Case 3: Press “NC start” and the offsets are eliminated simultaneously on all axes.
By offsets we mean all additional differences in axial position between the machine zero and
the workpiece zero, which are not contained in the position instructions of the part program.
The following four offsets exist separately for the leading and the following axes:
– settable ZO G54-G57
– external ZO
– DRF offset
– PRESET offset.
